Soldered breakout USB-C socket
Code: LA150039
Free Shipping
From 100 EUR
30 Days to Return
For Registered
30 Days to Return
For Registered Customers
Free Shipping
For orders from 100 EUR
Customer Care
We handle complaints within 5 days
Quick dispatch
Within 24 hours
Product detailed description

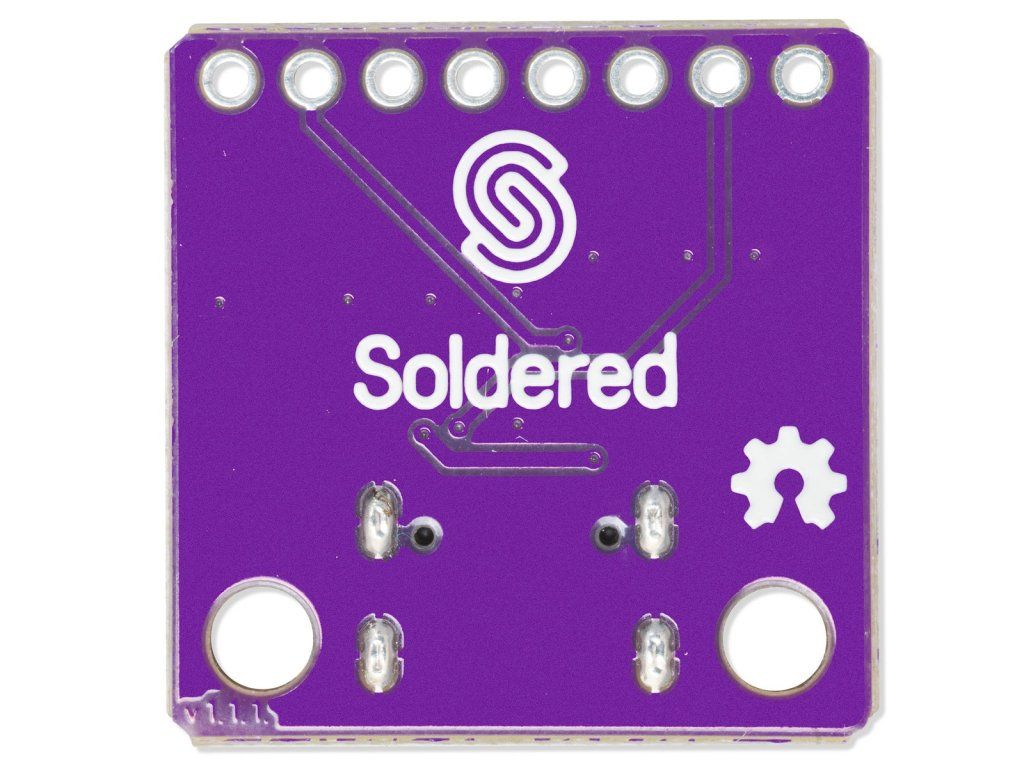

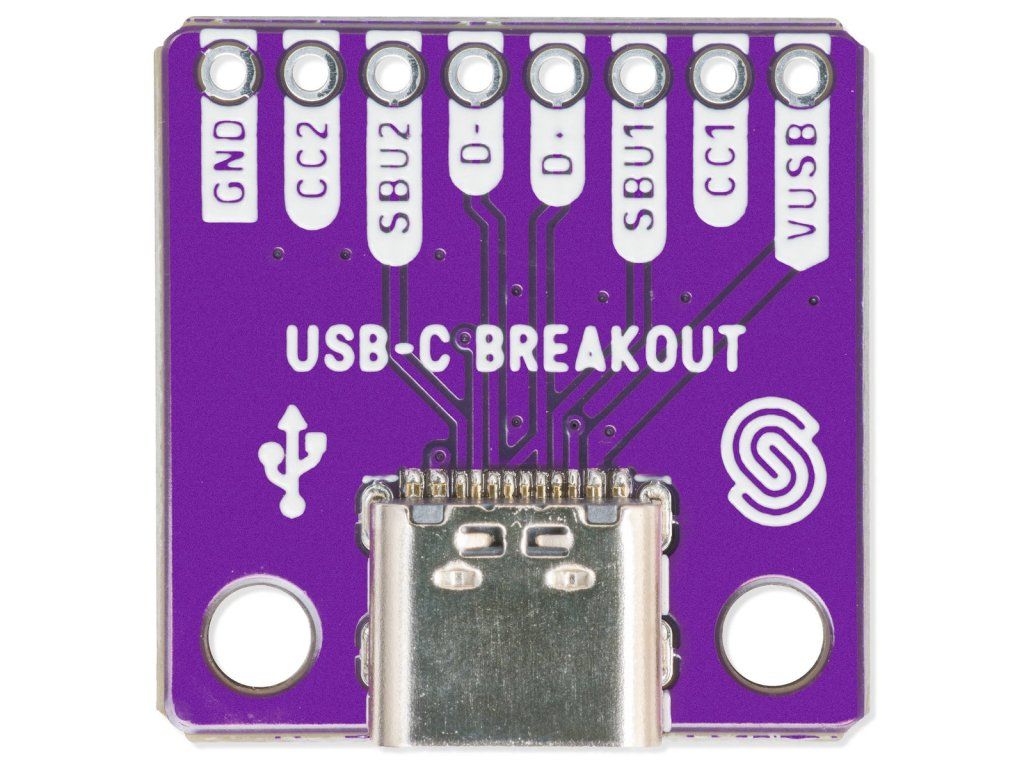

The breakout board makes the pins of the USB-C connector (female) available on a header, allowing you to easily integrate this modern connector into your own mechanical keyboard, embedded system, smart home setup, or portable gadget. When used with a compatible controller, it also supports Power Delivery (PD) for more demanding applications. The compact board features two mounting holes for easy attachment.
Specifications:
- Connector: USB Type-C (female)
- Outputs: power and data pins on a header
- PD Support: yes, with an external PD controller
- Mounting Holes: 2
- Dimensions: 22 × 22 mm
- Manufacturer: Soldered Electronics, made in EU

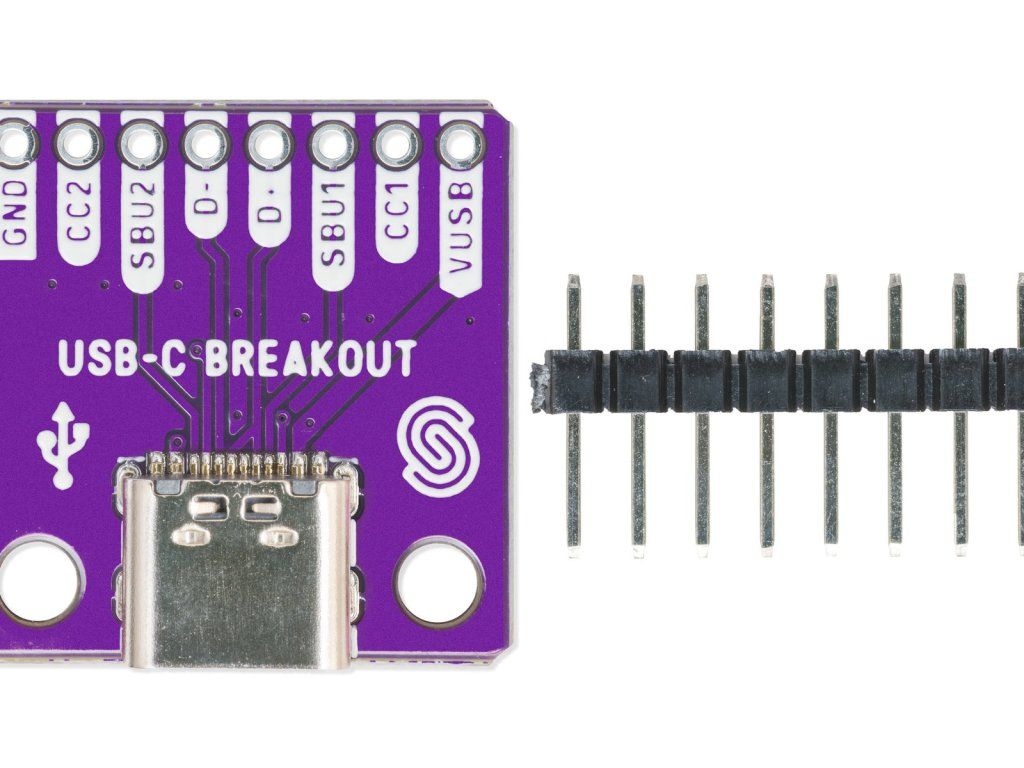

Package contents:
- 1× USB-C female breakout
- 1× header pins
Note:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
Additional parameters
| Category: | PCB & DIP Adapters |
|---|---|
| Warranty: | 24 |
| Weight: | 0.005 kg |
| EAN: | 732388675302 |
