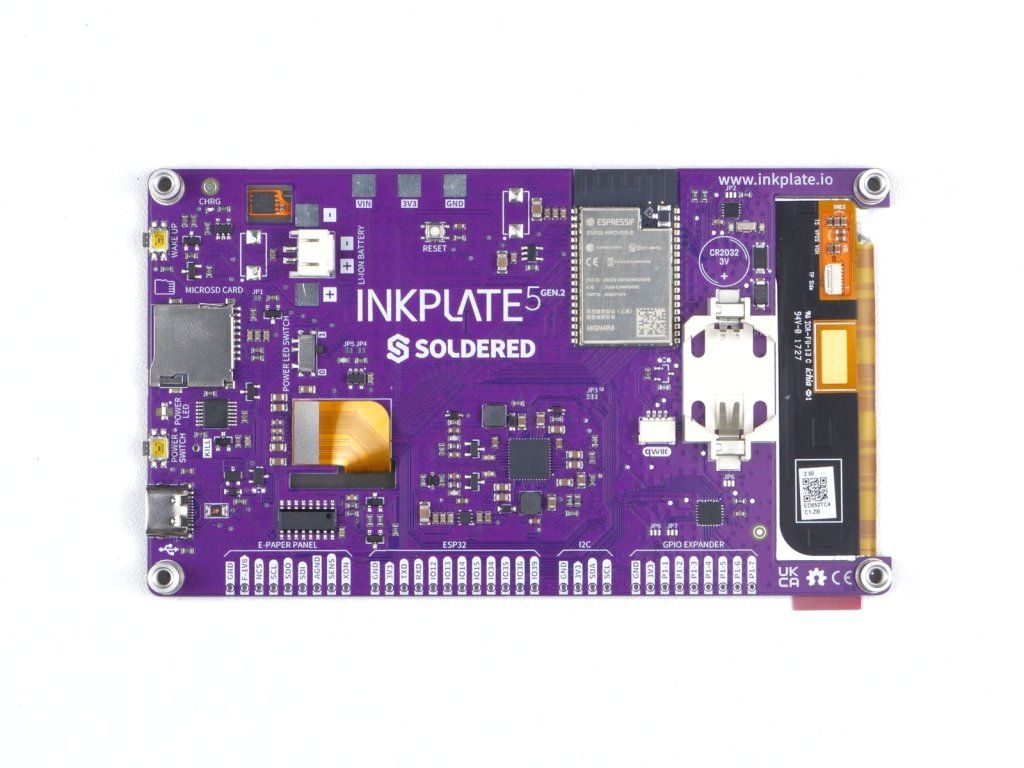

Soldered Inkplate 5 Gen2 – 5,2″ E-Paper Display with ESP32

Product detailed description

Inkplate 5 Gen2 is a versatile development board featuring a recycled 5.2″ E-Ink display with grayscale support, partial refresh, and a lightning-fast response time of 0.22 s. Powered by an ESP32 with WiFi and Bluetooth, it allows you to easily create wirelessly updated displays, weather stations, or information panels. Thanks to its extremely low power consumption – just 18 µA in deep sleep – it can run for months on a single Li-Ion battery charge. Fully open-source and programmable in Arduino IDE and MicroPython.

Specifications:

• Display: 5.2″ e-paper, 720 × 1280 px, grayscale, partial refresh
• Refresh Rate: 0.22 s
• Microcontroller: ESP32 (WiFi + Bluetooth 4.0 BLE)
• Deep Sleep Consumption: 18 µA
• Power Supply: USB-C or Li-Ion battery (integrated charger)
• Storage: microSD card slot
• RTC: real-time clock
• Expansion: GPIO, I²C, SPI, uSupply/Qwiic/easyC
• Programming: Arduino, MicroPython

Package contents:

• 1× Inkplate 5 Gen2
• 1× USB-C to USB-C cable

Note:

• The display is recycled
• The battery is not included.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
