Generator kit with XR2206 and box

Product detailed description

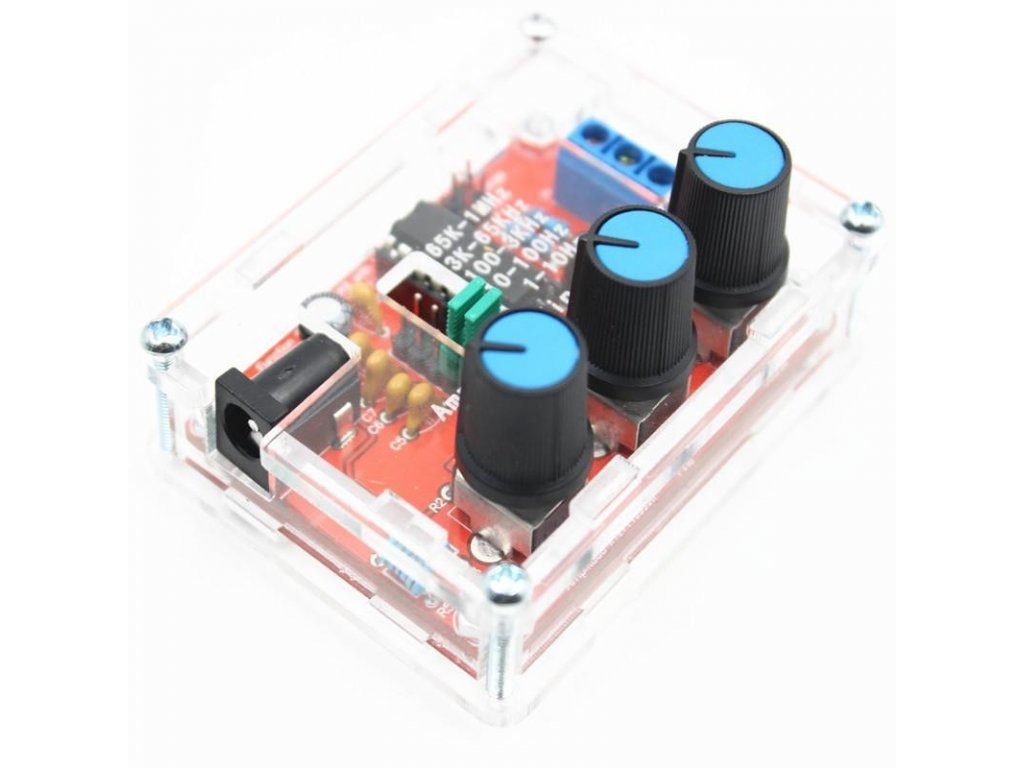

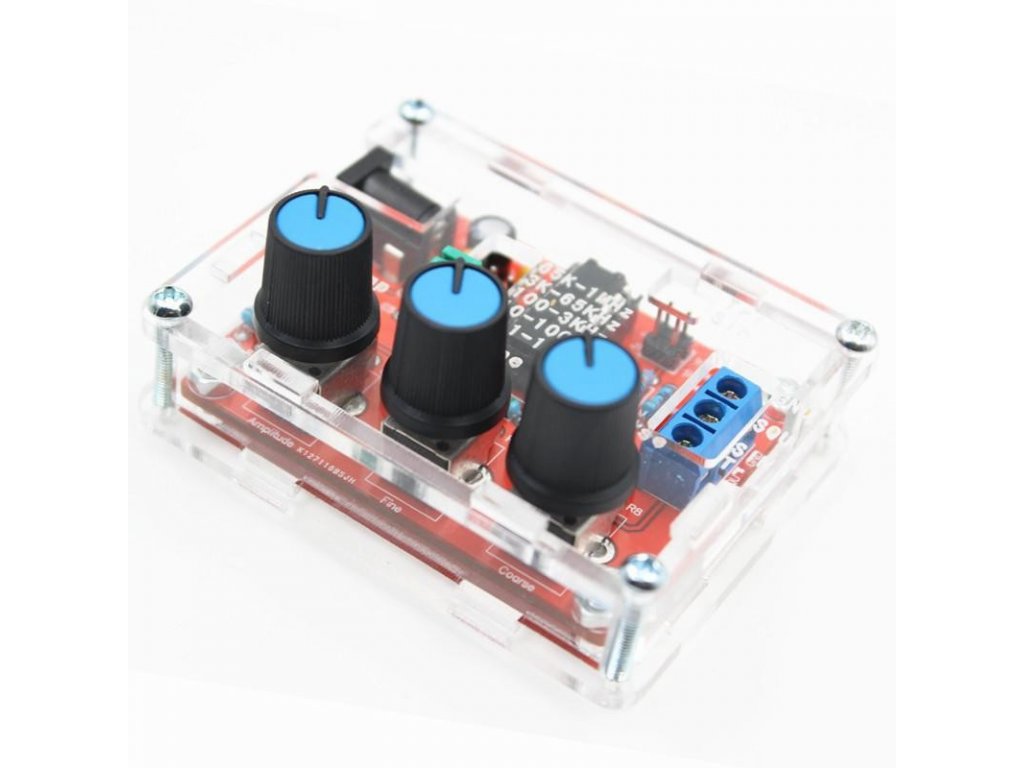

Kit of oscillator - oscillator that provides output signal of sinusoidal, rectangular and triangular waveform.

It's a great tool for setting up and repairing various audio equipment - amplifiers, preamplifiers, bandpass filters, etc.

The kit is relatively simple and therefore suitable for beginners. Power supply 9-12V, range approx. 1 Hz - 1MHz in five subranges, frequency adjustment by potentiometer.

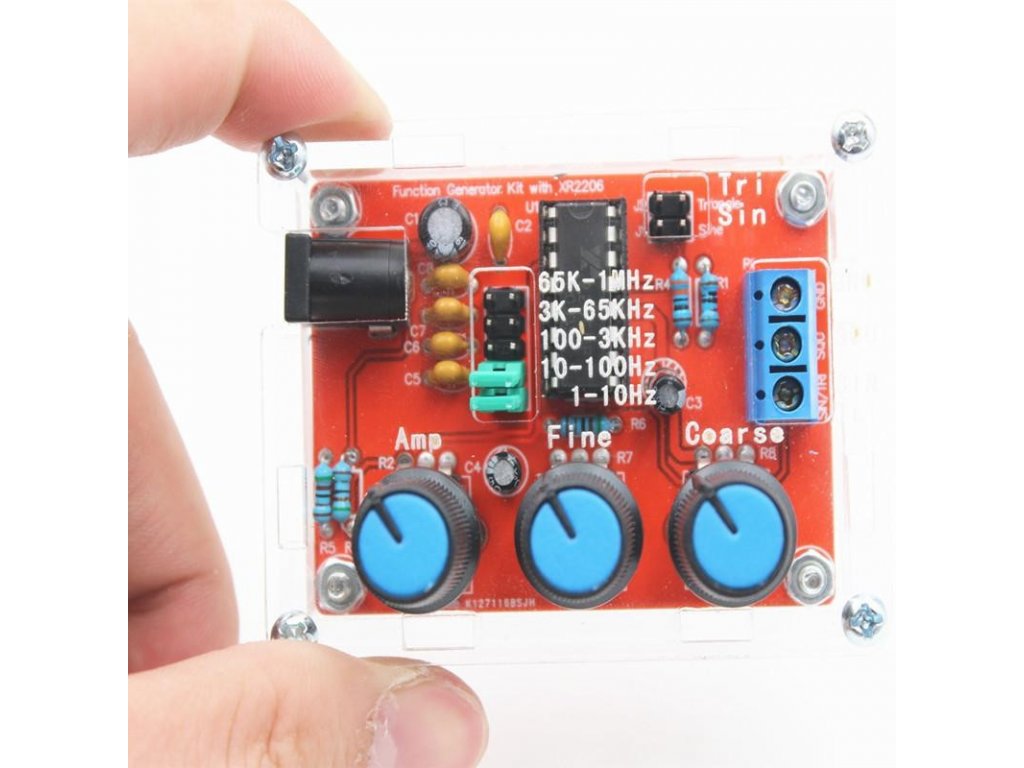

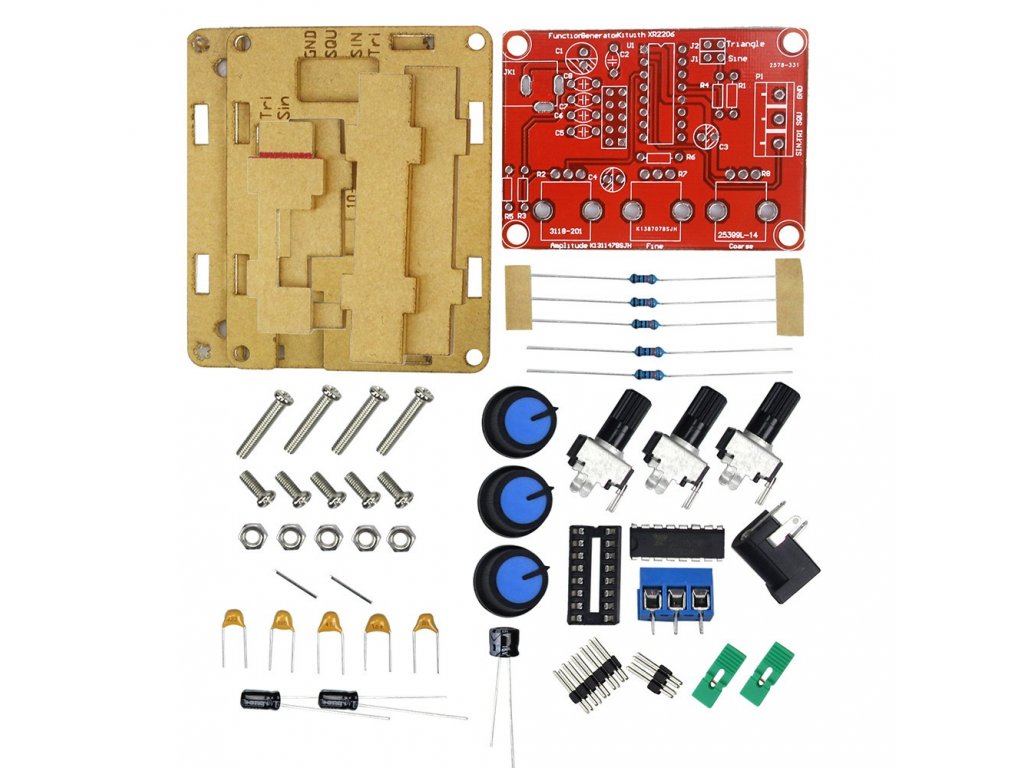

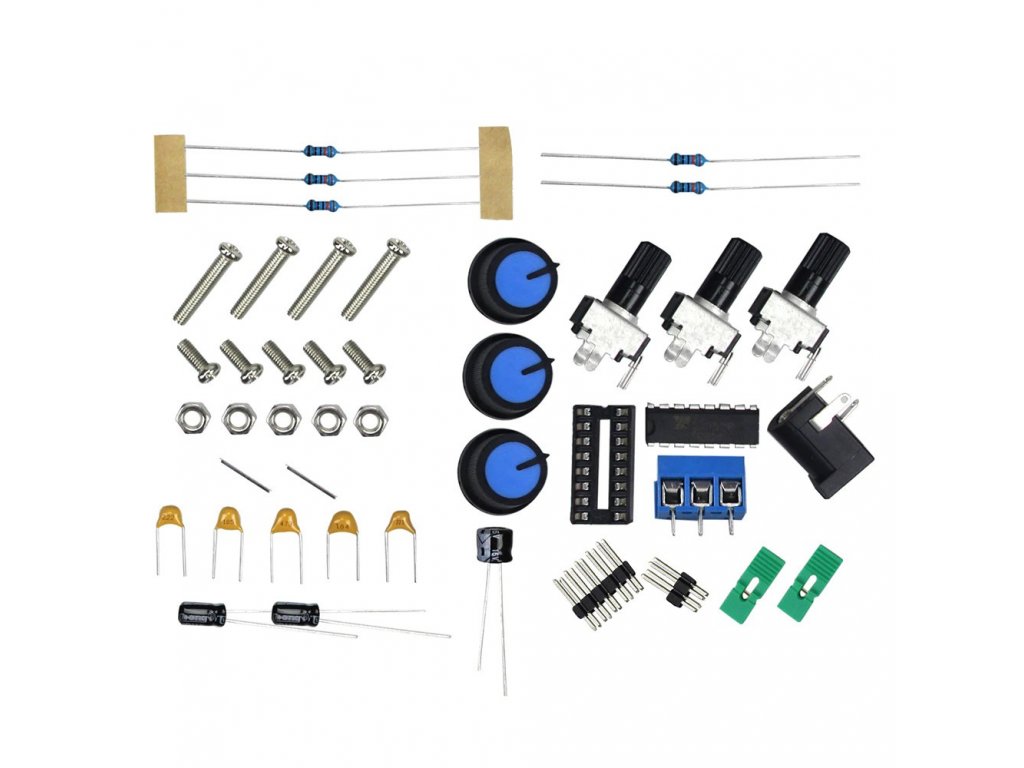

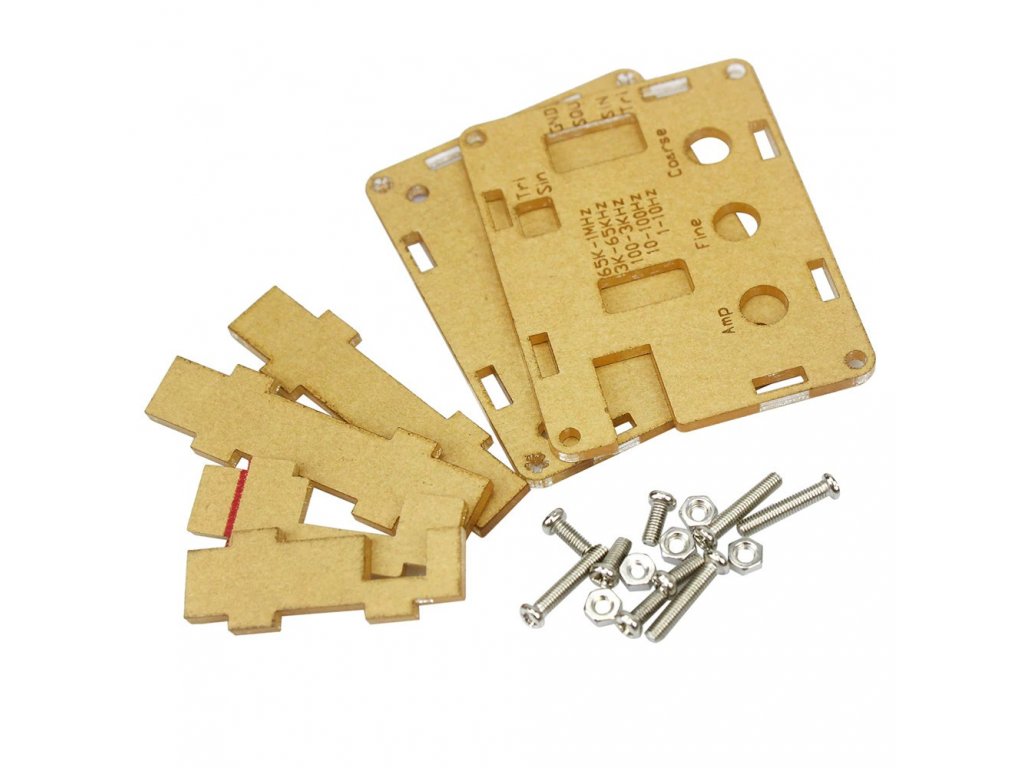

The kit contains all the necessary components, a circuit board and a transparent box including control knobs (one for output level adjustment, one for fine frequency adjustment and one for coarse adjustment).

Specifications:

• Supply voltage: 9-12V DC
• Curves: square, sine and triangular
• Impedance: 600 Ω + 10%
• Frequency: 1Hz - 1MHz
• Sine wave signal
  • Amplitude: 0-3V at 9V DC input
  • Distortion: less than 1% (at 1kHz)
  • Flatness: +0.05 dB 1Hz - 100 kHz
• Square signal
  • Amplitude: 8V (no load) at 9V DC input
  • The Age of Ascension: Less than 50ns (at 1kHz)
  • Time to fall: Less than 30ns (at 1kHz)
  • Symmetry: less than 5% (at 1kHz)
• Triangle signal
  • Amplitude: 0-3V at 9V DC input
  • Linearity: less than 1% (up to 100kHz) 10mA

Included in delivery:

• 1pcs Function Generator Kit with XR2206 and box

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• Requires summering!
