Step-down converter 9-16V 10A

Product detailed description

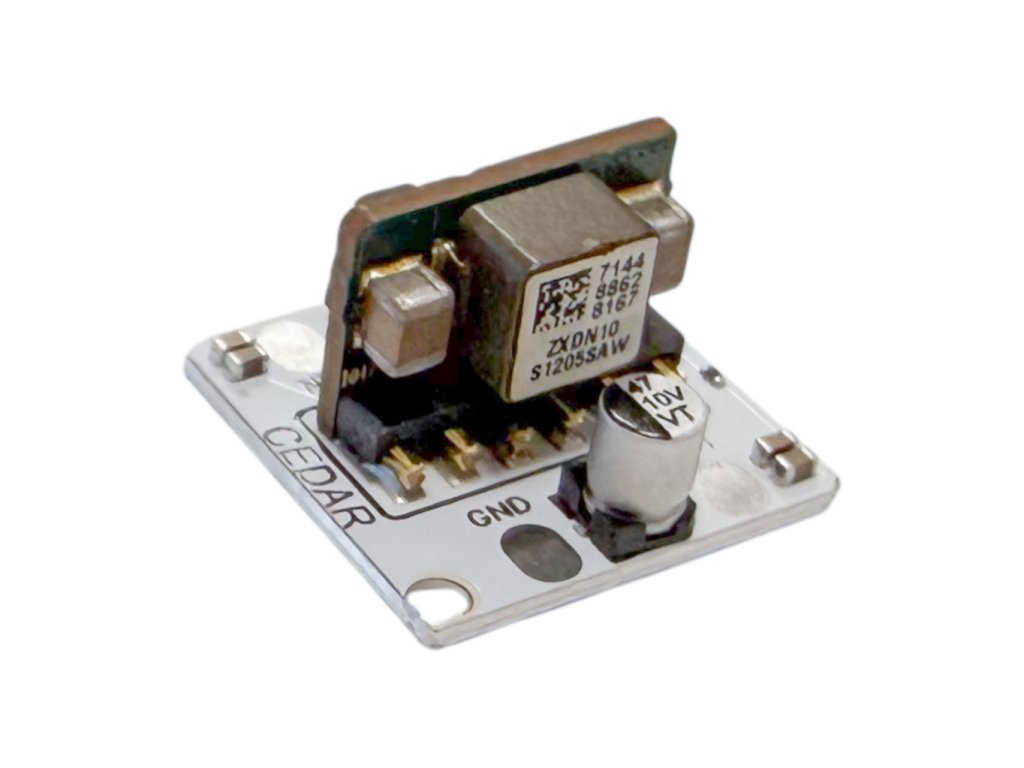

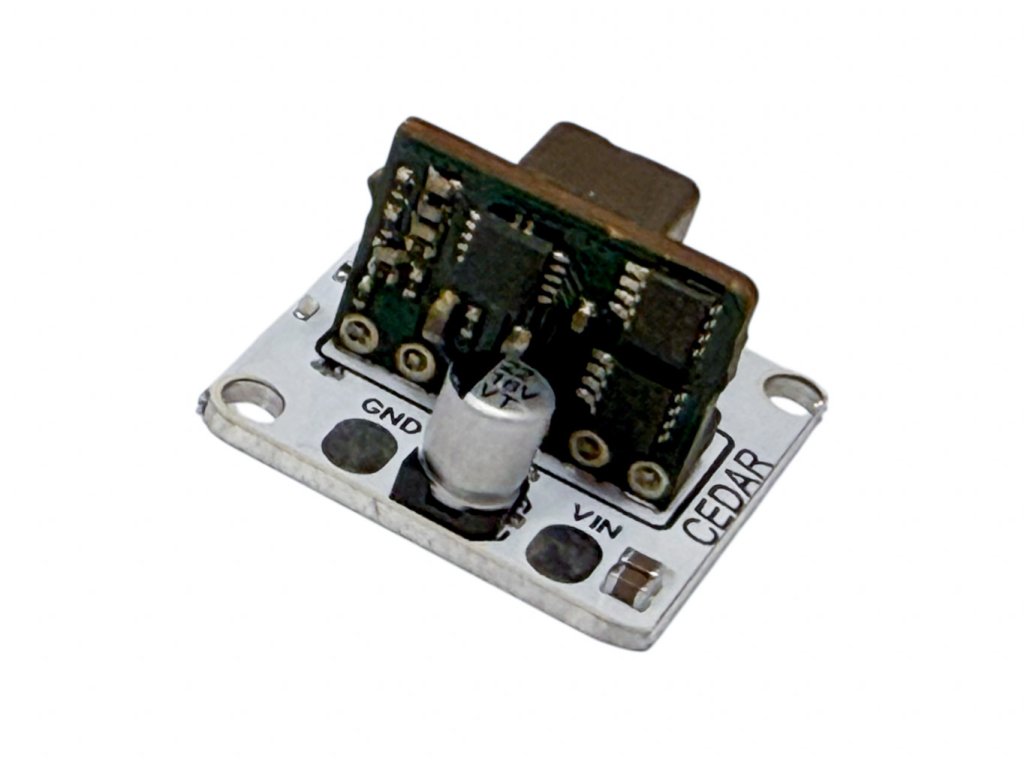

Compact step-down (buck) DC-DC converter designed to reduce voltage from the 9–16 V range to a fixed stabilized output voltage. The module is mounted on an aluminum PCB for better heat dissipation and allows a high output current of up to 10 A. Thanks to its small dimensions and wide temperature range, it is suitable for automotive applications, embedded electronics, and demanding DIY projects.

Our Testing

During our testing, the module behaved as follows:

• Without a heatsink, it reached a temperature of 79°C at 8A consumption
• With a heatsink, it reached a temperature of 76°C at 10A consumption

For this reason, for consumption exceeding 8A, we recommend using a heatsink.

Specifications:

• Converter Type: Step-down (buck) DC-DC
• Chip Used:
• Input Voltage: 9–16 V DC
• Output voltage:
  • 5 V DC
  • 3.3 V DC
• Maximum output current: up to 10 A
• Output voltage accuracy: ±0.1 V
• Operating temperature: −40 °C to +85 °C
• Relative humidity: 20–90 %
• Dimensions: 25 × 25 × 12 mm

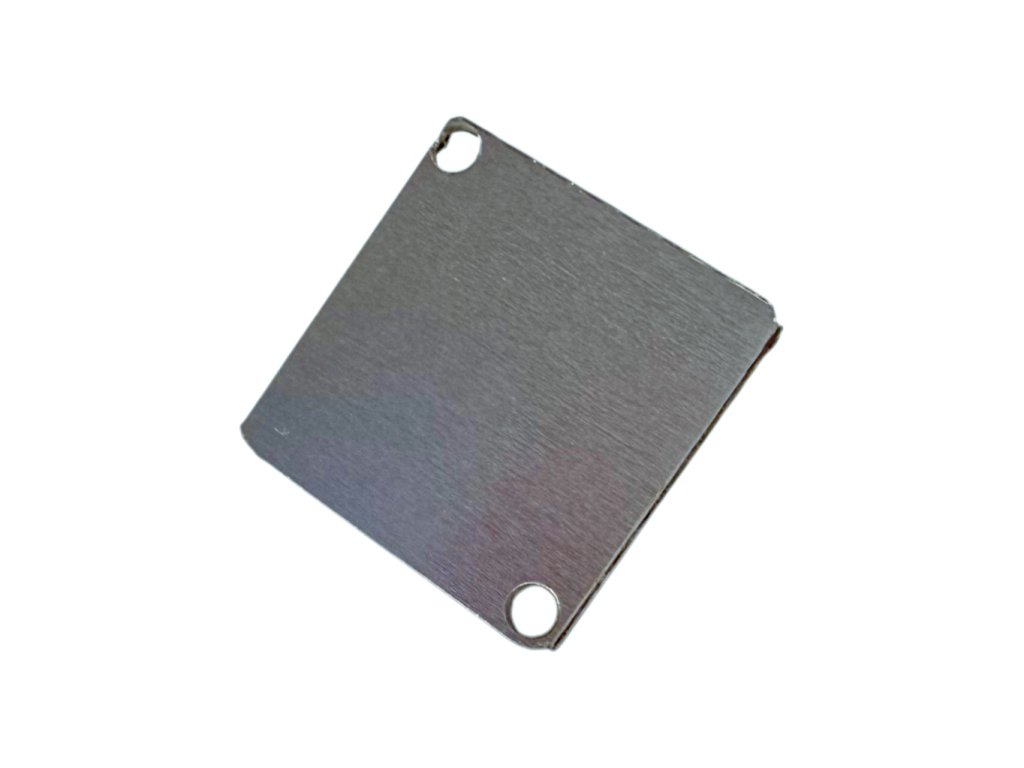

• PCB material: aluminum PCB (metal core)

Package contents:

• 1× Step-down converter 9–16 V / 10 A (5 V or 3.3 V variant)

Note:

• The product is not a self-contained functional unit and may require professional assembly.
• Photos are for illustrative purposes only and may differ slightly from the actual appearance of the product without changing its properties.
