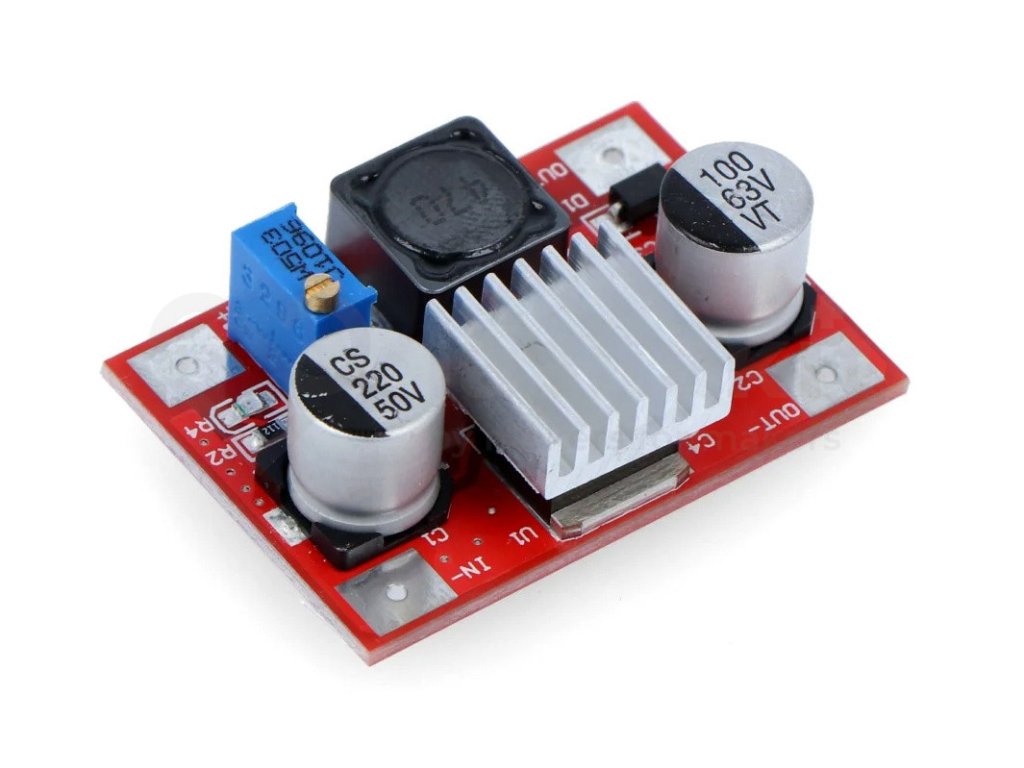

Step-up boost converter with LM2577 5-56V 3A

Product detailed description

Step-up (Boost) voltage module with LM2577 chip is an excellent solution for adjusting and boosting DC voltage in the range of 5 V to 56 V, which is easily set by trimmer. Connect a voltage from 3.5 V to 35 V DC to the input and you can immediately power various devices with the higher voltage they need.

It is important to ensure that the current does not exceed 3 A, which is the maximum capacity of this device, otherwise there is a risk of damage. With compact dimensions of 44 x 31 x 13 mm, it fits into a variety of electronic projects and the added heatsink ensures stable operation even with extended use.

Avoid a condition where the input terminals have a higher voltage than the set voltage at the output terminals! Damage to the inverter may occur!
Therefore, before using it for the first time, it is necessary to use an input voltage of 3.5V and set the desired output voltage. The intended higher input voltage can then be connected to the input.

Product description:

• Input voltage: 3.5 V to 35 V
• Output voltage: 5V to 56V
• Max. current: 3A.
• Chip: LM2577
• Size: 44x31x13mm

Included in delivery:

• 1pc Step-up boost converter with LM2577 5-56V 3A

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
