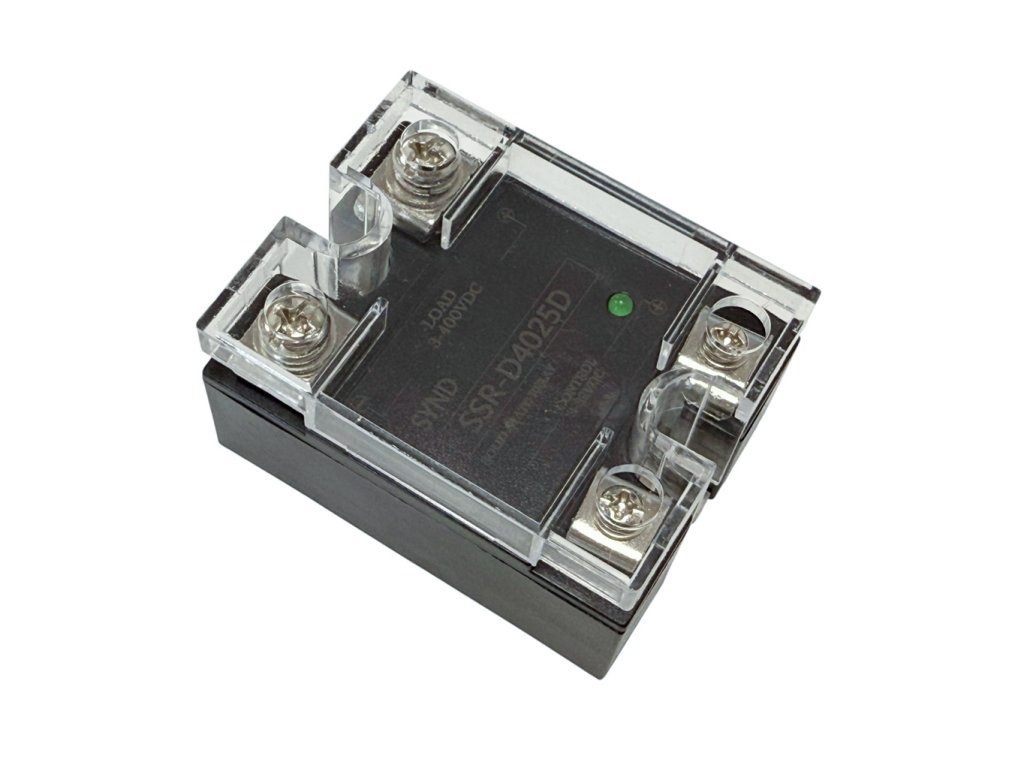

SYND SSR-D40xxD Solid State Relay SSR DC-DC 400VDC

Product detailed description

Quick description: SYND SSR-D4010D / SSR-D4025D solid-state relay (DC–DC) for switching DC loads up to 400 V DC with galvanic isolation and 3–32 V DC input. 10 A or 25 A option, MOSFET output for quiet and fast operation – it is recommended to mount on a heatsink under higher load.

Specifications:

• Model: SYND SSR-D40xxD
• Relay type: Solid State Relay (SSR) – DC to DC
• Input voltage (control): 3–32 V DC
• Output voltage (switched): 3–400 V DC
• Maximum switched current: SSR-D4010D: 10 A; SSR-D4025D: 25 A
• Control current: approx. 7–20 mA
• Insulation resistance: ≥ 100 MΩ / 500 V DC
• Switching type: MOSFET, galvanically isolated (opto)
• Operating temperature: −40 to +80 °C
• Dimensions: 58 × 44 × 30 mm
• Mounting: On a heatsink or flat surface (necessary for higher loads)

Package contents:

• 1× SYND SSR-D40xxD solid state relay SSR DC-DC 400VDC (depending on the selected current variant)

Comment:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic characteristics.
• For higher current variants (25 A and above), it is necessary to use a suitable heatsink.
