TDO TY013QVP02NH Display 1.28" IPS 240x240 round UART display with encoder

Product detailed description

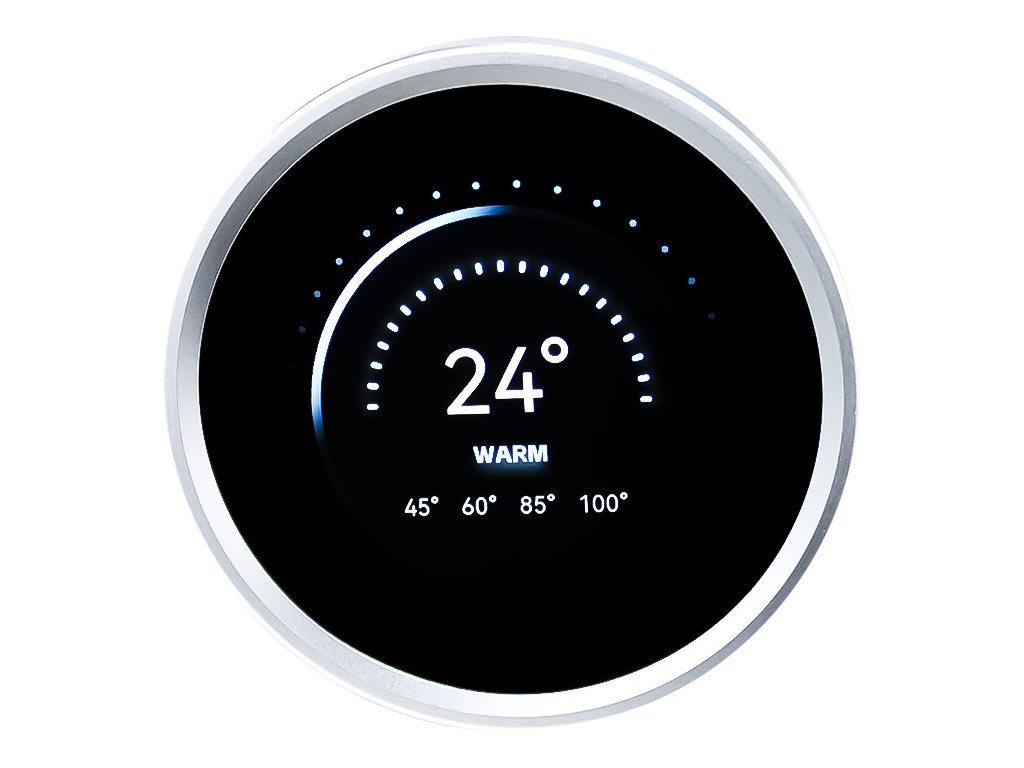

TDO TY013QVP02NH is a compact, round 1.28" IPS display with a 240x240 px resolution, combining a built-in encoder, resistive touch, and intuitive control (rotate, press, touch). The integrated multi-purpose control board supports graphics, text, audio/video, RTC, buzzer, and other functions, making the module ideal for creating HMI interfaces without complex programming. Lua script support and Giraffe® software for rapid GUI creation are also available.

Specifications:

• Model: TY013QVP02NH
• Display Type: 1.28" IPS, round
• Resolution: 240 RGB × 240 px
• Active Area: 32.4 × 32.4 mm

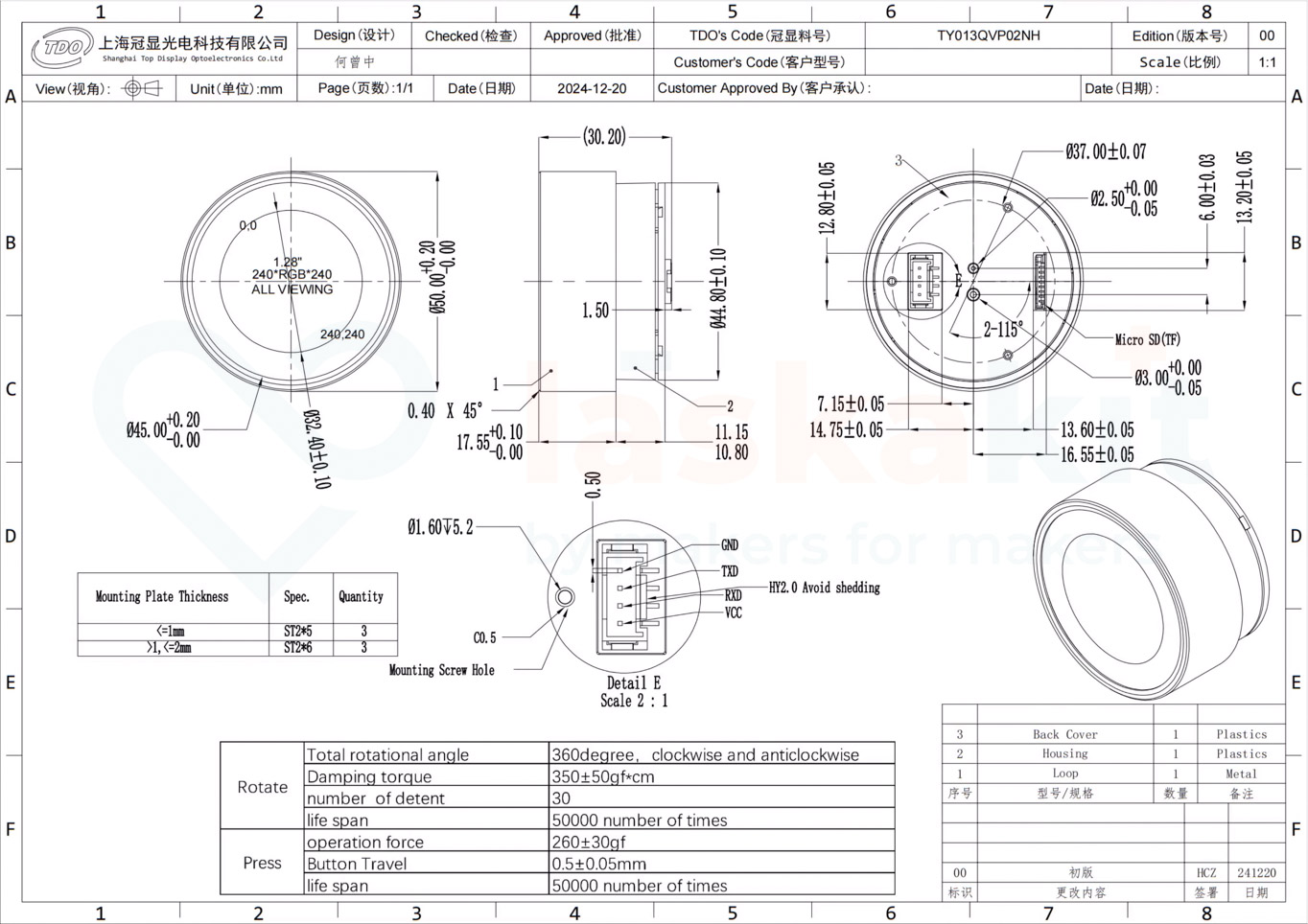

• Module dimensions: 50.0 × 50.0 × 30.2 mm
• Brightness: 170 cd/m²
• Touch layer: Yes (touch / rotation / press)
• Control element: Built-in rotary encoder
• Communication interface: 3.3 V TTL, GIRAFFE® protocol
• Built-in memory: 16 MB SPI Flash for user content
• Supported image formats: JPG, PNG
• Supply voltage: 3.1–5.5 V (typically 5 V DC)
• Power consumption: 57 mA (max. brightness) / 31 mA (backlight off)
• Operating temperature: -20 °C to +70 °C
• Storage temperature: -30 °C to +80 °C
• Working humidity: 10–90% RH
• Integrated functions: image display, text, QR codes, audio/video playback, RTC, buzzer, amplifier
• Scripting support: Lua scripts for user logic
• GUI Editor: Giraffe® – free, fast GUI creation

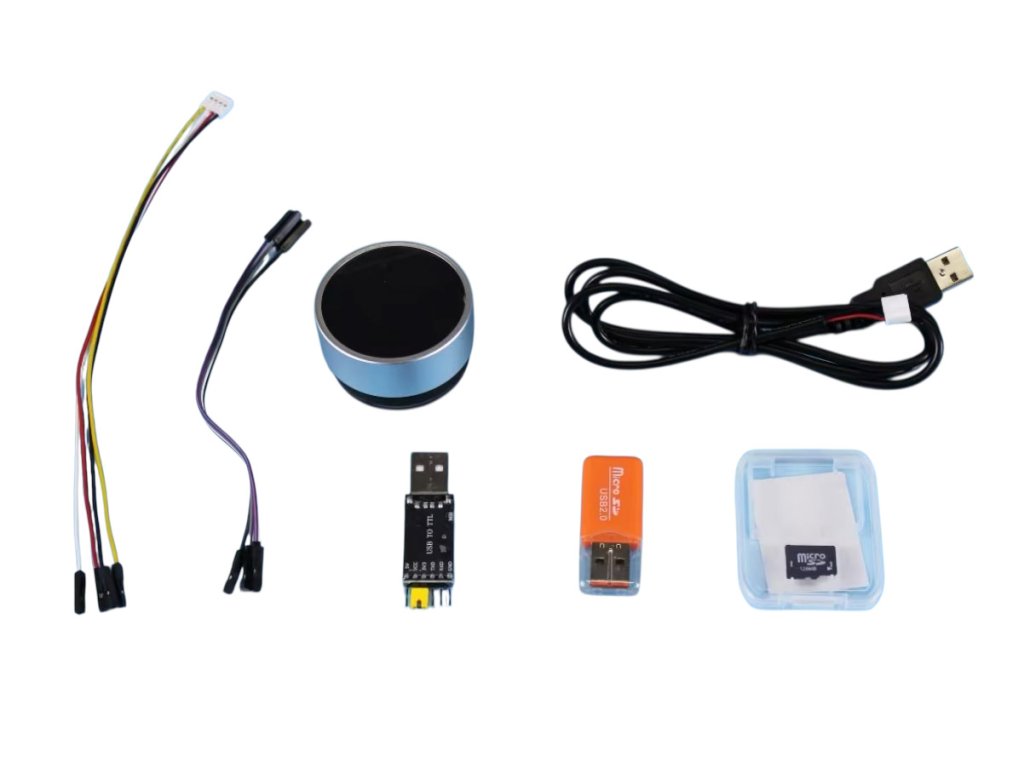

Package contents:

• 1× TDO TY013QVP02NH Display 1.28" IPS 240x240 round UART display with encoder
• 1x Connection cable

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
