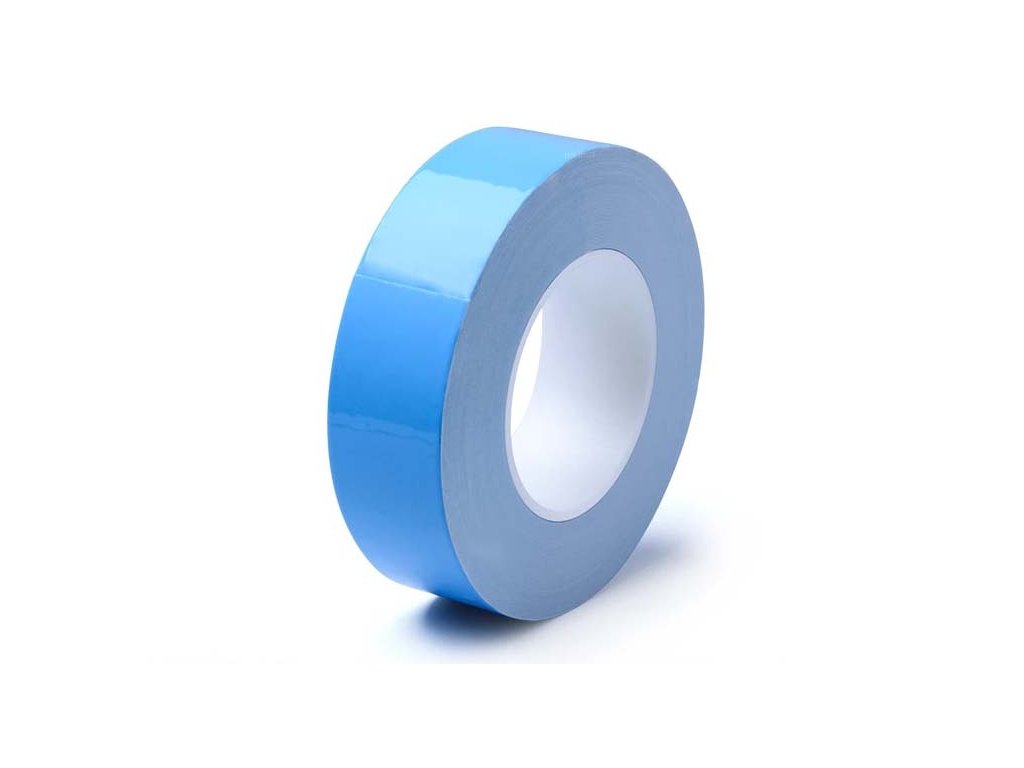

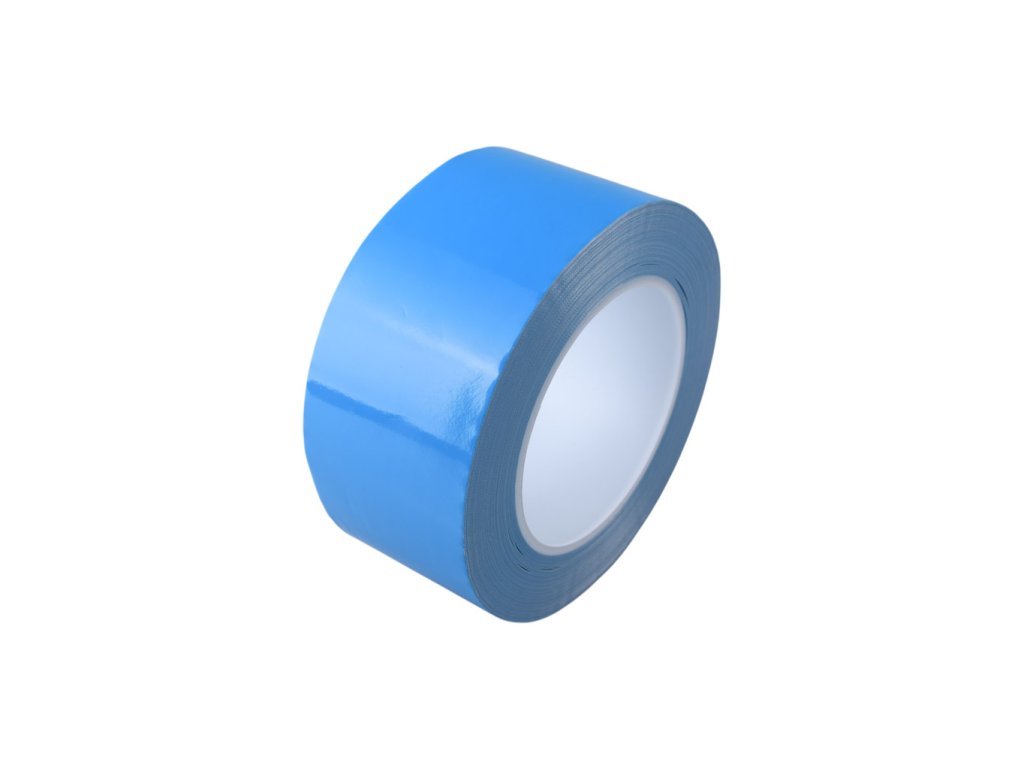

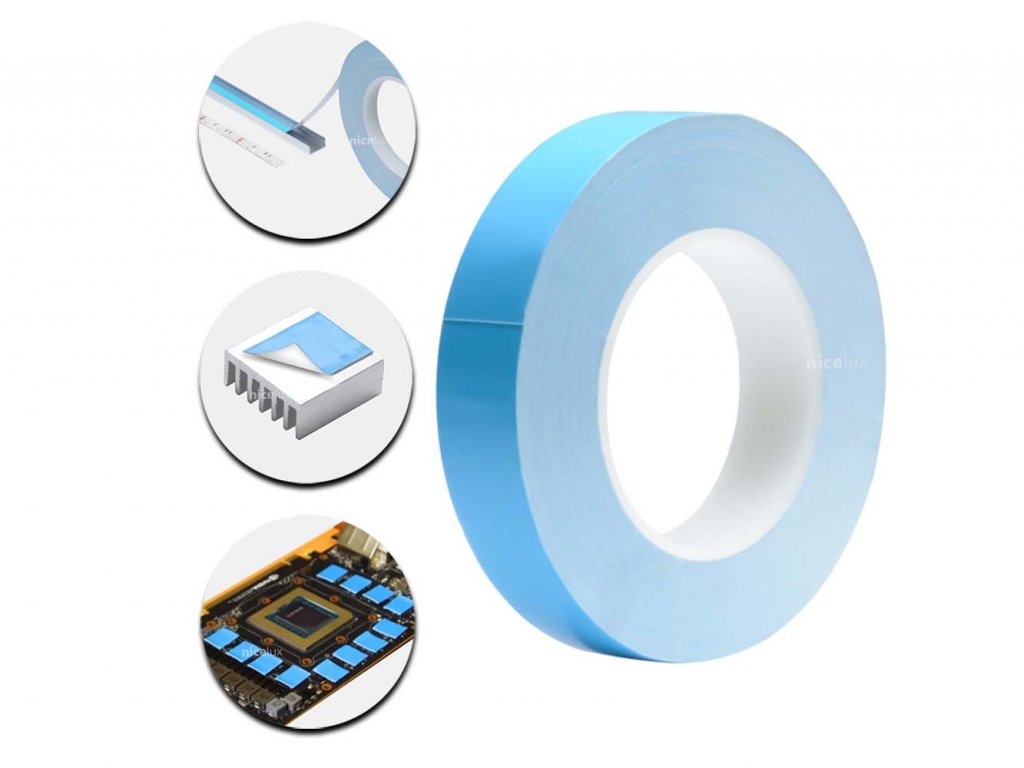

Double-sided thermal conductive adhesive tape

Product detailed description

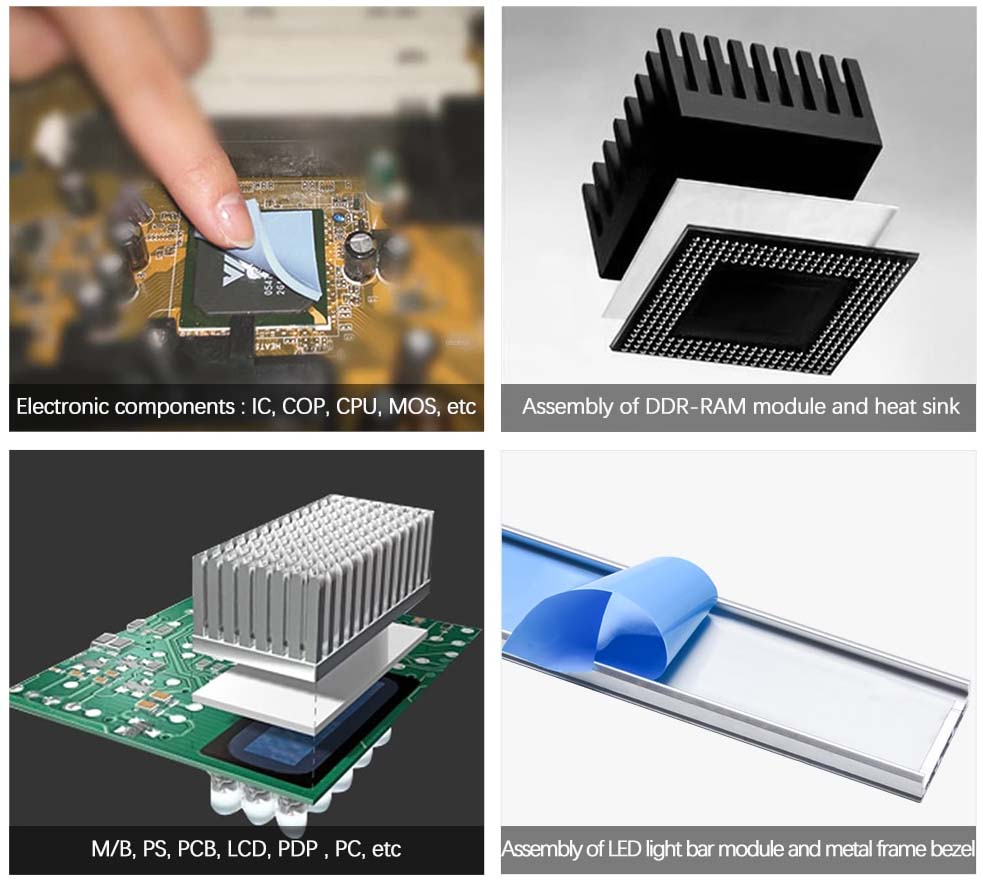

This thermally conductive double-sided adhesive tape is designed for the effective mounting of heatsinks and other components where reliable heat transfer and a strong mechanical bond without the use of screws are required. Thanks to its silicone material, it offers good thermal conductivity, high adhesion, and temperature resistance up to 130°C. The tape is particularly suitable for electronics, LED modules, and other passive cooling applications, and is available in two width variants.

Specifications:

• Type: double-sided thermally conductive adhesive tape
• Color: white
• Material: silicone
• Available widths: 20 mm / 55 mm
• Total thickness: 0.2 mm
• Length: approx. 25 m
• Thermal conductivity: 1.2 W/m·K
• Electrical resistance: 3.5–8.0 kV/mm
• Adhesion: 12–18 N / 25 mm
• Temperature resistance: up to 130°C

Package contents:

• 1x Thermally conductive double-sided adhesive tape in the selected width (20 mm or 55 mm), length approx. 25 m

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
