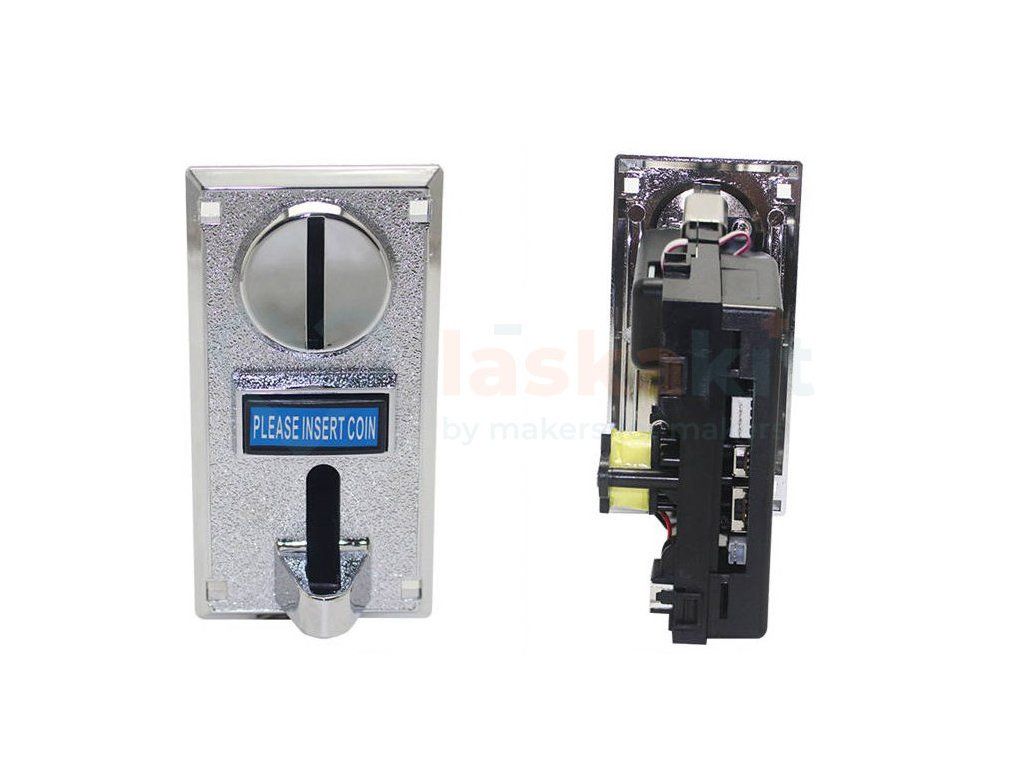

Universal coin holder, model 936

Product detailed description

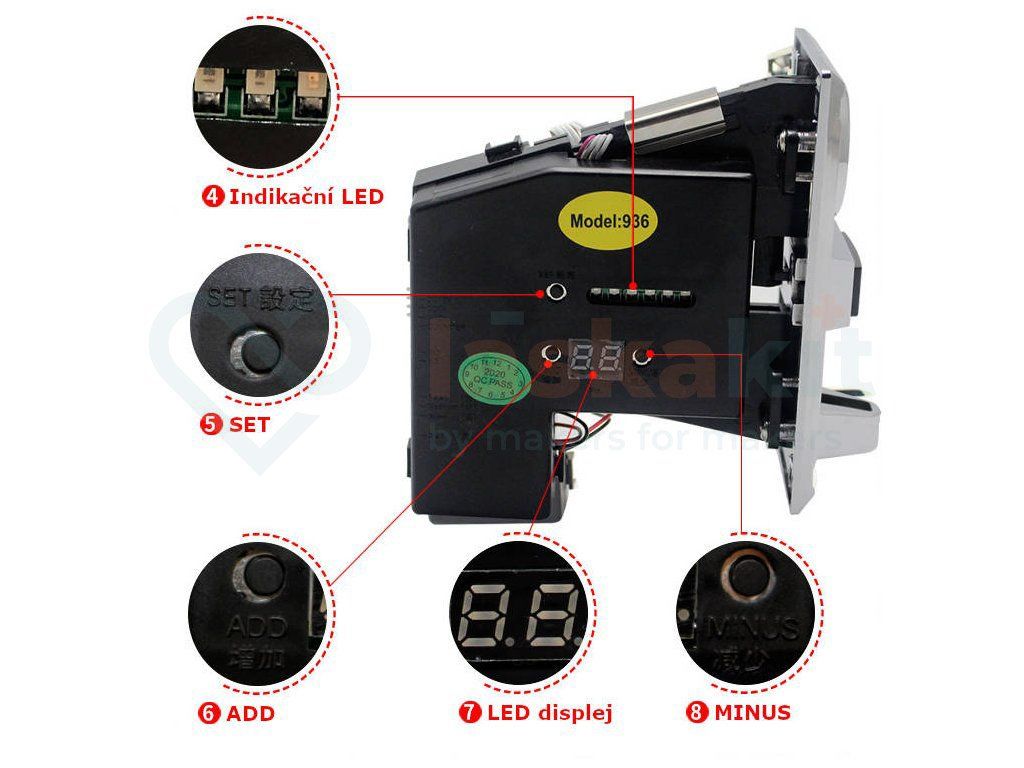

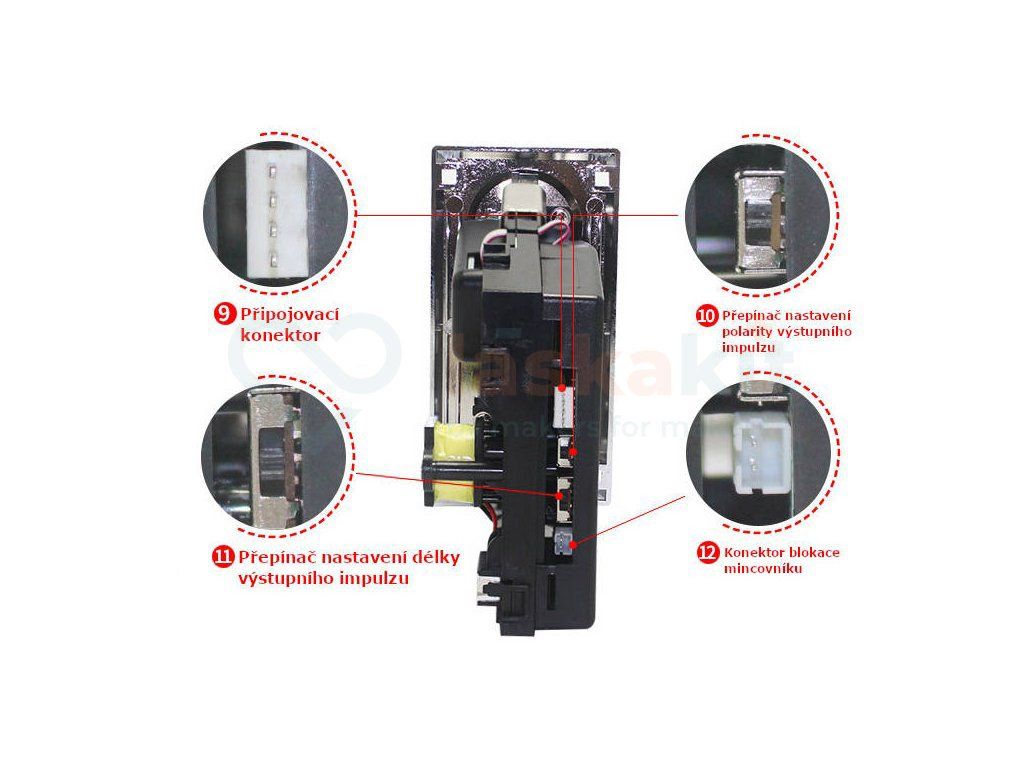

Are you preparing a device that will use coin payment? We have a universal coin changer that supports setting up to 6 different coins of different currencies and sizes. Each set coin is then sent to the evaluation system via a pulse output. The number of pulses can be set for each coin in the range 1-50. The detection accuracy can also be adjusted. The coin box also has a locking input where the coin box can be locked and coins are automatically returned when this function is activated, regardless of the setting.

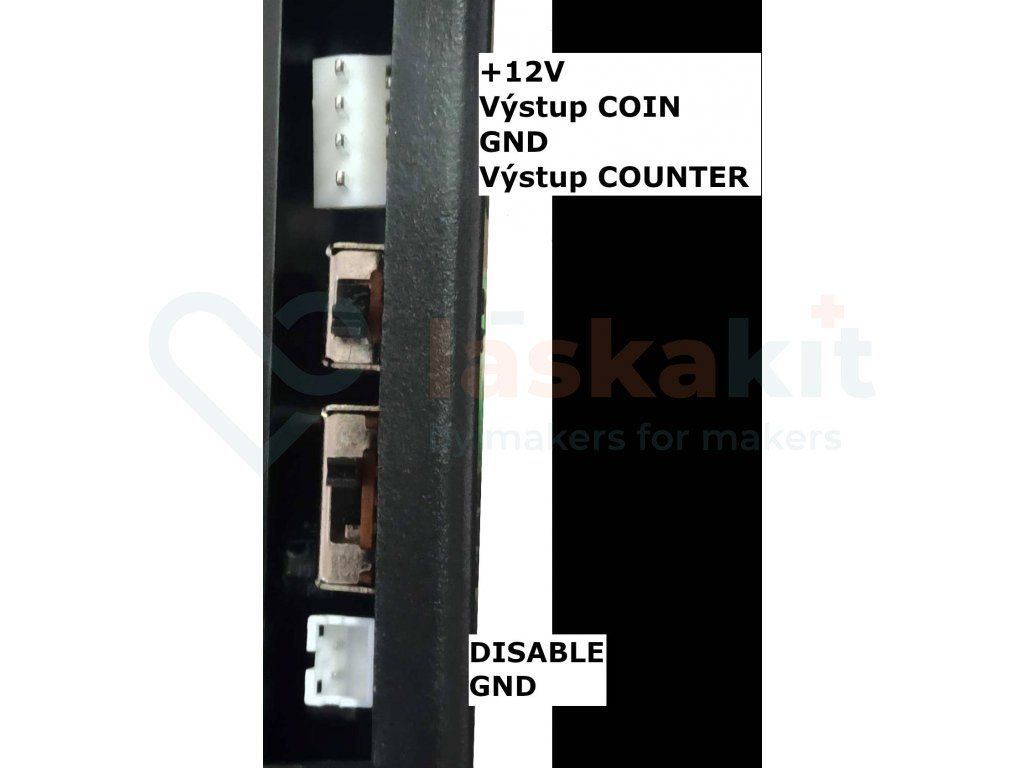

COIN and COUNTER outputs are transistors with open collector and switching to GND.

Specifications:

• Working voltage: DC 12V
• Current draw: approx. 50mA, peak 350mA(max. 0.5s)
• Detection accuracy percentage: 95%
• Detection time: 0.6s
• Coin diameter: 15-32mm
• Coin thickness: 1,8-3,5mm
• Operating temperature range: -10-60°C
• Storage temperature range: -20-85°C
• Dimensions: 123 x63x110mm

Included in delivery:

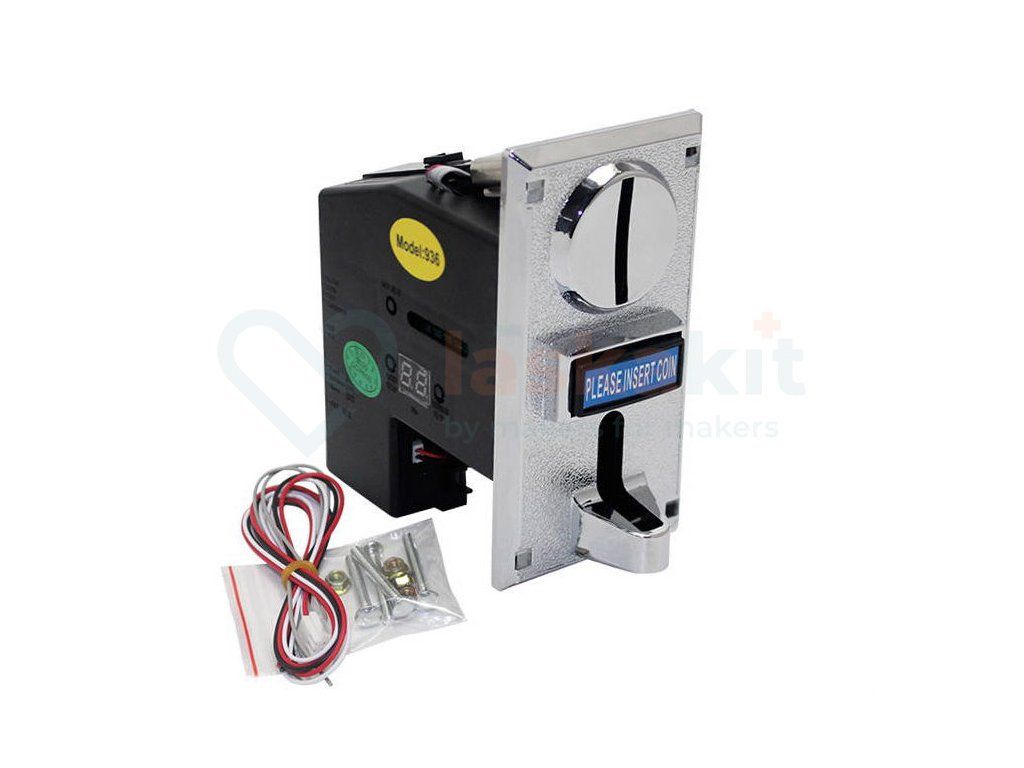

• 1pc Universal coin box, model 936

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
