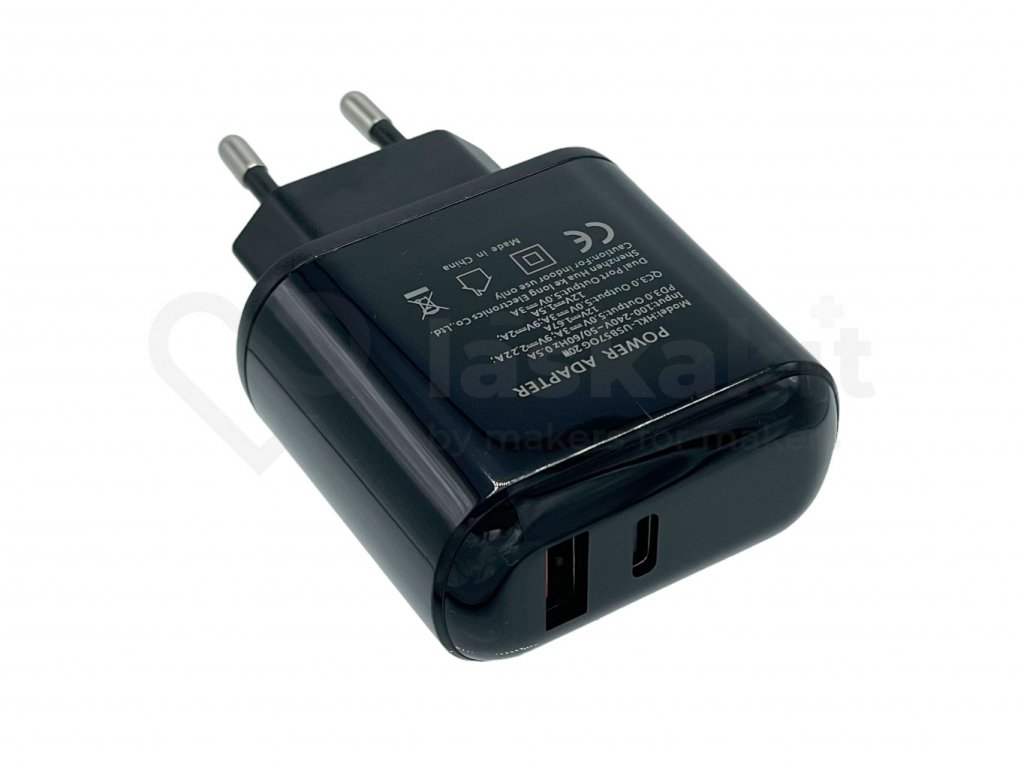

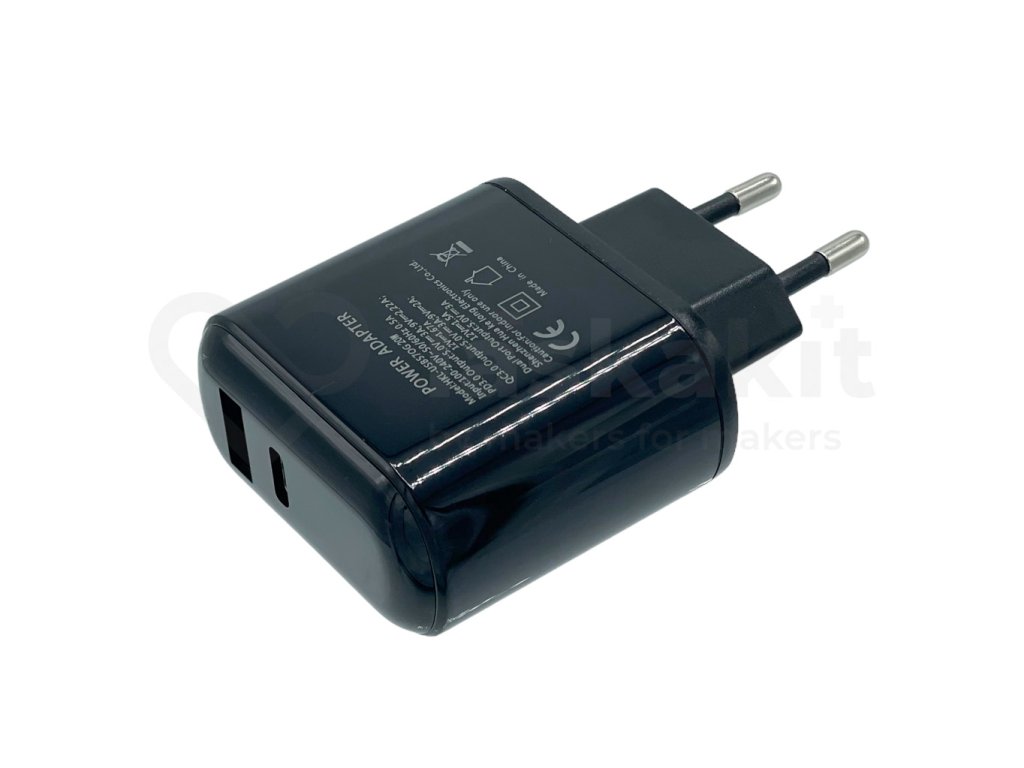

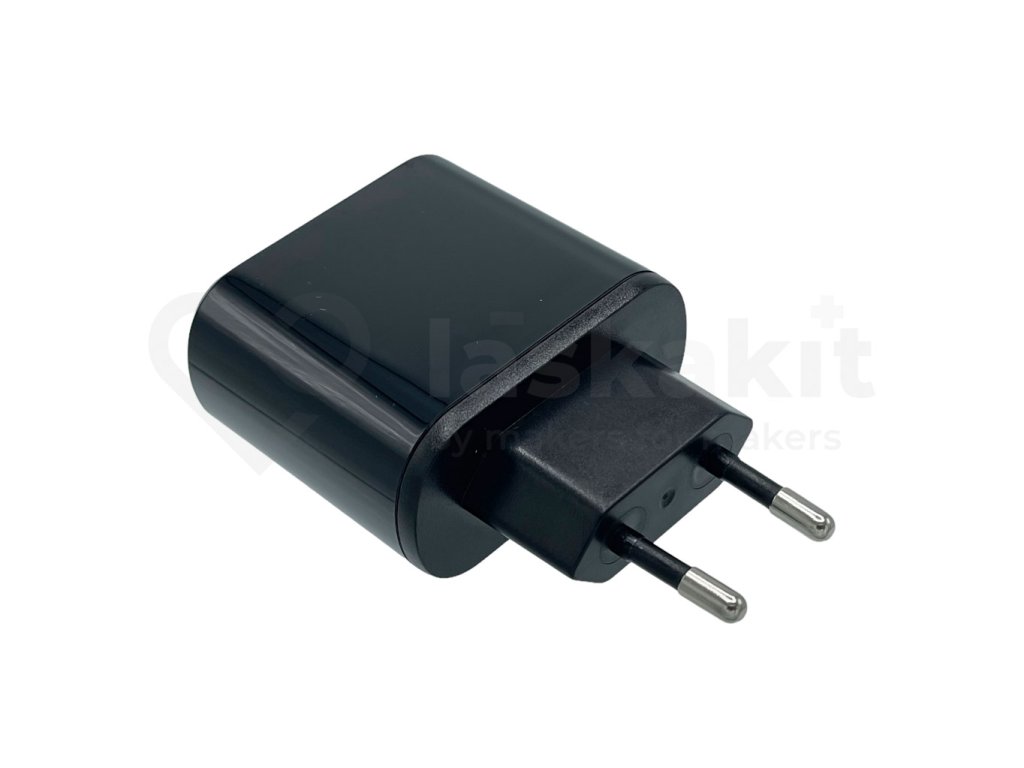

HKL-USB57 mobile device charger 20W, USB-A + USB-C

Product detailed description

The HKL-USB57 mains charger with a power output of up to 20 W charges phones, tablets or other USB-powered devices using USB Power Delivery 3.0 or Quick Charge 3.0 fast charging. It features two outputs: USB-C with the PD protocol and USB-A with the QC 3.0 protocol. The charger negotiates the voltage of 5 V, 9 V or 12 V with the connected device. It works with iPhones from the 8 series upwards (fast charging via USB-C to Lightning or USB-C to USB-C cable), Android phones and small USB-C powered devices. Thanks to the 9 V and 12 V output via PD, you can also use it as a compact power supply for your own DIY projects with a cable or PD trigger module.

Specifications:

• Input: 100–240 V AC, 50/60 Hz, max. 0.6 A
• Max. power: 20 W
• Outputs:
  • USB-C (PD 3.0): 5 V / 3 A, 9 V / 2.22 A, 12 V / 1.67 A
  • USB-A (QC 3.0): 5 V / 3 A, 9 V / 2 A, 12 V / 1.5 A
• Protections:
  • against short circuit
  • over-current and over-load protection
  • over-charge and under-charge protection
  • against overheating
• Plug: EU (type C)
• Operating temperature: 0 °C to 45 °C
• Weight: approx. 80 g
• Suitable cables:
  • Pine64 60W USB-C Silicone Cable
  • USB-C/USB-C 90˚ Cable - 60W 480Mbps 100cm
  • 100cm 3A USB-C PD | DC 5.5/2.1mm cable – power supply for devices with a DC connector

Important usage notice:

• The USB-C output provides only 5 V without negotiation. It switches to 9 V or 12 V only when requested by the connected device or PD trigger module via the Power Delivery protocol. A basic cable without a PD chip will always receive 5 V.
• Charge Samsung phones via the USB-C port using a USB-C to USB-C cable to achieve fast charging via PD. Samsung (AFC protocol) may not recognise the USB-A port with QC 3.0, resulting in standard charging only. This charger does not support the Super Fast Charging function (PPS, 25 W and above).
• A 20 W power output is sufficient for phones, tablets, and small USB-C devices. Standard laptops require 45–65 W or more and will only charge slowly, or not at all.

Package contents:

• 1× HKL-USB57 20 W Charger, USB-A + USB-C

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
