USB Programmer and Debug Adapter WCH-LinkE-RO-1v3

Product detailed description

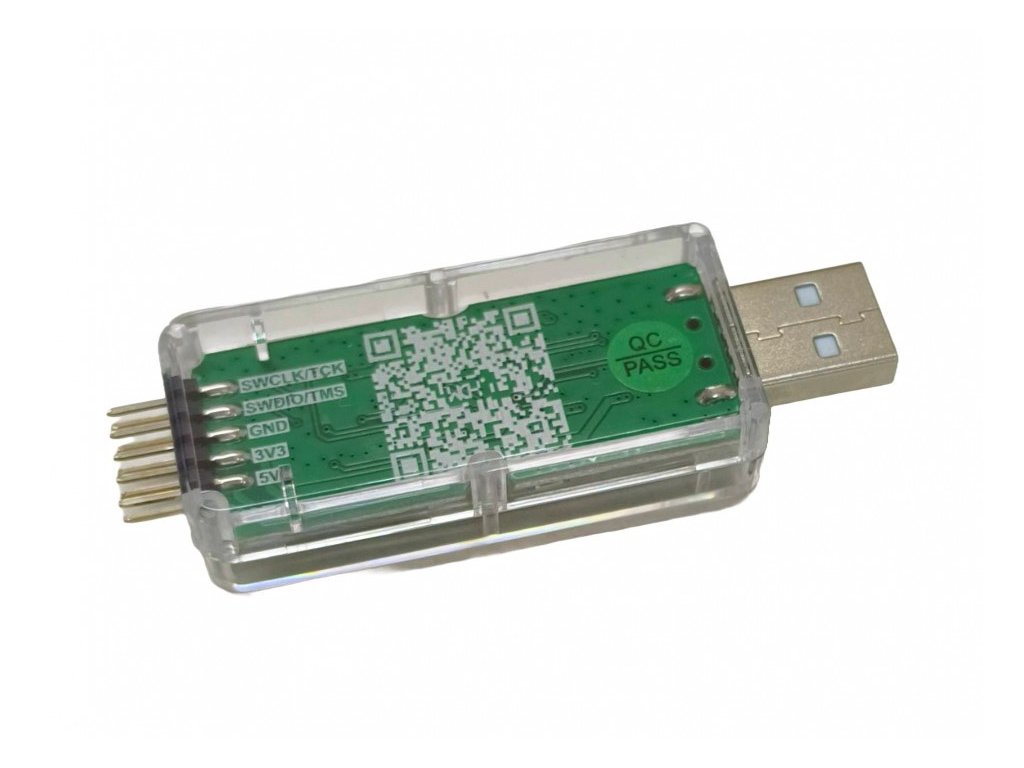

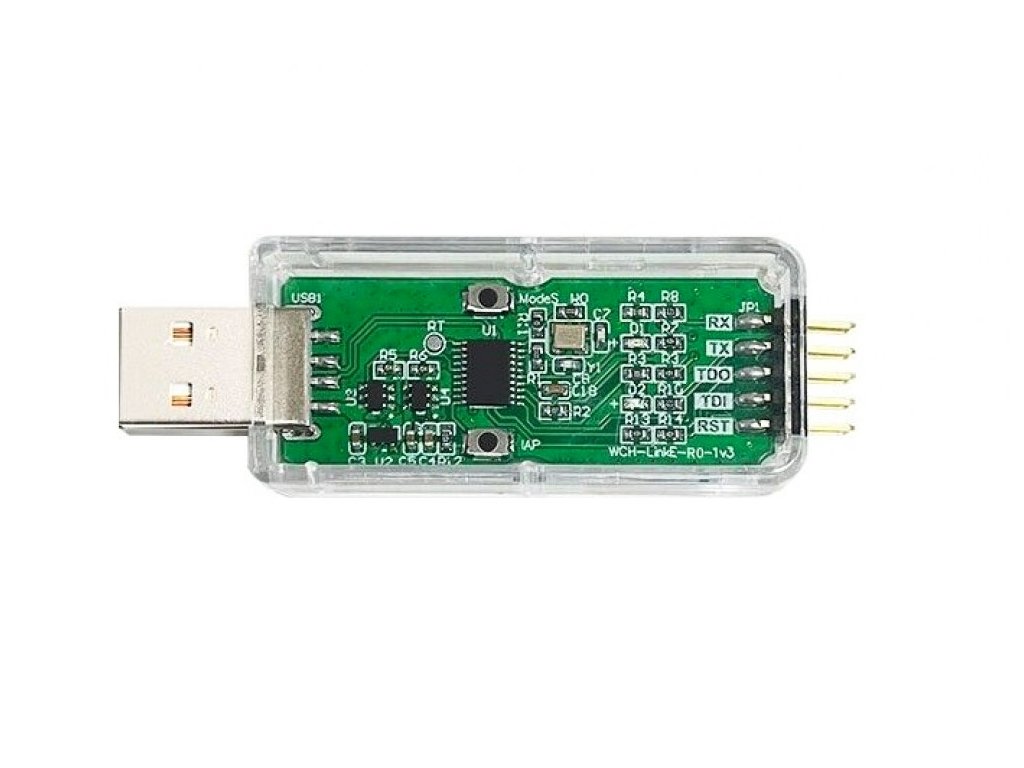

The WCH-LinkE-RO-1v3 USB programmer and debug adapter is a compact tool designed for programming and debugging WCH microcontrollers (such as the CH32, CH57, CH58, CH32V families, etc.). It supports both the SWD interface for ARM cores, as well as JTAG and other proprietary protocols used in WCH chips. Thanks to the USB connection, it allows easy connection to the development environment and fast data transfer during programming or debugging. The adapter is compatible with the official WCH-LinkUtility development tools and also with OpenOCD for open work on multiple platforms.

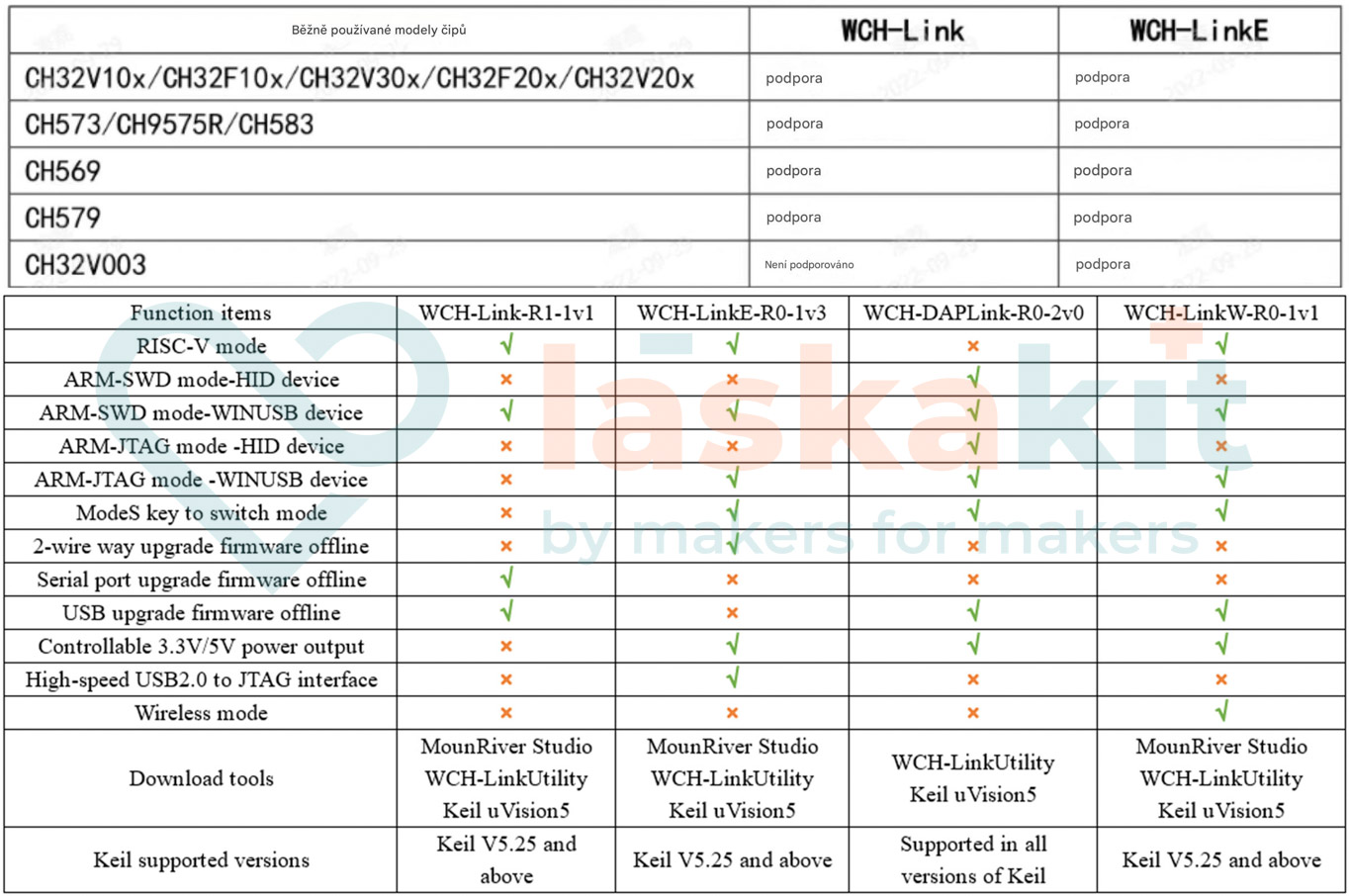

Specifications:

• Model: WCH-LinkE-RO-1v3
• Function: Programmer and debug adapter
• Supported Protocols: SWD, JTAG, WCH proprietary protocols
• Supported Microcontrollers: WCH series CH32, CH57, CH58, CH32V and others
• Compatibility: WCH-LinkUtility, OpenOCD
• PC Connection: USB 2.0 (full speed)
• Connectors: Standard 2×5pin
• Target Device Power Supply: Option to power via programmer (3.3V or 5V)
• Indication: LED diodes for power and communication status
• Dimensions: Compact, lightweight design for easy use

Package contents:

• 1× WCH-LinkE-RO-1v3 USB programmer and debug adapter

Comment:

• This product is not a stand-alone functional unit and may require professional assembly and configuration.
• Photographs are for illustrative purposes only and the actual appearance may vary slightly.
• Drivers need to be installed and compatible development tools need to be used for correct operation.
