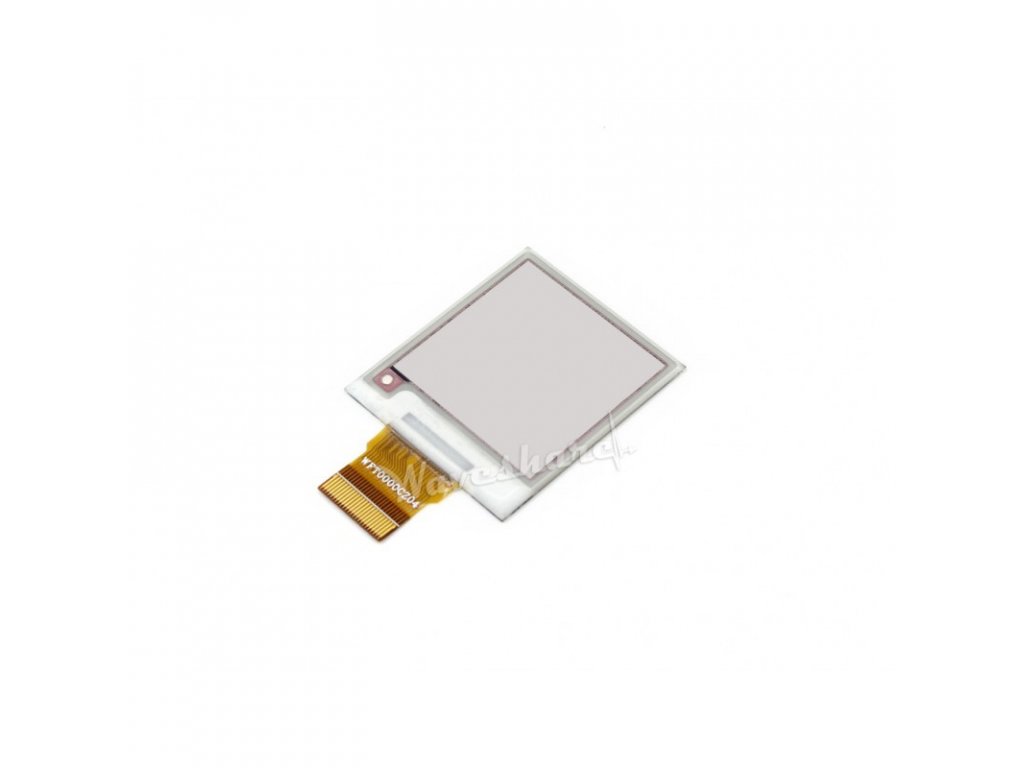

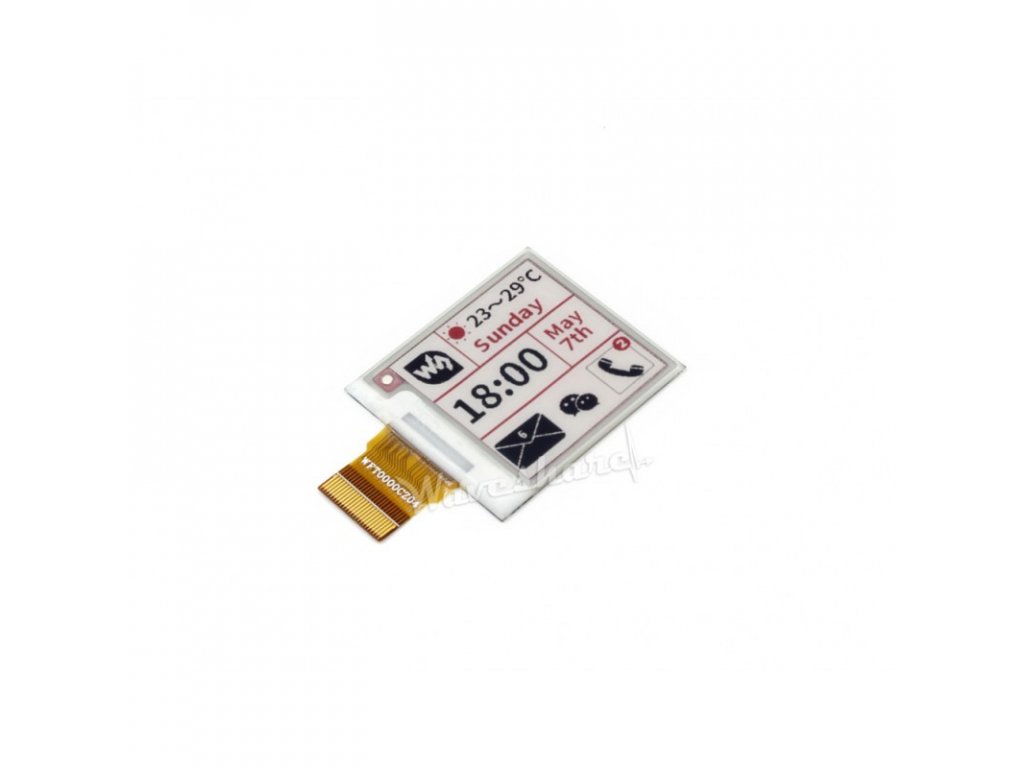

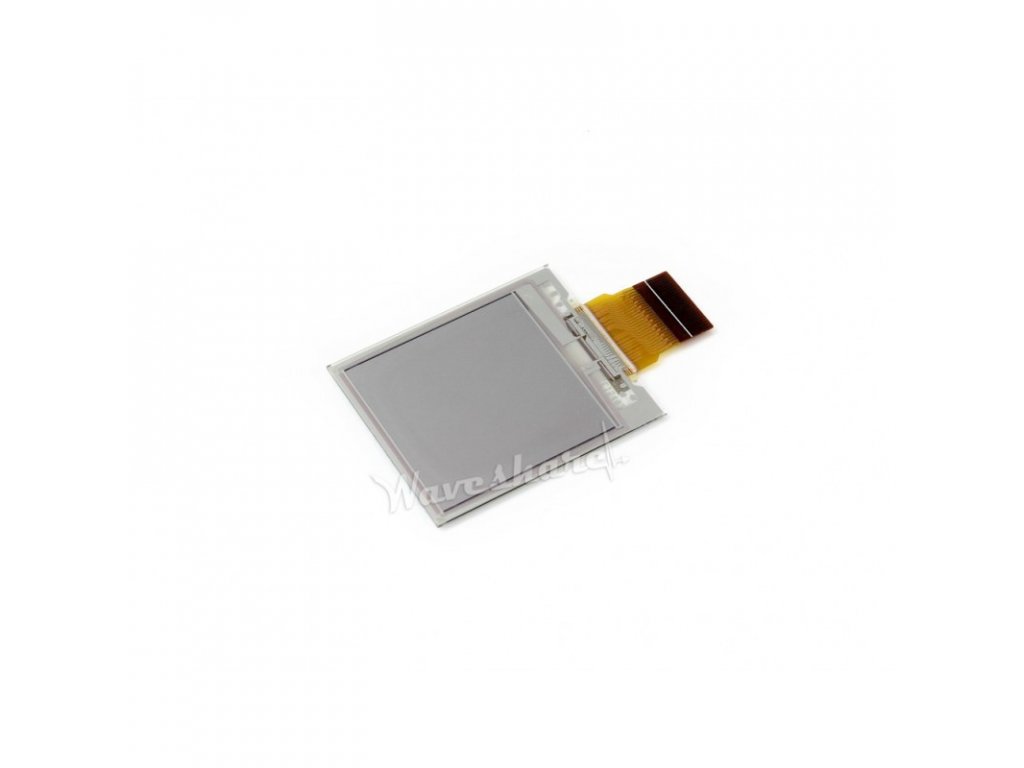

Waveshare 1.54" 200x200 ePaper raw display RBW

Product detailed description

Waveshare 1.54" 200x200 ePaper raw display RBW

E-Ink (or E-Paper) is a so-called electrophoretic display, i.e. a display containing white particles in microcapsules dispersed in a thin layer of dark viscous solution. By applying a short impulse, these white particles will move, possibly tilting towards the front side of the display, which causes the given pixel to appear white. By applying an impulse of opposite polarity, the given pixel appears black. High viscosity of the solution causes micro-particles to remain in their position without change practically permanently.

Unlike conventional displays, ePaper does not glow but reflects light, just like ordinary paper. It's an ideal display for battery-powered devices because it only needs electricity to change the displayed content.

Specifications:

• Voltage: 3.3V
• Interface: 3 or 4 pin SPI
• Resolution: 200x200
• Partial recovery: NO
• Refresh time: 14s
• Display colours: black, red and white

Included in delivery:

• 1pc Waveshare 1.54" 200x200 ePaper raw display RBW

Sources:

Waveshare Wiki

Remark:

This product is not a standalone functional unit and may require professional installation.
