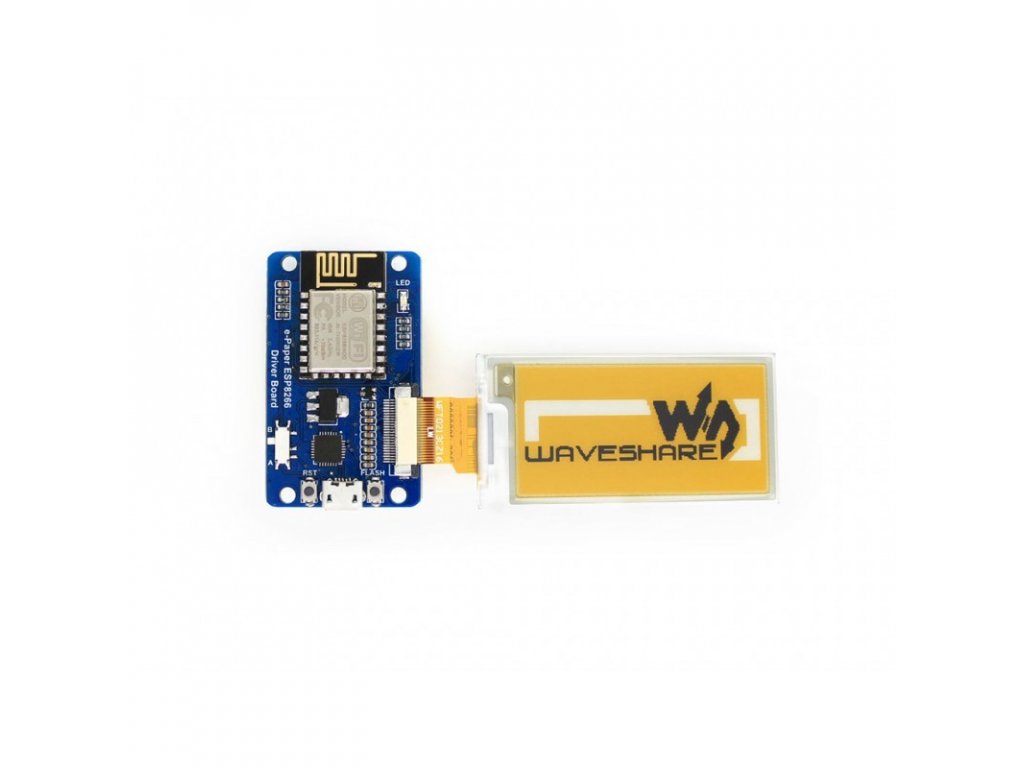

WaveShare ESP8266 e-Paper Raw Panel Driver Board

Product detailed description

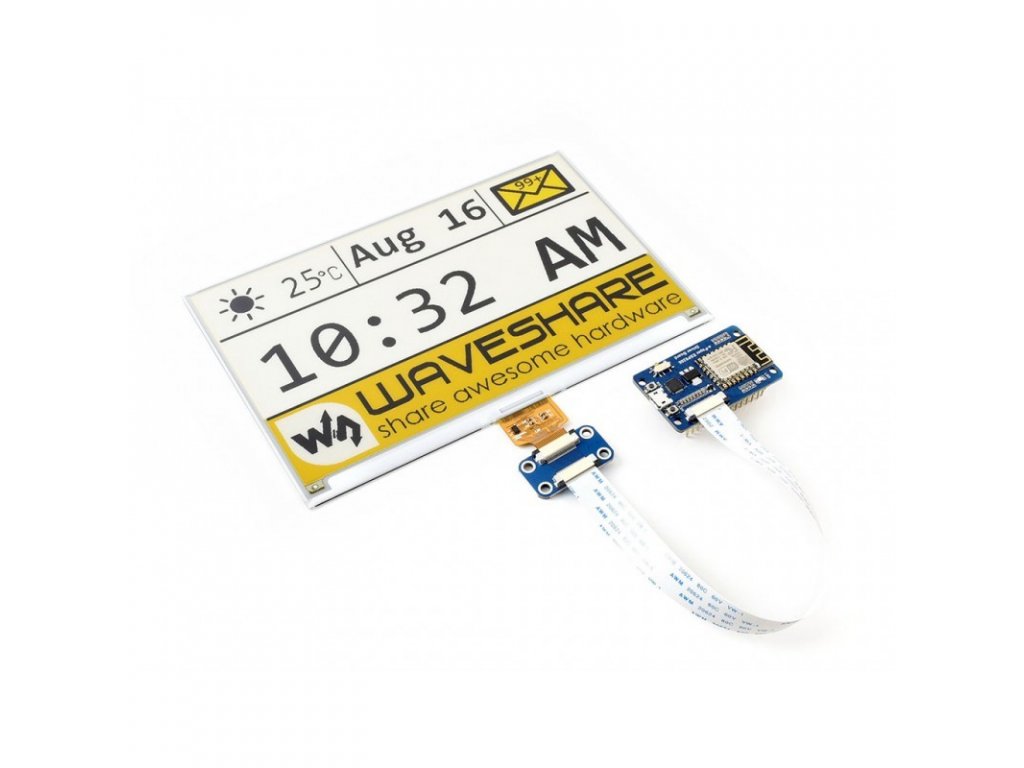

It is a universal driver board for e-Paper raw panels, thanks to WiFi connection it is possible to conveniently display images from PC/smartphone via WiFi.

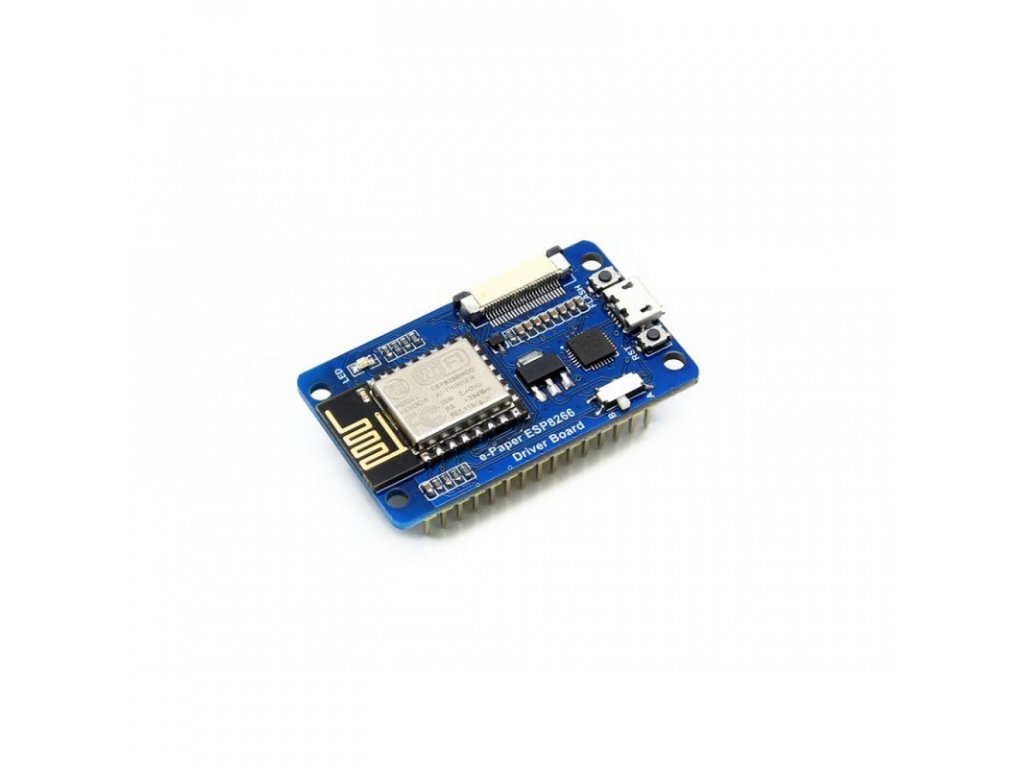

The E-Paper Driver Board is based on the esp8266 chip from Expressif. It combines the functions of a WIFI access point and station + microcontroller and uses a simple programming language. The board is compatible with Arduino IDE and NodeMCU.

E-Ink (or E-Paper) is a so-called electrophoretic display, i.e. a display containing white particles in microcapsules dispersed in a thin layer of dark viscous solution. By applying a short impulse, these white particles will move, possibly tilting towards the front side of the display, which causes the given pixel to appear white. By applying an impulse of opposite polarity, the given pixel appears black. High viscosity of the solution causes micro-particles to remain in their position without change practically permanently.

Unlike conventional displays, ePaper does not glow but reflects light, just like ordinary paper. It's an ideal display for battery-powered devices because it only needs electricity to change the displayed content.

Specifications:

• WiFi protocol: 802.11b/g/n
• Working voltage: 5V
• Working current: 50mA ~ 100mA
• Interface: 3 or 4 pin SPI
• Dimensions: 29.57x48.26mm

Included in delivery:

• 1pc WaveShare ESP8266 e-Paper Raw Panel Driver Board

Remark:

• It's a 3.3V device. If you plug it into 5V digital sensors or devices, you may need a low level converter like our 4-channel or 8-channel converter modules.
• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
