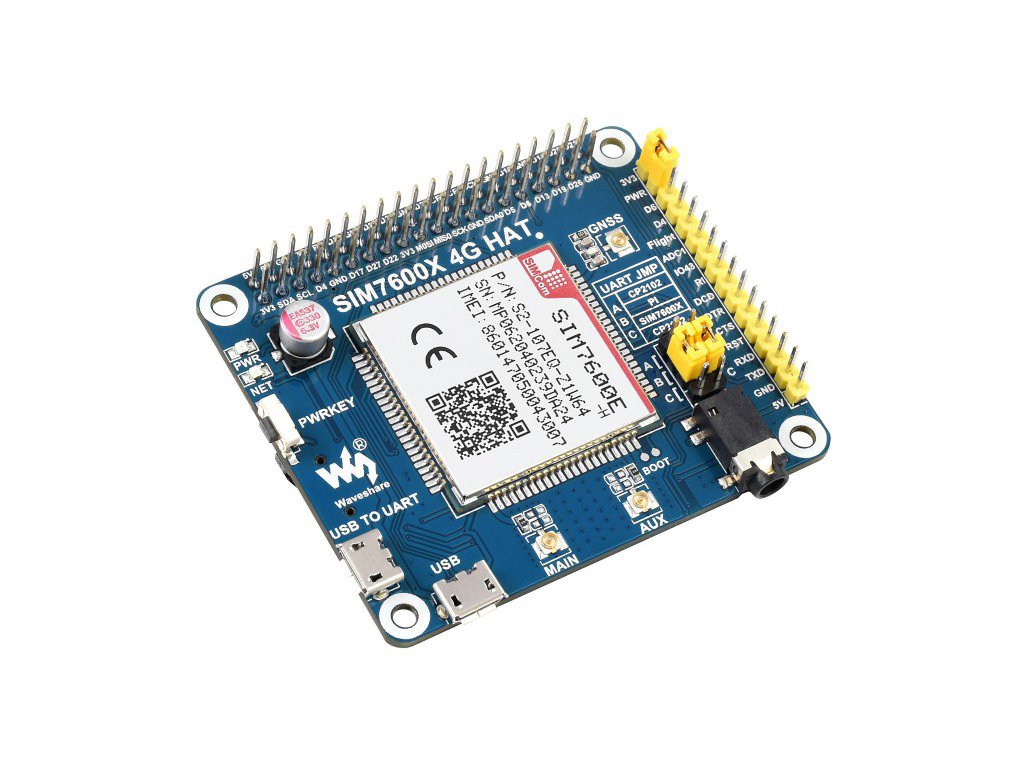

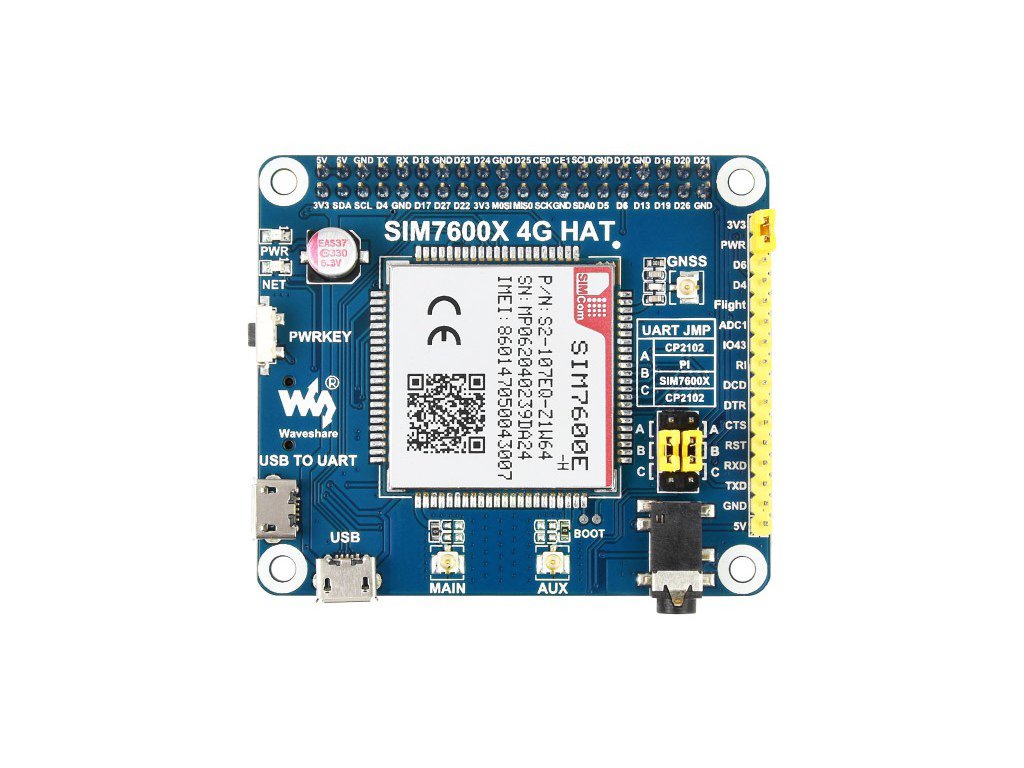

WaveShare SIM7600E-H LTE Cat-4 4G / 3G / 2G, GNSS, HAT Module for Raspberry Pi

Product detailed description

WaveShare SIM7600E-H is a powerful LTE Cat-4 HAT module for Raspberry Pi, providing fast 4G/3G/2G data connectivity and precise GNSS positioning. Thanks to its rich features – including a USB interface, audio decoder, TF slot, and support for a wide range of communication protocols – it is ideal for IoT applications, telematics, mobile data transmission, remote monitoring, and voice services.

Specifications:

• Compatibility: Raspberry Pi (HAT), 40-pin GPIO compatibility also with Jetson Nano
• Mobile Networks: LTE Cat-4, 3G UMTS/HSPA+, 2G GSM/GPRS/EDGE
• Frequency Bands:
  • LTE-FDD: B1/B3/B5/B7/B8/B20
  • LTE-TDD: B38/B40/B41
  • 3G: B1/B5/B8
  • 2G: 900/1800 MHz
• GNSS Systems: GPS, BeiDou, GLONASS, Galileo, QZSS
• GNSS sensitivity: –159 dBm (GPS), –158 dBm (GLONASS)
• TTFF: Cold start < 35 s; Hot start < 1 s
• Supported services: Data, Phone calls, SMS, TCP, UDP, DTMF, HTTP, FTP
• SMS types: MT, MO, CB, Text, PDU; saving to USIM and ME
• Audio: Supports calls, echo cancellation, noise reduction
• Interfaces: USB for AT commands and GNSS, UART (breakout pins), CP2102 converter, audio jack

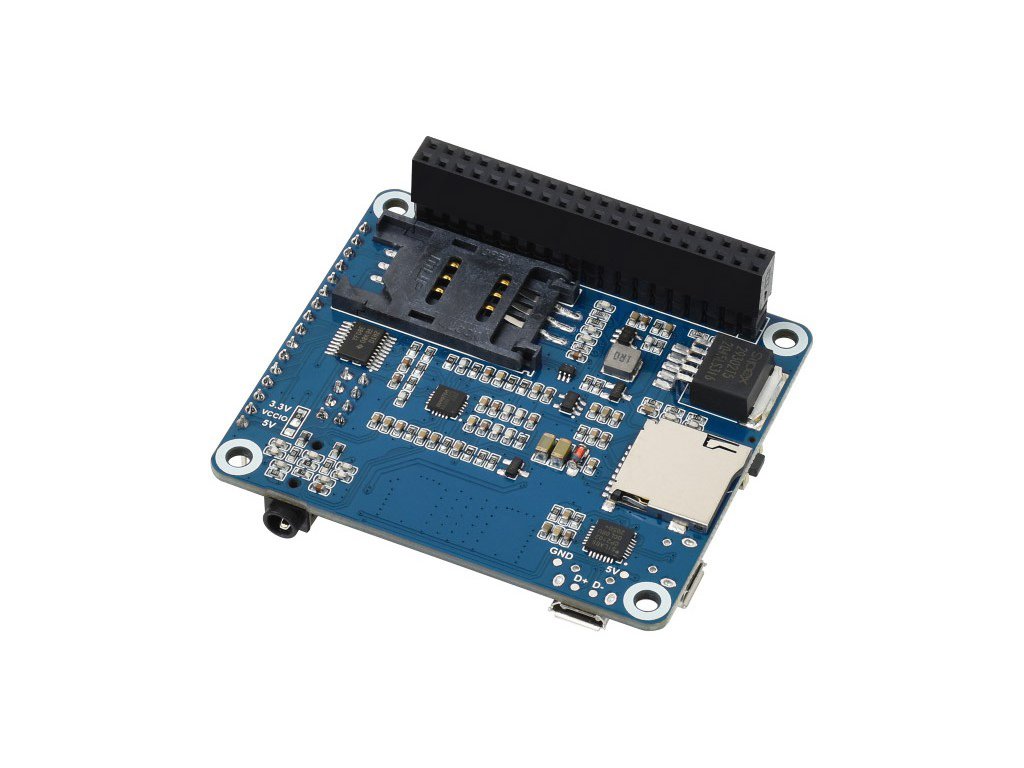

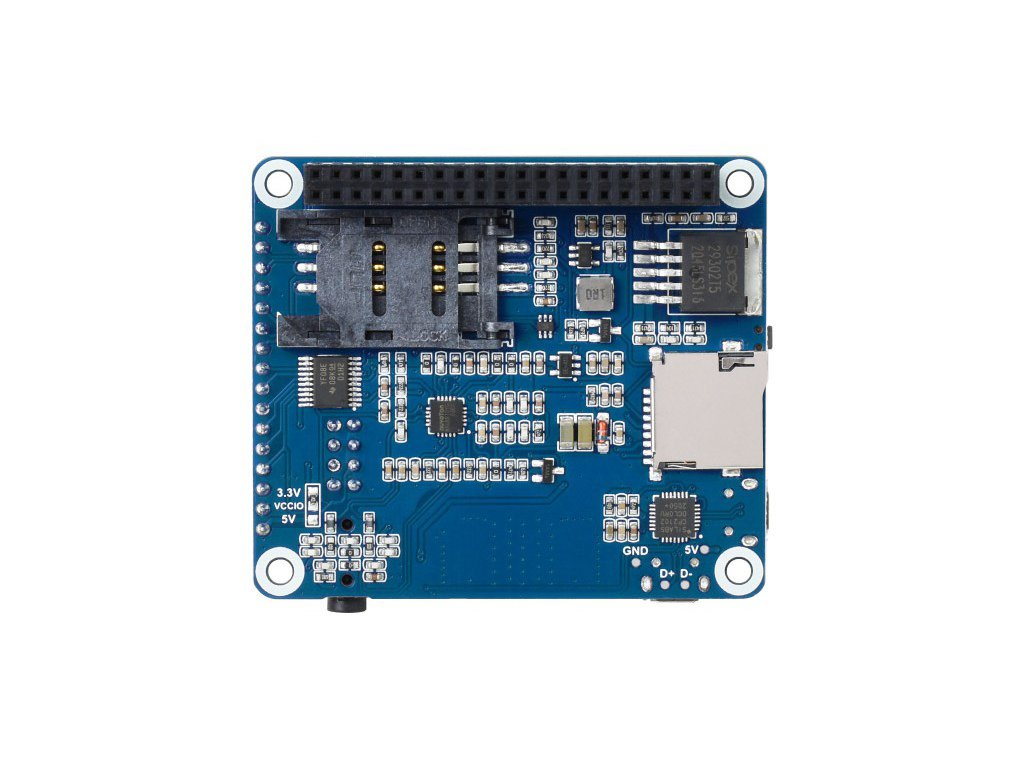

• Slots: SIM card (1.8/3 V), TF card for data storage
• Indication: 2× LEDs for module status
• Power supply: 5 V
• Operating voltage: 3.3 V / 5 V (jumper)
• Baudrate: 300 bps – 4 Mbps (default 115200 bps), autobauding 9600–115200 bps
• Operating temperature: –30 °C to 80 °C
• Dimensions: 56.21 × 65.15 mm

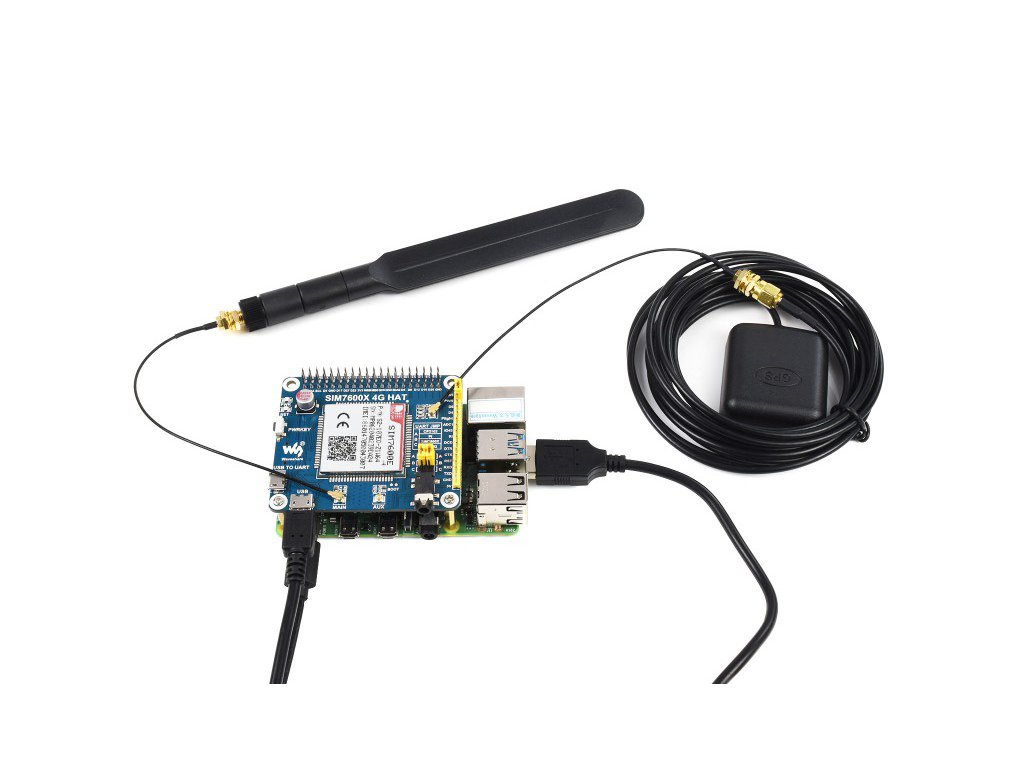

Package contents:

• 1x WaveShare SIM7600E-H HAT module
• 1x LTE antenna + IPEX cable
• 1x GNSS antenna + IPEX cable
• 2x Cable
• Mounting accessories

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• Raspberry is not part of the package
