XH-M604 Battery charger control module 6-60V

Product detailed description

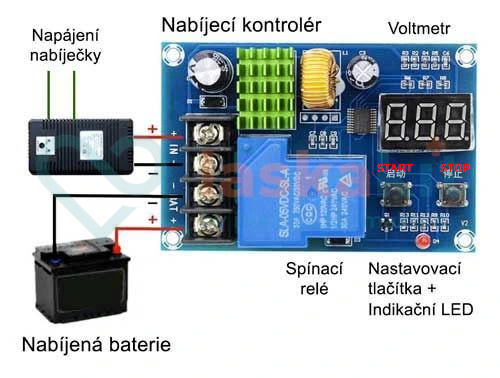

The module is designed to connect the charger to the battery in a controlled manner to prevent overcharging and discharging. It monitors the charger connection within the set battery terminal voltage range but can be used for other purposes.

Specifications:

• Input voltage: 6 - 60V DC
• Switching current: max. 30A
• Dimensions: 81×54×18mm

Instructions for use:

• You will see the current battery voltage on the display.
• Press and hold the "START" button until the number on the display starts flashing. Then use the START/STOP buttons to set the minimum voltage from which charging will start.
• Press and hold the "STOP" button until the display starts flashing, then use the START/STOP buttons to set the maximum voltage limit at which charging will stop.
• To return to the current battery voltage display and confirm the settings, just wait until the display shows a stable value again.
• With a short press of the "START" button, you can display the voltage at which charging begins.
• With a short press of the "STOP" button, you can find out the voltage at which charging ends.

Included in delivery:

• 1x XH-M604 Battery Charger Control Module 6-60V

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
