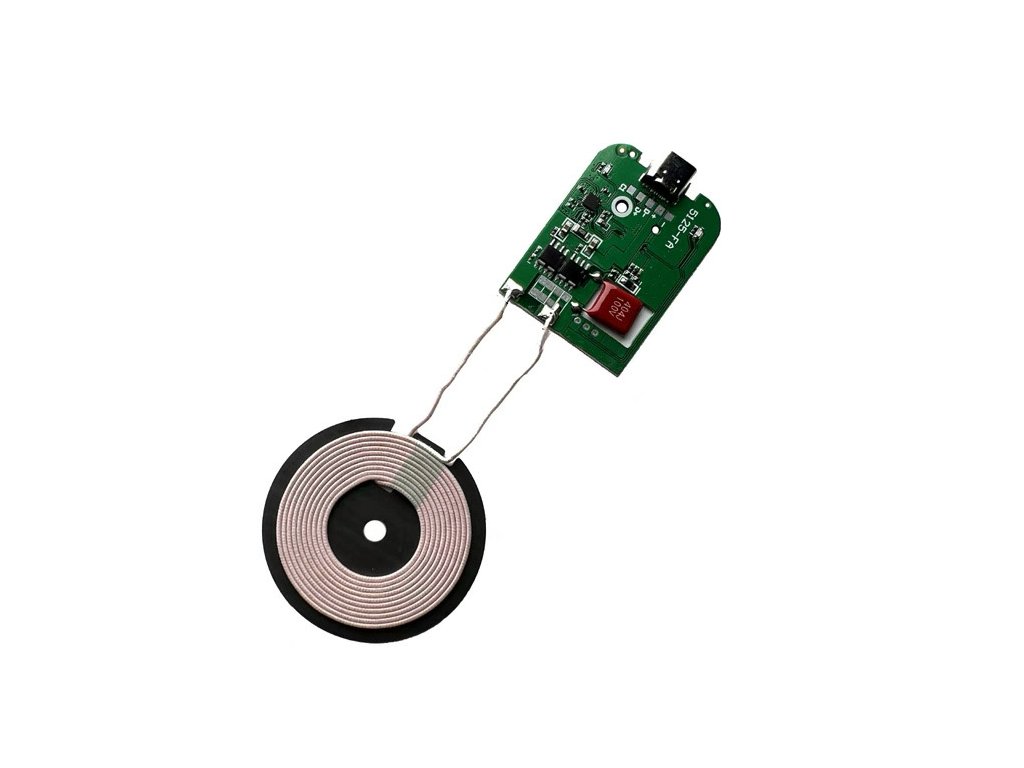

ZH-15W-QI-11 Wireless charging module - 15W QC output, QI

Product detailed description

The ZH-15W-QI-11 is a compact wireless charging module designed for integration into various devices such as wireless chargers, stands, car mounts or desk lamps. It supports the Qi standard and is compatible with Quick Charge (QC) technology, which enables fast charging of devices up to 15W.

Key features:

• Wireless charging support up to 15 W
• Compatible with Qi and Quick Charge (QC)
• Suitable for integration into various devices and projects
• Stable and efficient power transmission
• Protection against overvoltage, overload and overheating

Specifications:

• Model: ZH-15W-QI-11
• Supply voltage:
  • 5V/2A:
    • Power: up to 5W
    • Transmission distance: up to 5mm
  • 9 V / 1.67 A (QC):
    • Power: 5 W / 7.5 W / 10 W / 15 W (auto detection)
    • Transmission distance: up to 10 mm
• Standard: Qi (WPC 1.2.4)
• Transmission efficiency: approx. 70%
• PCB dimensions: 33 x 44 x 2.9 mm
• Coil dimensions: diameter approx. 50 mm

Package contents:

• 1× wireless charging module ZH-15W-QI-11

Comment:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• To achieve a maximum power output of 15 W, a QC 3.0-enabled power adapter (9 V / 1.67 A) is required
• Compatible with most devices supporting Qi wireless charging
• Ensure sufficient cooling for safe operation and observe the recommended distance between the coil and the device
