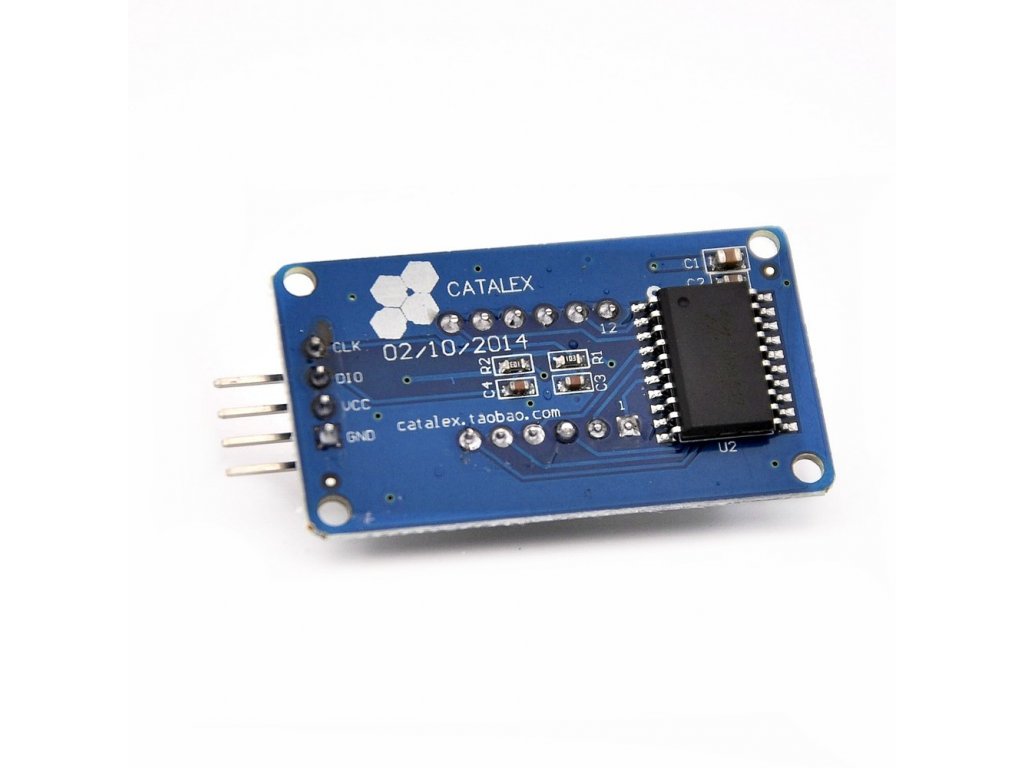

Clock display TM1637, red

Product detailed description

The four-digit 7-segment LED display with a TM1637 driver and a central colon is a cost-effective and simple solution for displaying time, numbers, or temperature. It is controlled using only two wires (CLK and DIO), minimising the number of pins required on the microcontroller, while the driver handles multiplexing and brightness control automatically. The red digits have a height of 0.36" (approx. 9 mm). It is suitable for clocks, timers, alarm clocks, counters or simple thermometers.

Specifications:

• Driver: TM1637
• Display: 4-digit, 7-segment, centre colon
• Digit size: 0.36" (approx. 9 mm)
• Decimal points: no – the 8th segment of the second digit is connected to the colon
• LED colour: red
• Power Supply: 3.3–5 V DC
• Interface: two-wire serial (CLK, DIO), not I²C
• Pins: 4 (CLK, DIO, VCC, GND)
• Brightness: adjustable in 8 levels
• Compatibility: Arduino, ESP32 and other microcontrollers (TM1637 library by Avishay Orpaz)
• Dimensions: 42 × 24 × 12 mm
• Weight: approx. 8 g
• Mounting: pre-drilled mounting holes

Package contents:

• 1× TM1637 clock display, red

Note:

• Do you need decimal points, for example for a voltmeter? Try the 8-digit 7-segment LED display with MAX7219, which features a decimal point for every digit.
• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
