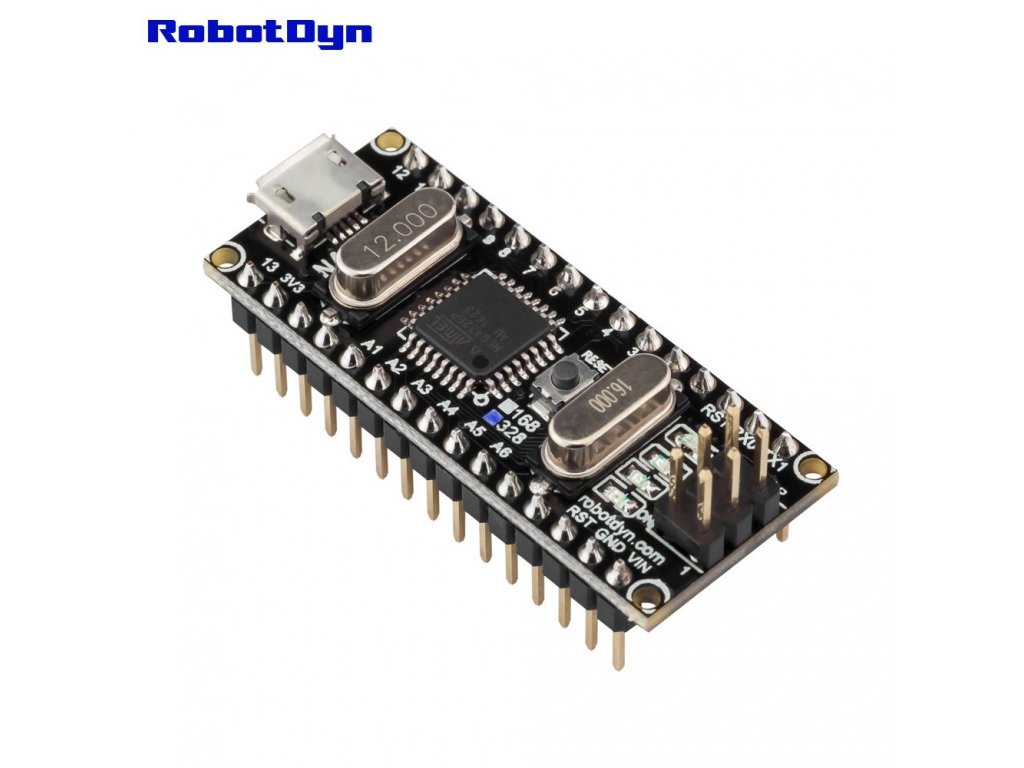

Robotdyn Arduino Nano V3, ATmega328P, Soldered pins

Product detailed description

Development board RobotDyn compatible with Arduino Nano with USB converter CH340G and microUSB.

Arduino Nano format development board. Its dimensions and pin layout make it an excellent module for various electronic designs.

Thanks to the integrated USB connector and USB converter, you can record the program to the board without any special wiring. On the software side, the board is programmed via the integrated development environment Arduino IDE, which offers a simple and clear WIRING programming language.

This board is suitable for both beginners and advanced students and its versatility makes it suitable for almost any project.

Specifications:

ATmega328P microcontroller

• CPU frequency up to 20MHz
• FLASH 32KB
• EEPROM 1KB
• SRAM 2KB
• 14x digital I/O
• 1x 10-bit ADC 6 channels
• 6 PWM channels
• 2x 8-bit timer - separate Prescaler + Compare Mode
• 1x 16-bit timer - separate Prescaler + Compare Mode + Capture Mode
• 1x programmable Watchdog timer with separate integrated oscillator
• 1x USART
• 1x SPI
• 1x I2C
• 1x analog comparator
• 1x real time circuit - RTC with separate oscillator
• Interrupt and Wake-up when changing the level on a pin
• Oscillators, reset and power management:
  • Power supply 1.8 - 5.5V
  • Power-on Reset and Programmable Low Voltage Detector (Brown-out)
  • External up to 20MHz oscillator for CPU
  • Internal 8MHz oscillator for CPU
  • Internal oscillator for RTC
• Low power mode:
  • Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby

Development board

• Plate dimensions 53mm x 22mm. Pin spacing corresponds to a standard 40pin DIP bushing - breadboard friendly
• Input voltage 5V or 3.3V
• Power supply 3,3V - maximum current consumption 180mA
• Integrated ISP programmer with CH340G converter and microUSB connector
• Reset button
• 16MHz crystal
• Integrated LEDs - Power, RX, TX and power
• Integrated LED - L program controlled
• Integrated ICSP connector
• The board can be powered via USB connector or power pins
• Weight: 15g

Delivery components:

• 1pc Robotdyn Arduino Nano V3, ATmega328P, soldered pins

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
