RobotDyn Mega 2560 PRO MINI, ATmega2560-16AU 3.3V

Product detailed description

RobotDyn Mega 2560 PRO MINI, ATmega2560-16AU, 3.3V logic

The board provides amazing measurement, monitoring and device control capabilities using a simple C++ based programming environment.

PRO MINI version of the Mega 2560. Built on Atmel ATmega2560 microcontroller.
The plate has a compact size of 38x52mm. It's a good way to save space.
A board similar to the Arduino Mega 2560 and uses the original ATmega2560 (16 MHz) chip.
The board does not have a USB interface. Use a USB-TTL converter to connect to a computer.
You can power the board through the pins. Output current for both versions is about 800mA (Please note that the higher the input voltage, the lower the output current).

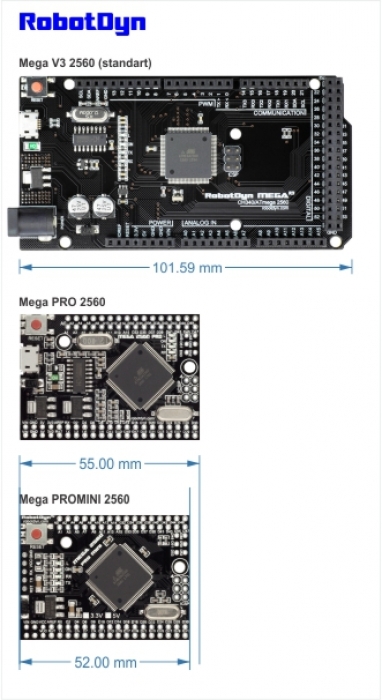

You can compare the picture with the Mega Rev3 size.

Specifications:

Microcontroller	ATmega2560
Krystal	16MHz
Flash	256kB
SRAM	8kB
EEPROM	4kB
USB - Serial Converter	not
Inputs and Outputs
Digital I/O	54
PWM	14
Analog Inputs	16
DC Current per pin	40mA
Input voltage	6-12V recommended
5V max Current	800mA
3.3V max Current	800mA
Weight	15g

Dimensions

Included in delivery:

• 1pc RobotDyn Mega 2560 PRO MINI, ATmega2560-16AU 3.3V
• 1pc Set of pins

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
