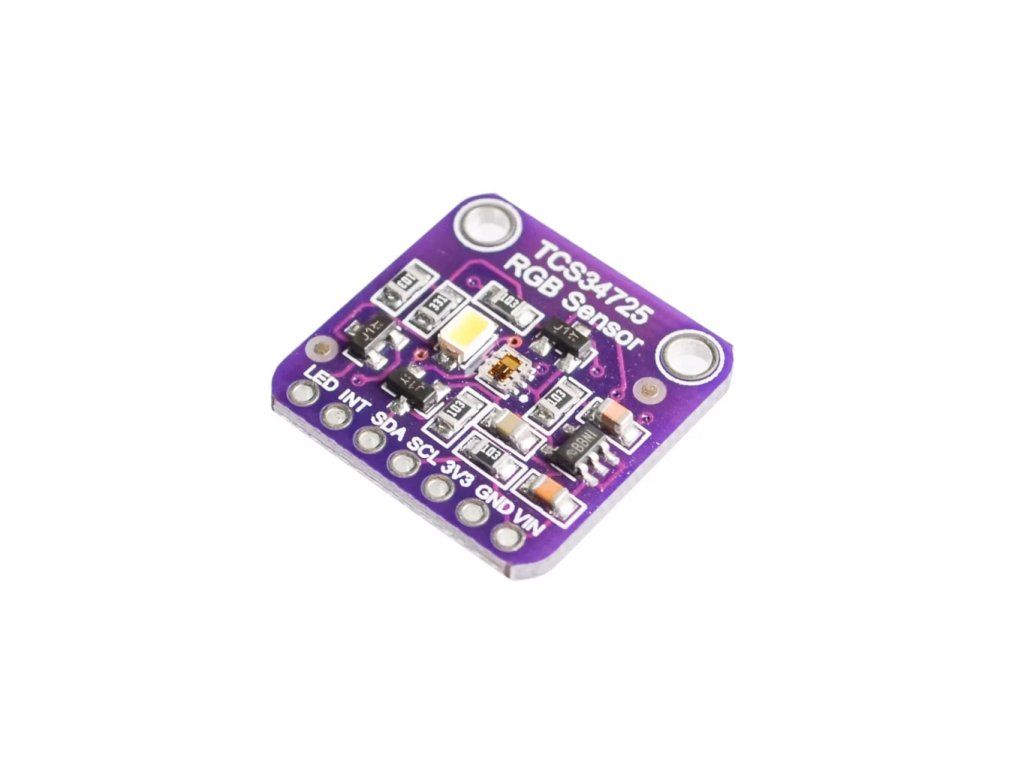

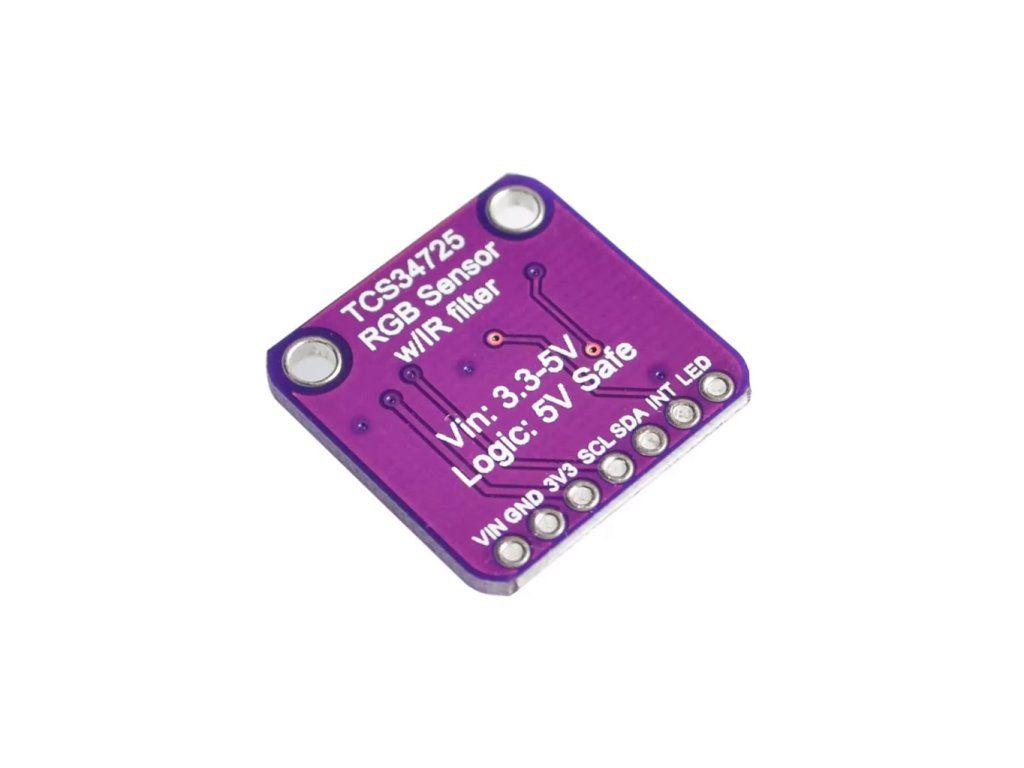

TCS34725 Light and colour detector

Product detailed description

TCS34725 is a digital colour and light intensity sensor from ams (formerly TAOS) with an integrated IR filter and I2C interface. The chip contains an array of four photodiodes with spectral filters for red, green, blue and clear (unfiltered) light – each channel is converted by a 16-bit ADC. The integrated IR filter ensures accurate colour measurement without distortion from infrared radiation in the ambient light. The sensor is suitable for colour detection and sorting, display backlight control, liquid analysis or LED lighting calibration in projects with Arduino and ESP32.

Specifications:

• Interface: I2C (standard and fast mode, up to 400 kHz)
• I2C address: 0x29 (fixed)
• Power supply: 2.7 V – 3.6 V DC
• Current consumption: typically 235 μA (active), 2.5 μA (sleep)
• Measured channels: R, G, B and Clear – each 16-bit
• Dynamic range: 3 800 000 : 1
• Adjustable gain: 1×, 4×, 16×, 60×
• Integration time: 2.4 ms – 700 ms (programmable)
• Features: IR filter, threshold interrupts, power-saving wait state
• Pins: VDD, GND, SCL, SDA, INT (interrupt)
• Compatibility: Arduino, ESP32, Raspberry Pi (recommended Adafruit TCS34725 library)
• Operating temperature: −30 °C to +70 °C
• Chip dimensions: 2 × 2.4 mm (SMD package FN-6)

Package contents:

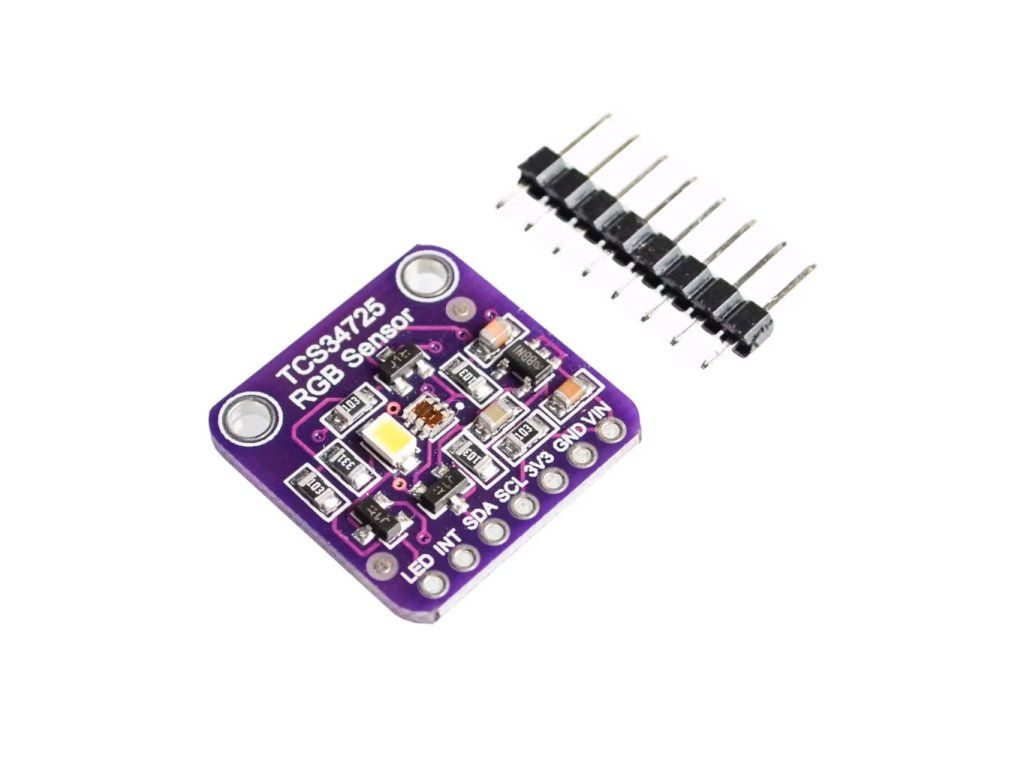

• 1× TCS34725 Light and Colour Detector

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
