FM radio 76MHz - 108MHz TEA5767

Product detailed description

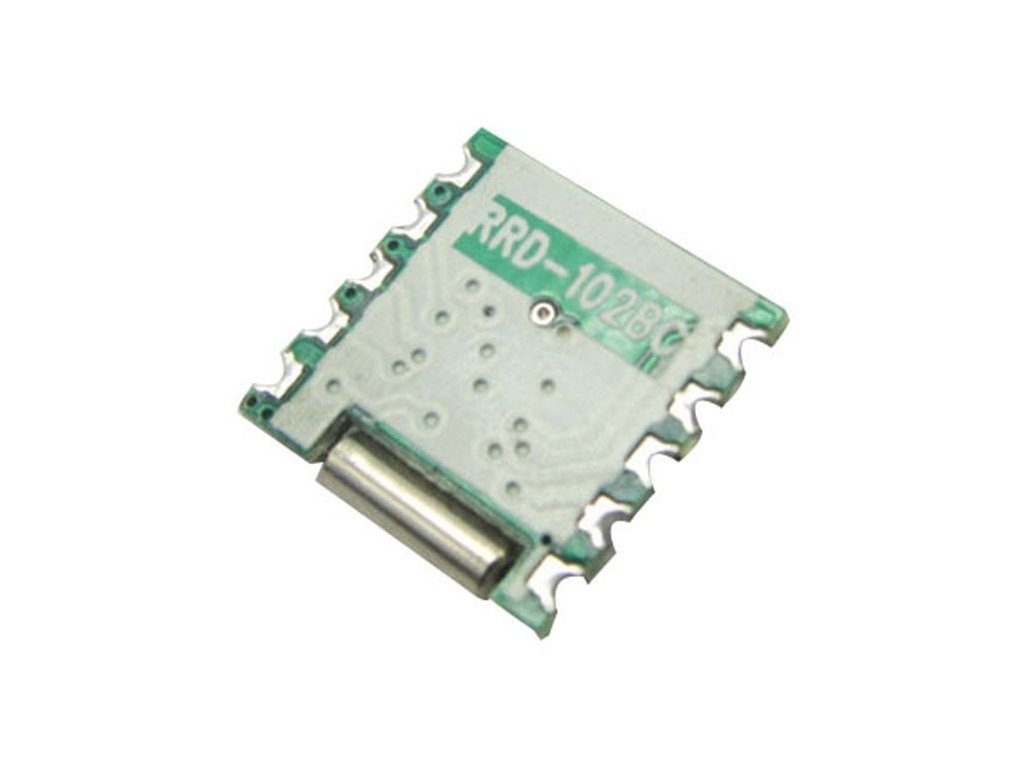

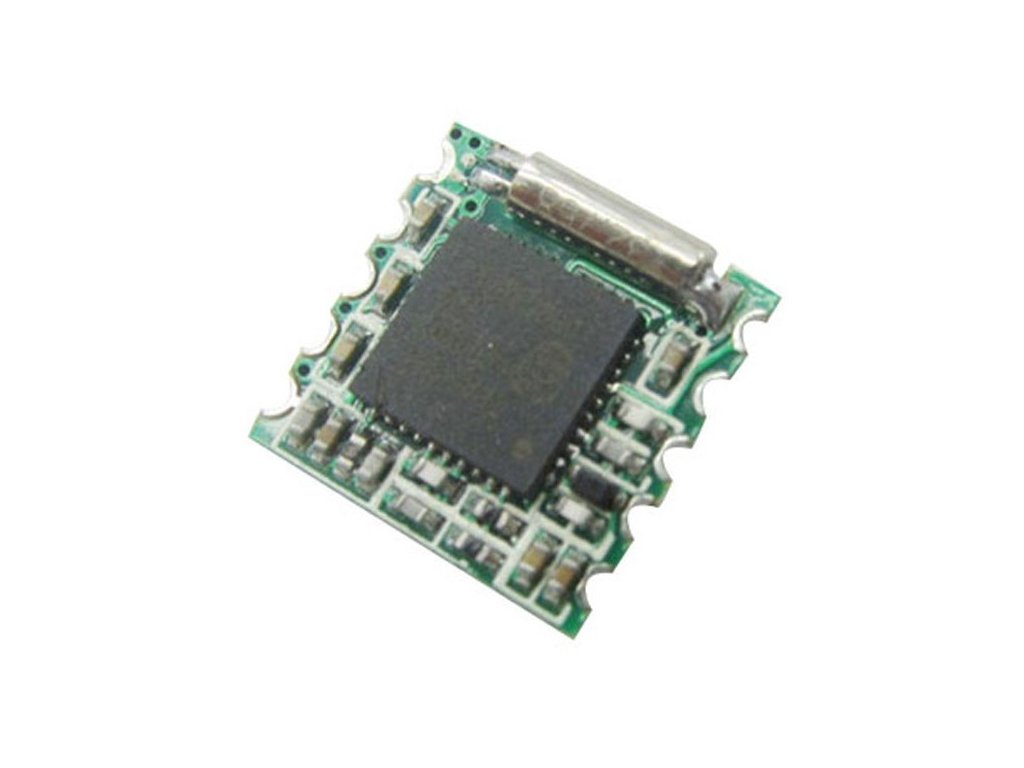

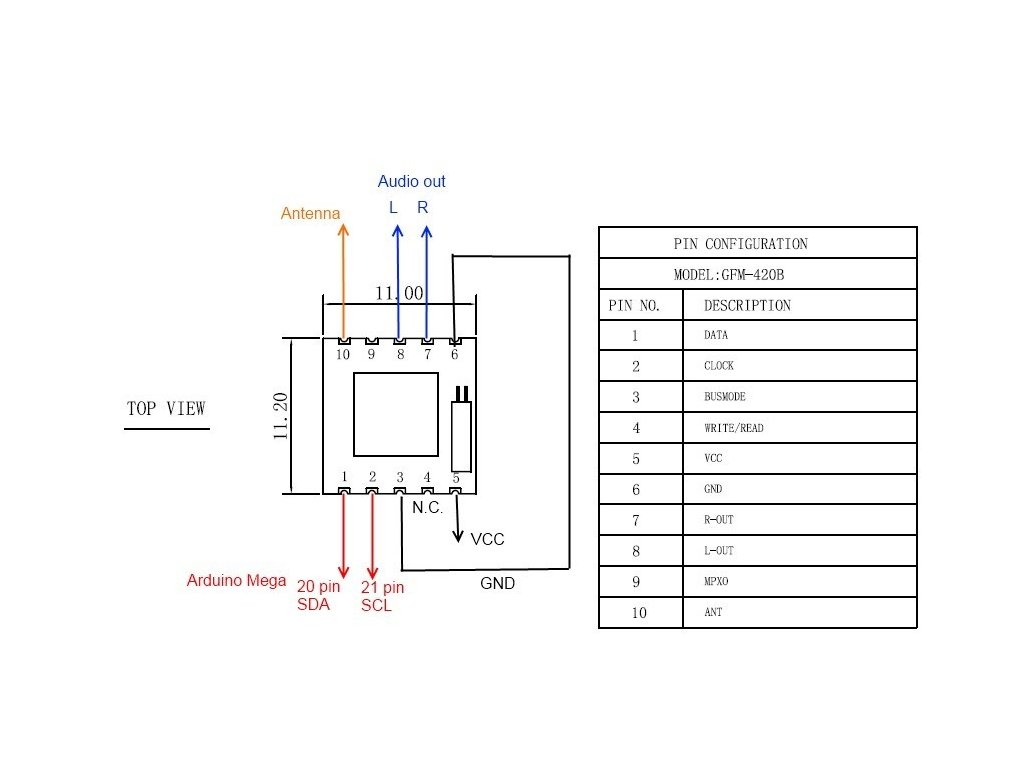

Miniature complete DSP radio receiver module for FM (86-106MHz). It is equipped with a TEA5767 integrated circuit - ideal for building a simple digitally controlled radio with Arduino. You connect only two outputs for communication with Arduino, power supply, output to the amplifier (headphones) and a piece of wire as an antenna.

Specifications:

• Chip: Philips TEA5767
• Frequency range: 76 Mhz to 108 Mhz
• I2C interface (400kHz max!)
• Power supply: 2.8-5V
• Headphone output
• Size: 11x11mm

Included in delivery:

• 1pc FM radio 76MHz - 108MHz TEA5767

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
