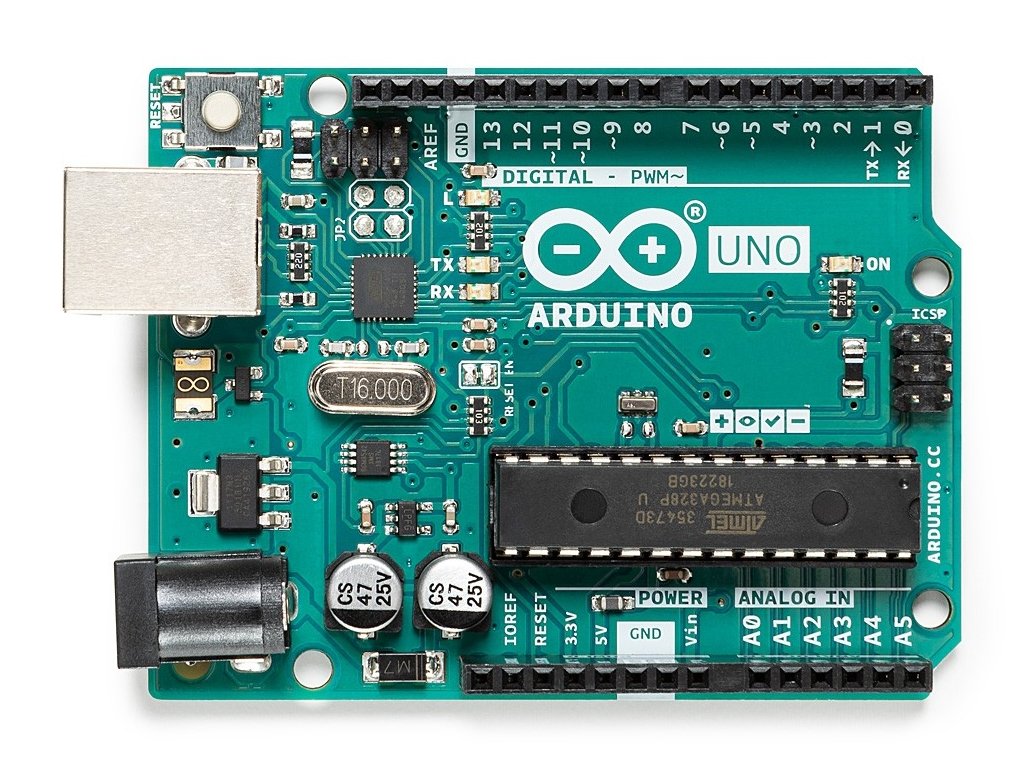

Arduino Uno rev3, original

Product detailed description

The most legendary Arduino board on the market. Thanks to its popularity, versatility, and community, the Arduino Uno rev3 is an ideal board for both beginners and advanced users. It offers an excellent price/performance ratio and a huge amount of available shields and extensions.

Thanks to the ATmega16U2 converter and integrated USB connector, you can upload a program to the board without external electronics. The ATmega328P microcontroller is mounted in a socket in the board and can therefore be used in your own construction. The board also offers a standard coaxial power connector, which can be used to power the board, for example from a battery or a mains adapter. On the software side, the board is programmed via the integrated Arduino IDE development environment.

This board is suitable for both beginners and advanced hobbyists, and thanks to its versatility and extensive documentation, it can be used in almost any project.

Specifications:

Development Board:

• Reset button
• Input voltage: 6 – 12V – 5.5/2.1 coaxial power connector
• Output voltage:
  • 5V – maximum current draw 800mA
  • 3.3V – maximum current draw 180mA
• USB Connector: USB-B with CH340G converter
• Programming Connector: ICSP
• LED: power, RX, TX, LED "L" (digital pin 13)
• Weight: 22 g

Delivery components:

• 1x Arduino Uno rev3, original

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
