µArt.cz 1S3P LTO battery with BMS

Product detailed description

Battery systems using LTO cells (Lithium-Titanate Oxide) represent a specific, but very interesting area of battery technology. Compared to standard Li-ion cells, they have a lower nominal voltage (approximately 2.3 V per cell), but excel in extreme lifespan, high safety and rapid charging. However, for their correct and effective management, a customised battery management system is required – known as BMS (Battery Management System).

The project is based on a decentralised approach, where each cell has its own board with a microcontroller and measuring circuits that communicate with the main control unit. Commonly available components and open communication protocols were used, making the whole system easily replicable and expandable. The article also serves as inspiration for other developers and tinkerers looking for practical solutions for their own battery storage.

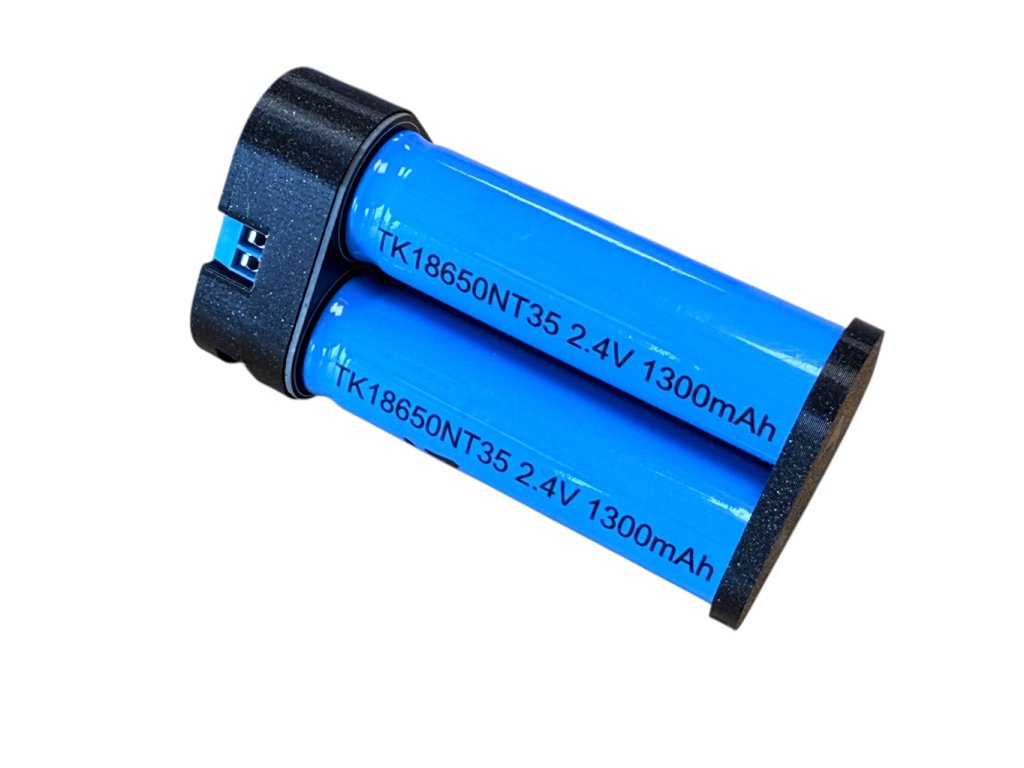

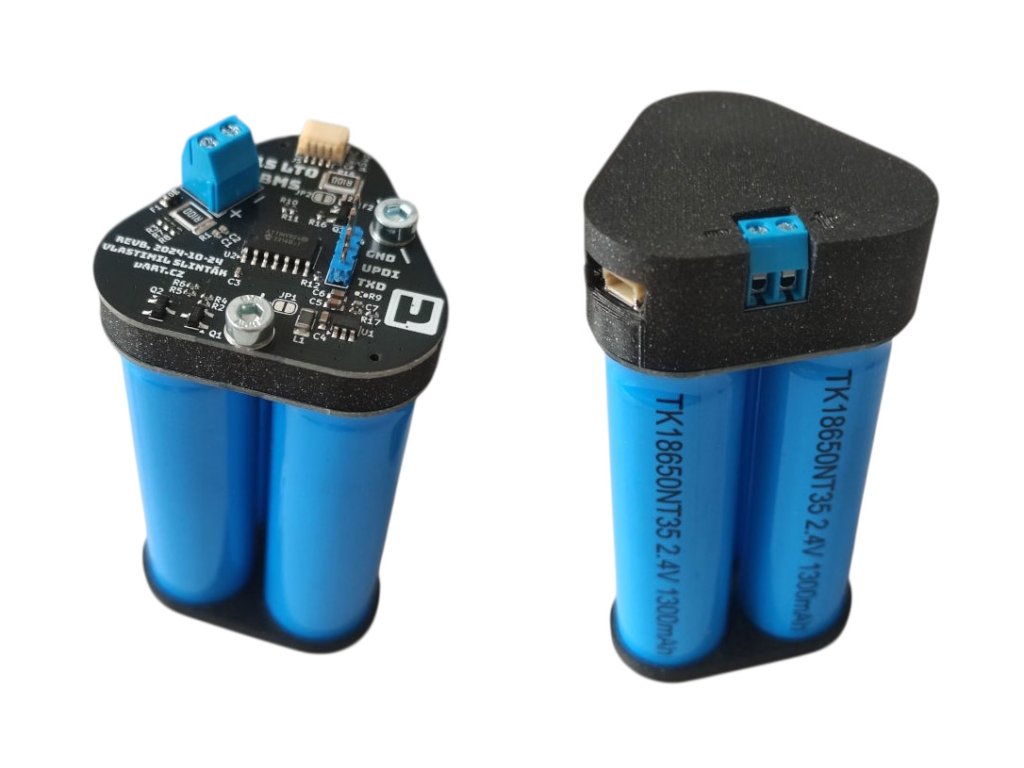

The µArt.cz 1S3P LTO battery with BMS is a compact battery module composed of three LTO cells connected in parallel (1S3P), supplemented by its own BMS development unit designed for precise monitoring of cell status and safe use. It is ideal for testing, tinkering and as a basic cell for larger battery packs.

Key features:

• Developed for: µArt.cz Meshtastic baseboard
• Configuration: 1S3P – one cell in series, three in parallel
• Cell type: LTO (Lithium-Titanate)
• Long service life – up to 20,000 cycles
• High safety and mechanical stability
• Integrated BMS for voltage monitoring and communication

Specifications:

• Nominal voltage: 2.4 V
• Capacity: 3.9Ah
• BMS interface: I²C
• Dimensions: 83 x 42.7 x 41 mm

Package contents:

• 1× assembled LTO battery module 1S3P
• 1× cabling for connection and testing

Comment:

• This product is not intended for direct use without professional installation and supervision.
• More information and development notes can be found directly in the article on uart.cz.
• The battery or accumulator that may be included in the product is subject to a six-month lifetime as it is a consumable.
