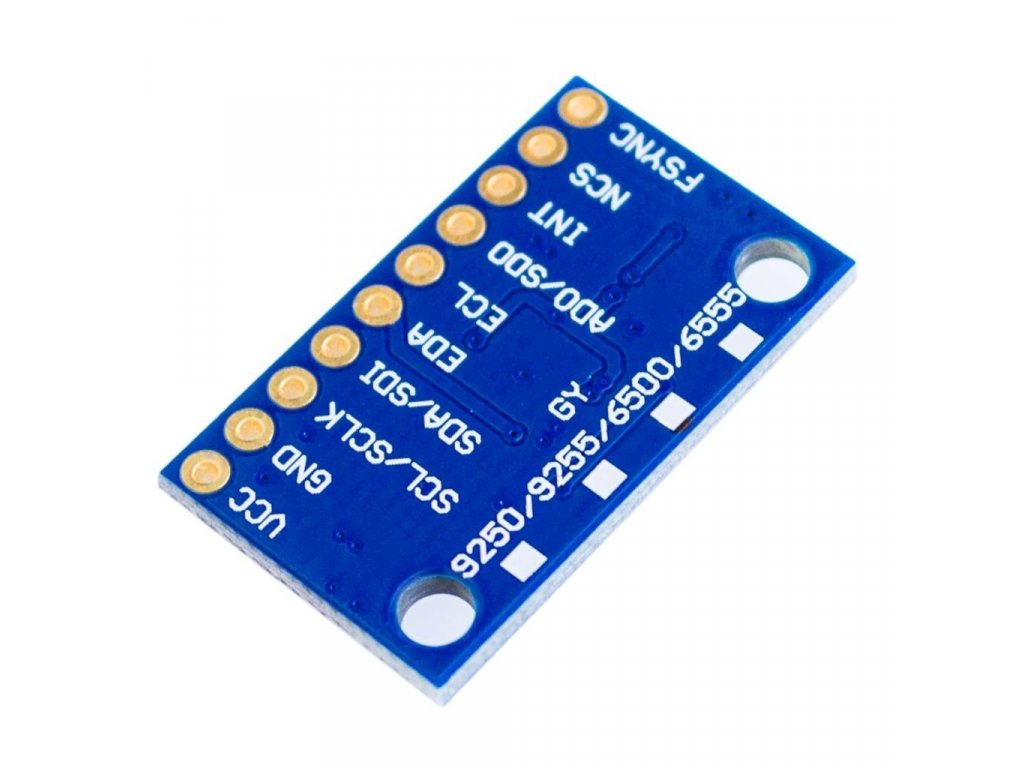

3-axis Gyroscope + Accelerometer MPU-6500 SPI/IIC

Product detailed description

The MPU-6500 is an advanced 6-axis motion sensor combining a 3-axis gyroscope and a 3-axis accelerometer in a single chip. Thanks to its compact size, low power consumption and high precision, it is ideal for applications such as camera stabilisation, drones, robotics or wearable electronics. It offers SPI or I2C connectivity, allowing easy integration with most microcontrollers including Arduino and ESP32.

Specifications:

• Model: MPU-6500
• Sensor type: 6-axis (3-axis gyroscope + 3-axis accelerometer)
• Communication interface: I2C (up to 400kHz), SPI (up to 1MHz)
• Supply voltage: 3 – 5V DC (typically 3.3V)
• Gyroscope ranges: ±250, ±500, ±1000, ±2000 °/s
• Accelerometer ranges: ±2g, ±4g, ±8g, ±16g
• Digital output: 16bit ADC for each channel
• Built-in digital filter: Yes (DLPF)
• Operating temperature: -40 to +85 °C
• Module dimensions: 25 x 15 x 1.2mm
• Weight: 2g
• Suitable for platforms: Arduino, ESP32, STM32, Raspberry Pi and others

Package contents:

• 1× MPU-6500 module
• 1× Pin header (unsoldered)

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
