LaskaKit LiPol Battery 503035 500mAh 3.7V JST-PH 2.0

Product detailed description

The Lithium Polymer (Li-Po) battery 503035 with a capacity of 500mAh is a thin, lightweight, and powerful accumulator with a nominal voltage of 3.7V (4.2V when fully charged). The energy capacity is approximately 1.85Wh. The battery is equipped with a protection circuit against overcharging, over-discharging, and short circuits.

The battery includes a protection circuit that maintains the battery's voltage so it is not too high (overcharging) or too low (over-discharging), meaning the battery will be disconnected once discharged to 3.0V. This circuit also protects the battery from short circuits. However, even with this protection, it is very important that you only use a LiIon / LiPoly CV/CC charger. We recommend using our TP4056 Li-ion cell charger and setting the required current with a jumper.

If you need larger (or smaller) batteries, we have a whole range of LiPoly batteries

Specifications:

• Type: Li-Pol 503035
• Capacity: 500mAh (measured at 0.2C)
• Nominal Voltage: 3.7V
• Charging Voltage: 4.2V
• Standard charging current: 100mA (0.2C)
• Max. charging current: 500mA (1C)
• Max. discharge current: 250mA (0.5C)
• Over-discharge Protection: 3.0V
• Overcharge Protection: 4.26V

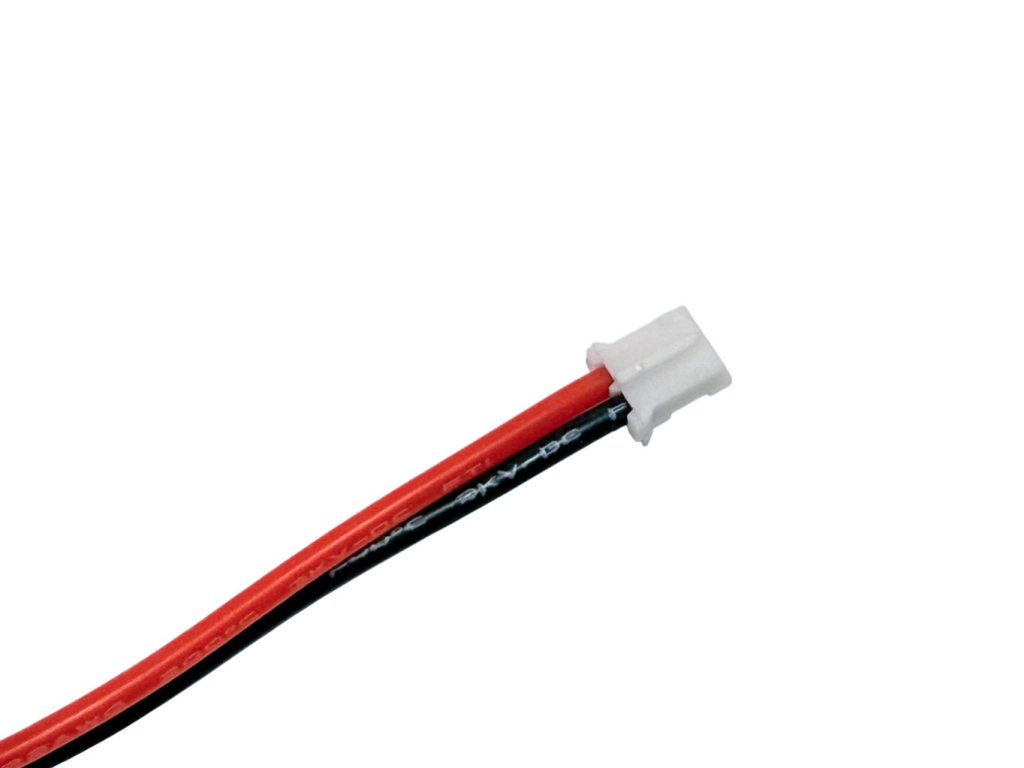

• Connector: JST-PH 2.0, wire length 10cm
• Dimensions: 35 x 30 x 5 mm
• Weight: 11.3g
• Operating Temperature (Discharge): −20 to 60°C

Package contents:

• 1× LaskaKit LiPol Battery 503035 - 500mAh, 3.7V, JST-PH 2.0

Important Notice and Safety:

• The user bears full responsibility for correct use, charging, and installation. Improper handling may cause fire, injury, or property damage.
• Charge exclusively with a charger designed for Li-Ion / Li-Pol cells (CC/CV mode 4.2 V).
• Do not use NiMH/NiCd chargers.
• Recommended charging is 0.2C or lower for maximum lifespan.
• Never short-circuit, puncture, crush, or mechanically damage the battery.
• Do not charge or use the battery unattended.
• Do not expose to high temperatures, direct sunlight, or fire.
• Protect from water and moisture.
• If any swelling, odor, overheating, or change in shape occurs, stop using the battery immediately.
• When disposing, always insulate the contacts against short circuits.

Notes:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
