Motion detector Microwave Doppler radar HW-MS03

Product detailed description

Motion detector Microwave Doppler radar HW-MS03

It uses Doppler radar technology to detect motion. Signals can pass through doors, glass and thin walls. This sensor can control another product.
A microwave planar antenna that receives echoes.
Better response - if a person or object moves towards the sensor.

Specifications:

• Sensing distance: approx. 10m
• Detection angle: 180°
• Power supply: 3.7-24V DC
• Current consumption: 5-6mA
• Transmitting power: <2 mW
• Output signal: 3.3V / <0.1A

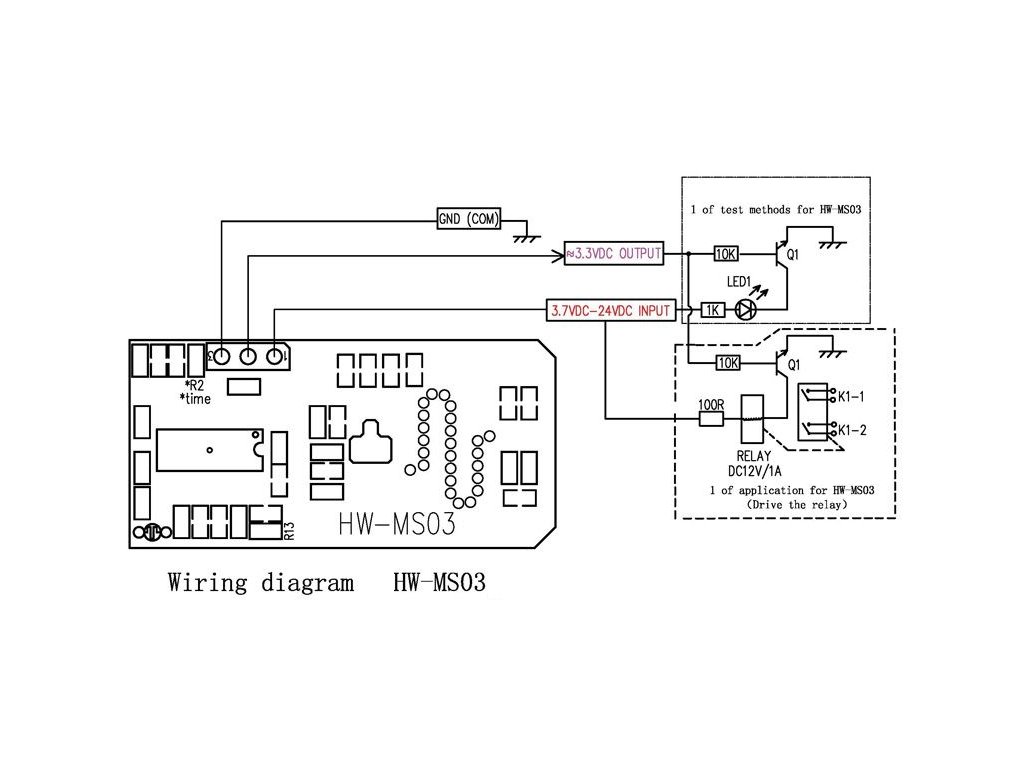

• Time delay: approx. 2s (R2 = 10k) - may vary depending on the value of resistor R2
• Dimensions: 40x20x3mm

Delivery components:

• 1pc Motion Detector Microwave Doppler Radar HW-MS03

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
