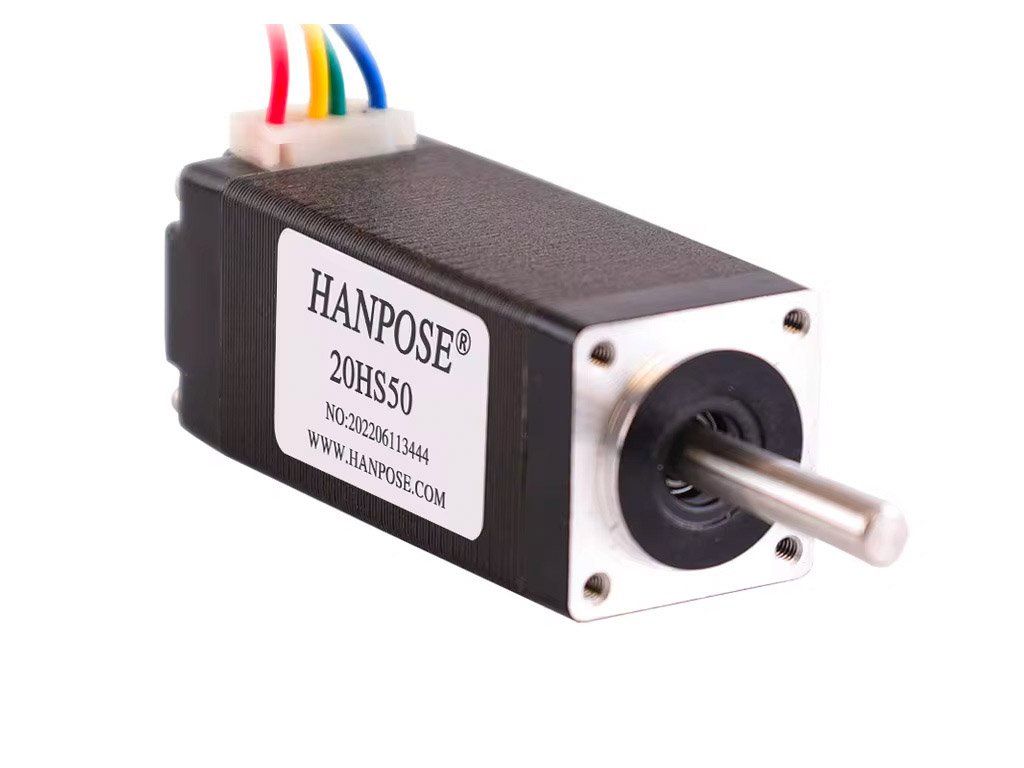

Stepper motor NEMA 8 20HS50 0.04Nm

Product detailed description

The NEMA 8 (20HS50) stepper motor is a compact bipolar motor with a 1.8° step angle and higher torque than the shorter 20HS34 variant. Thanks to its longer body (50 mm), it offers a holding torque of 0.04 Nm, making it ideal for more demanding applications in 3D printers, small CNC machines, robotics, and laboratory automation. It is controlled using standard stepper drivers such as the A4988, DRV8825, or TMC2208.

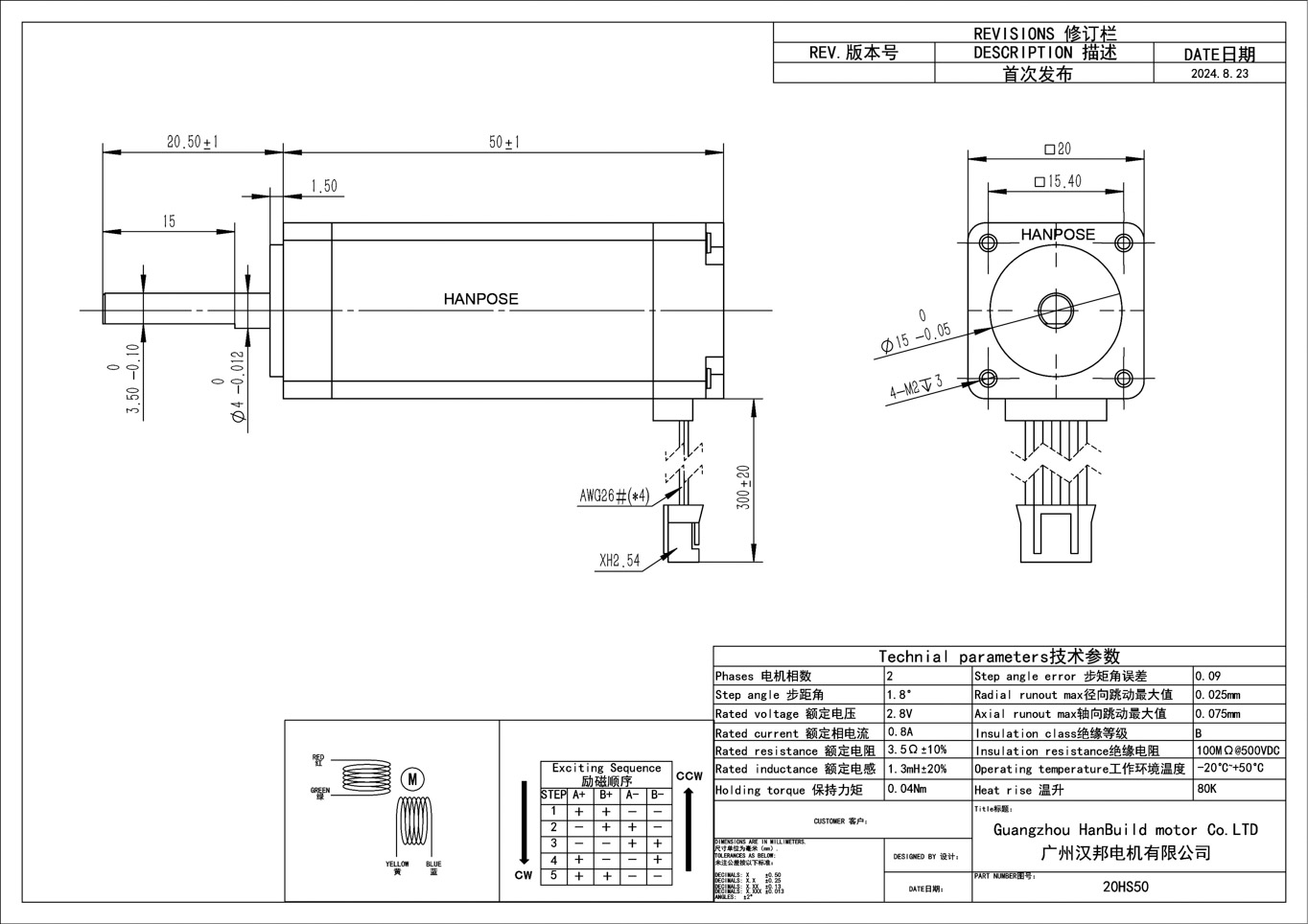

Specifications:

• Standard: NEMA 8

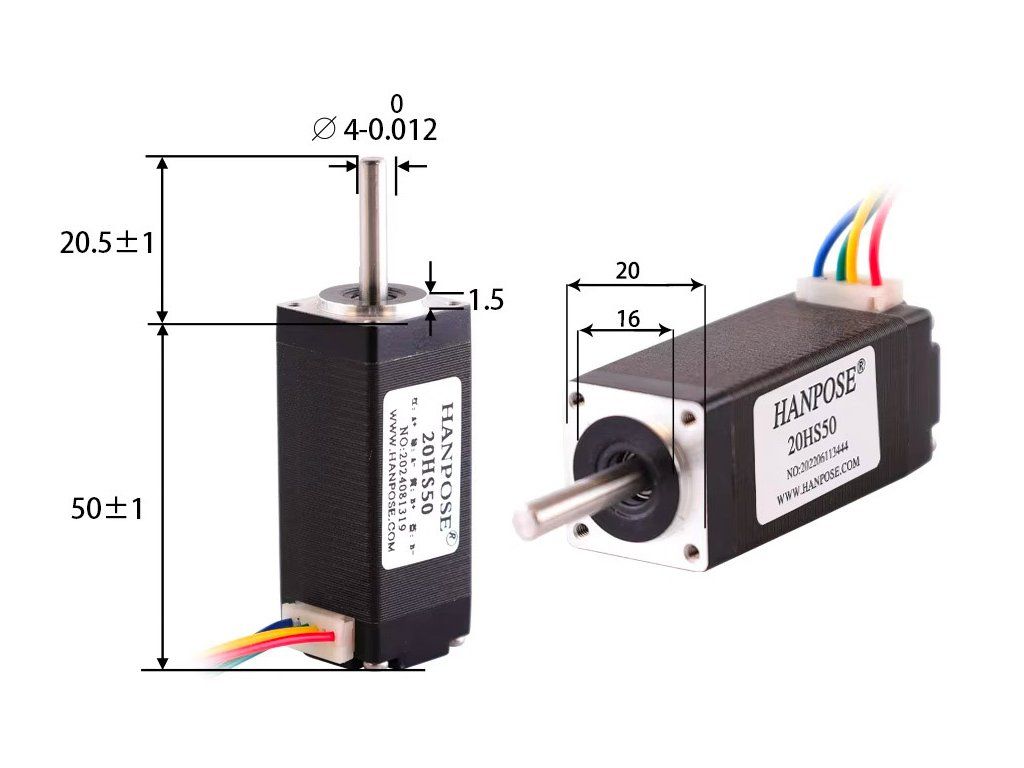

• Body dimensions: 20 × 20 mm
• Body length: 50 mm
• Step angle: 1.8° (200 steps/revolution)
• Type: bipolar, 2 phase
• Number of conductors: 4
• Rated current: 0.6 A / phase
• Winding resistance: 6 Ω / phase
• Inductance: 4.5 mH / phase
• Holding torque: 0.04 Nm
• Shaft diameter: 4 mm
• Weight: approx. 90 g
• Compatible drivers: A4988, DRV8825, TMC2208 and others

Package contents:

• 1× NEMA 8 20HS50 Stepper Motor

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
