LaskaKit ESPlan Round 1.3" IPS 320x320 ESP32 LAN8720A

Product detailed description

While the ESP32 has built-in Wi-Fi and Bluetooth interfaces, sometimes it needs to be expanded with Ethernet and a display. That's why we created ESPlan, which has all four of the listed peripherals on a single board. Need to communicate via Wi-Fi? No problem. Bluetooth? You can use that one too. And if you need to send data to a server via Ethernet? Clearly! Plus, the board can be powered via PoE, so you don't have to worry about power!

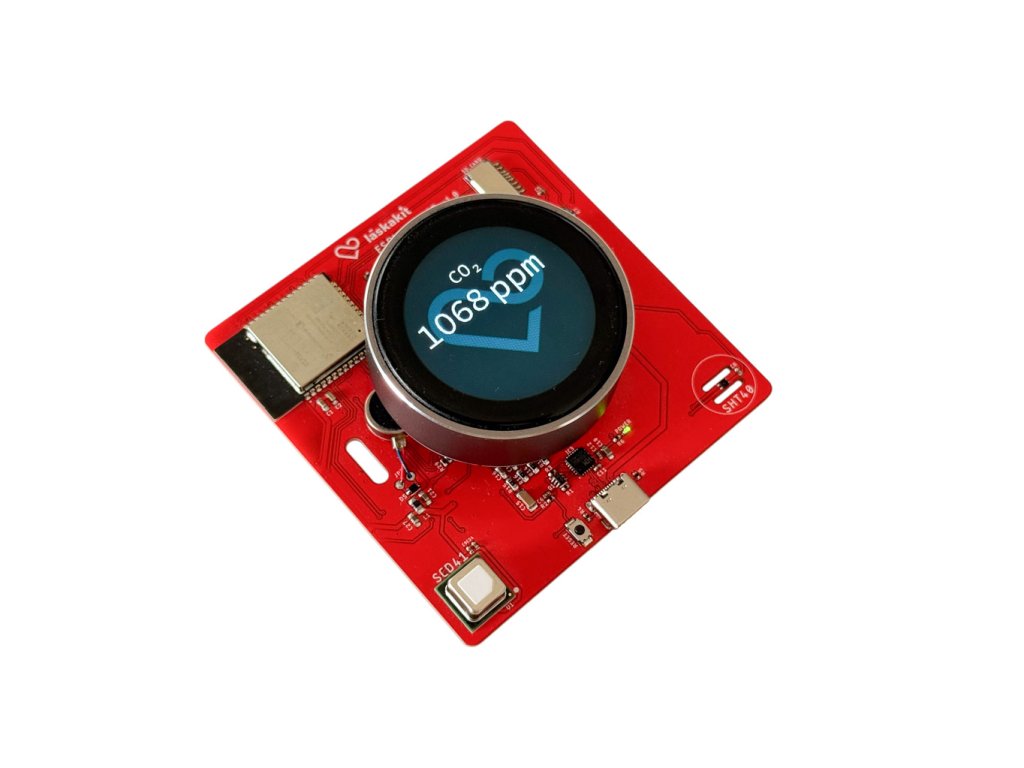

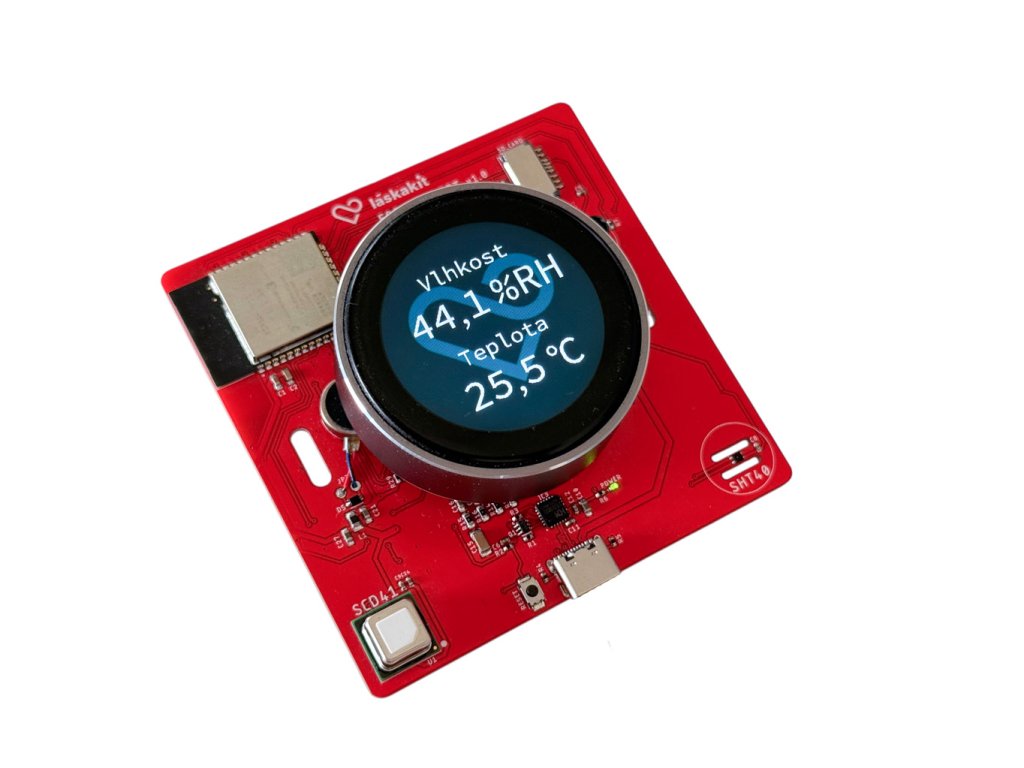

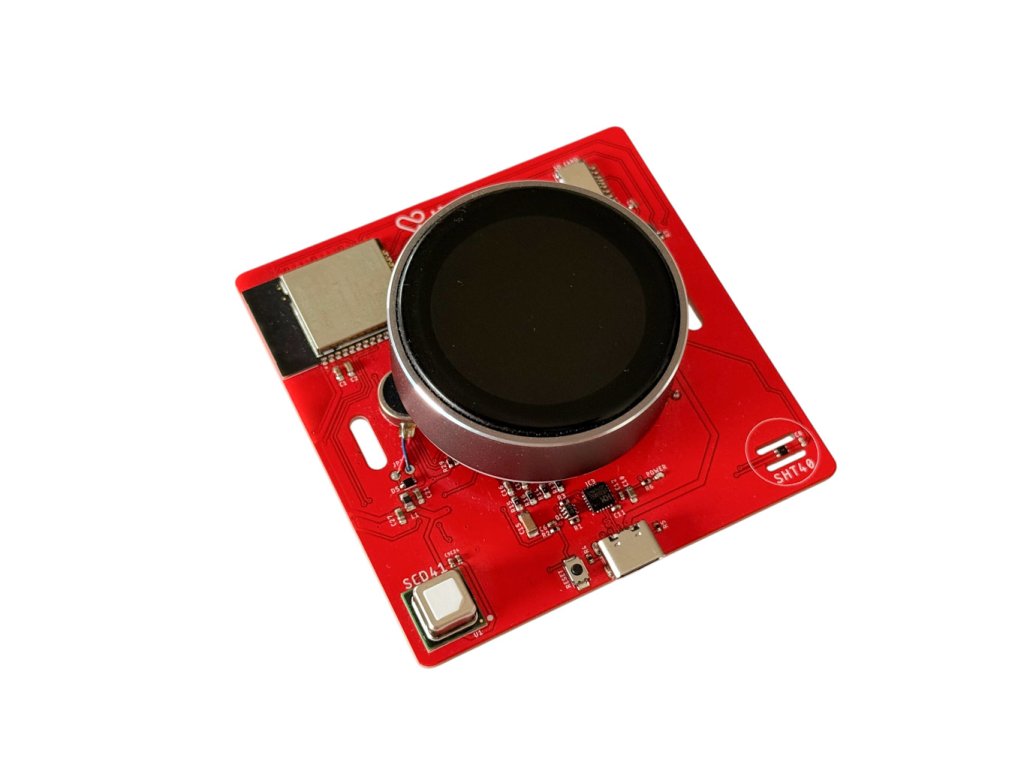

This version is also equipped with a round TFT display (which also functions as an encoder) and humidity, temperature, and CO2 sensors. This makes it ideal for smart homes, such as a thermostat or smart switch.

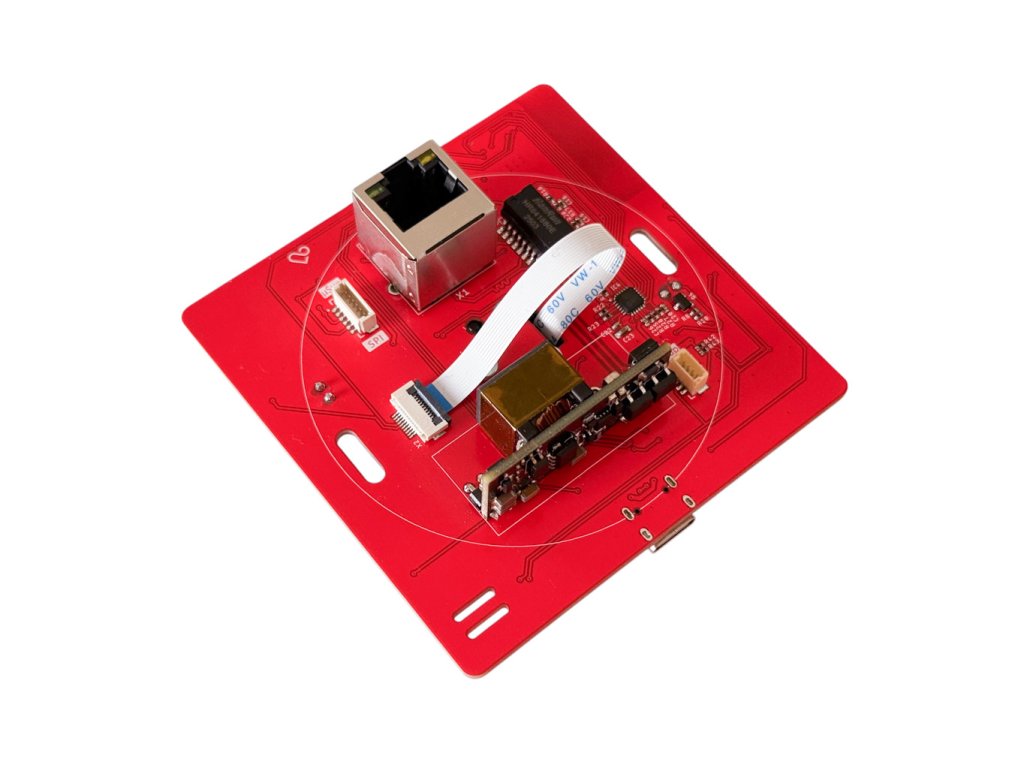

To support PoE, you need a 5V PoE module, which you can also find in our e-shop.

As a LAN controller, we used the proven LAN8720A, which is supported in both HomeAssistant and ESPhome, meaning you can easily connect this board directly to your smart home or workshop.

The USB-C connector provides both power (if you are not using a PoE module) and programming. The programmer is on the board. No need to press buttons to get the ESP32 into bootloader mode so it can be programmed - ESPlan can do it itself.

The entire board is powered by a SY8089 switching converter with high efficiency (max 96%), which creates a stable 3.3V/2A power supply from 5V.

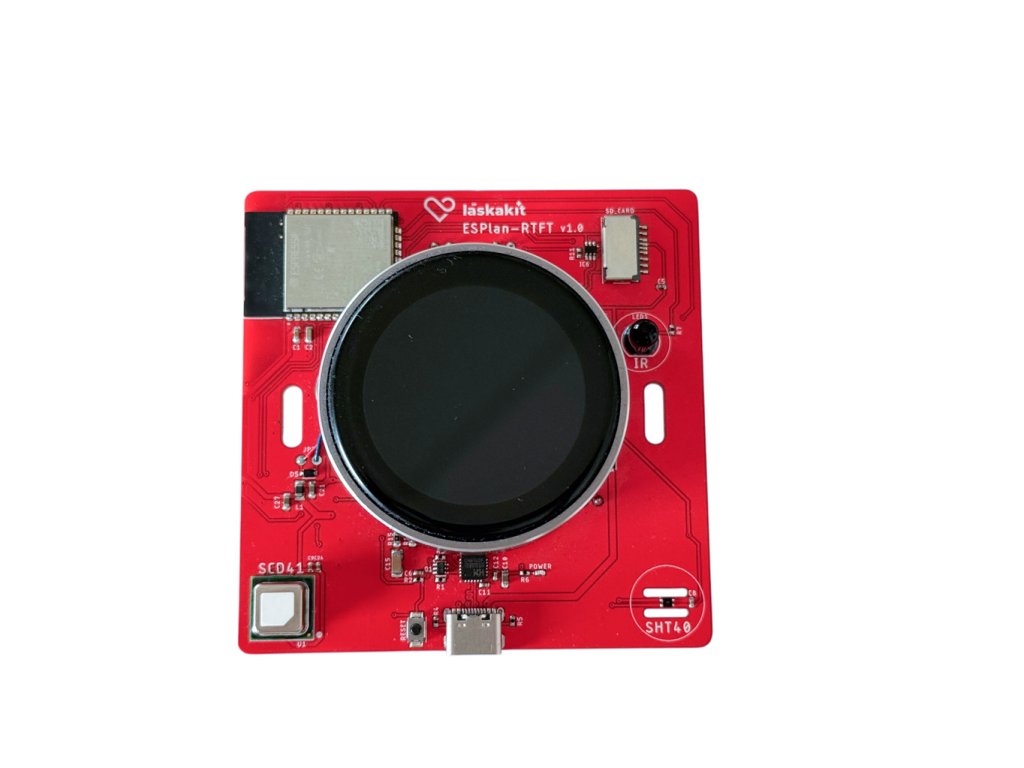

On the board, in addition to RJ45 and USB-C, you will also find our uŠup connector for connecting sensors (temperature, humidity, CO2, pressure, ...) and a GPIO header with exposed GPIOs, which allow you to connect your own devices.

Specifications:

Delivery components:

• 1pcs LaskaKit ESPlan Round 1.3" IPS 320x320 ESP32 LAN8720A

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• A 3D printed box is not included, you can print it.
