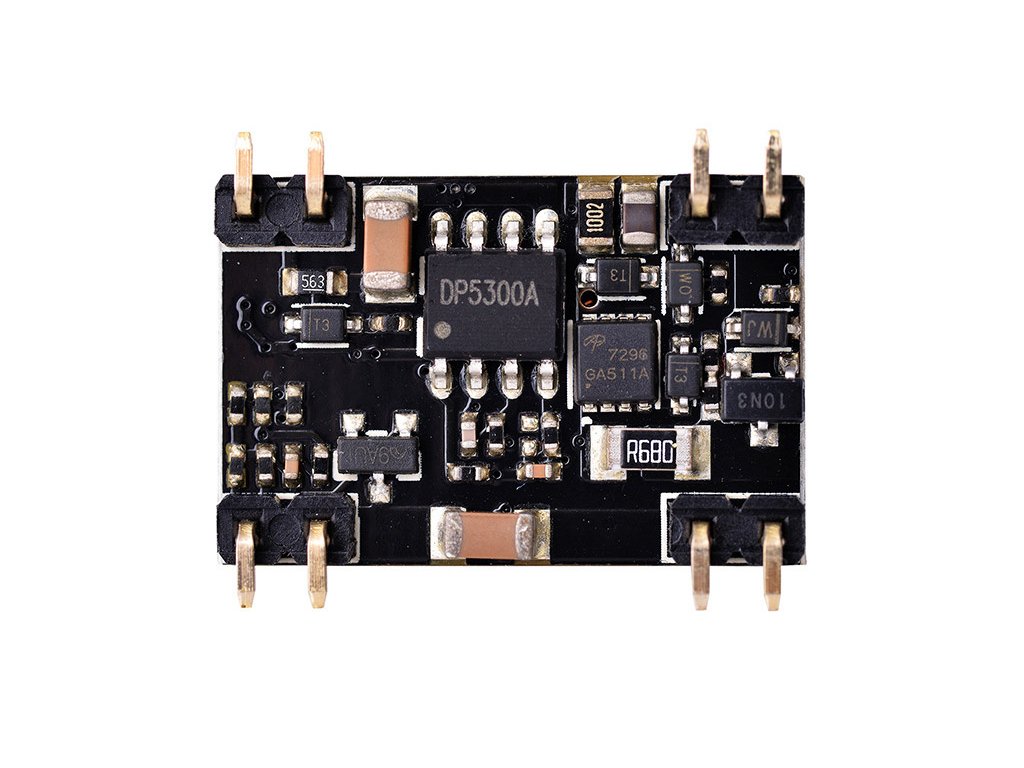

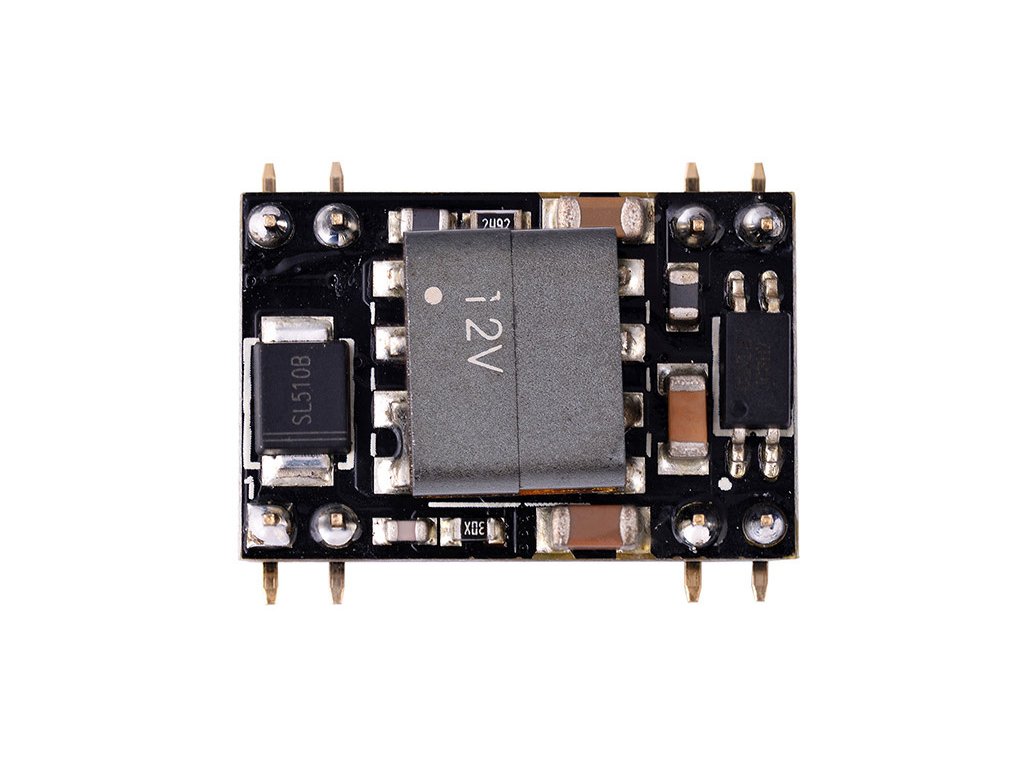

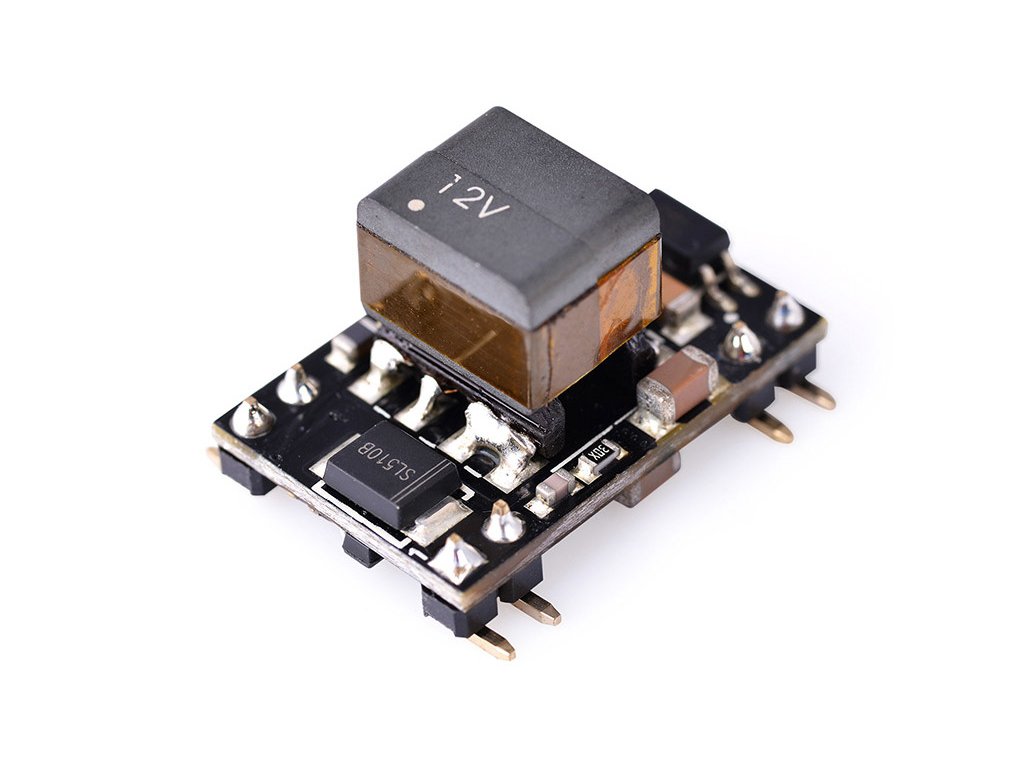

SDaPo DP9900M PoE module IEEE 802.3af

Product detailed description

SDaPo DP9900M is an integrated PoE (Power over Ethernet) PD (Powered Device) power module with galvanic isolation, fully compatible with the IEEE 802.3af standard. The module allows devices to be powered directly from the Ethernet network without the need for an external power source and is designed for industrial and commercial applications, such as IP cameras, VoIP phones, access control systems, or wireless access points. Three output voltage variants are available: 5 V, 12 V, and 24 V.

Specifications:

• Type: PoE PD module with galvanic isolation
• Standard: IEEE 802.3af
• Input Voltage: 36–57 V DC (PoE)
• Output Voltage: 5 V / 12 V / 24 V (depending on variant)
• Maximum Output Power: up to 12 W
• Maximum Output Current: 1.8 A (5 V), 1.0 A (12 V), 0.5 A (24 V)
• Efficiency: up to 88 %
• Insulation Voltage: 1500 V DC (input/output)
• Protections: overload and short circuit
• Output Ripple: low (depending on variant, typically 110–240 mVp-p)
• Output Adjustment: fine voltage adjustment possible via ADJ pin
• Temperature Range: −40 °C to +85 °C
• Ethernet Compatibility: Fast Ethernet / Gigabit Ethernet

Package contents:

• 1x SDaPo DP9900M PoE Module (Selected Voltage Variant)

Comment:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic characteristics.
• PoE power requires a compatible PoE injector or switch.
