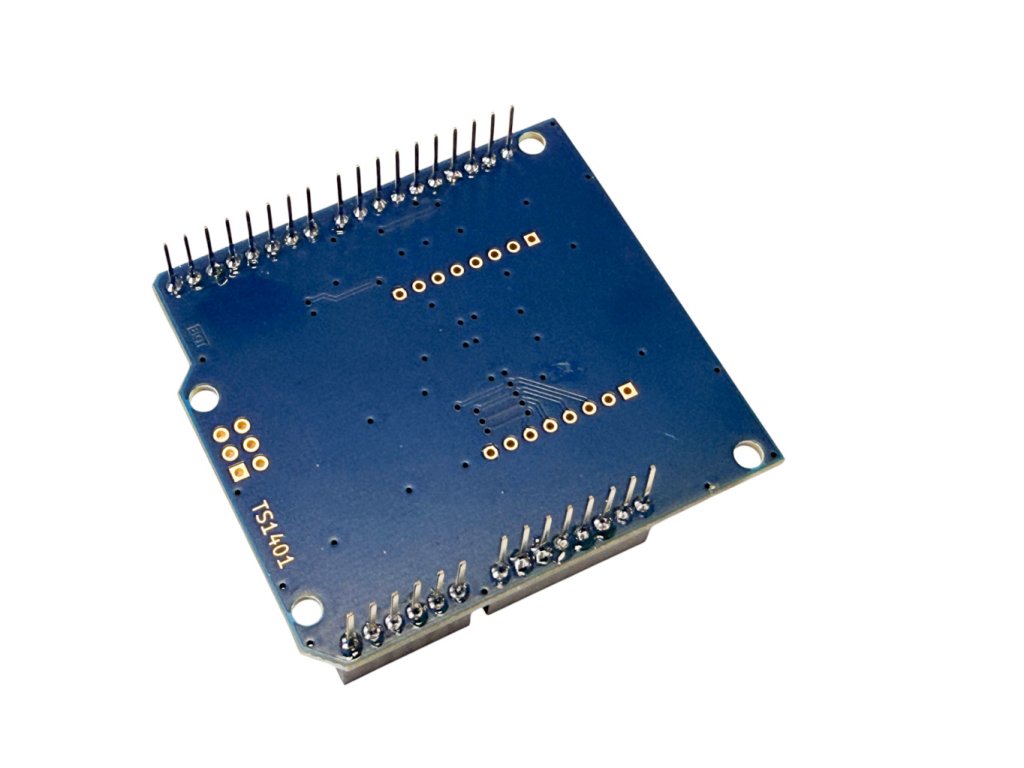

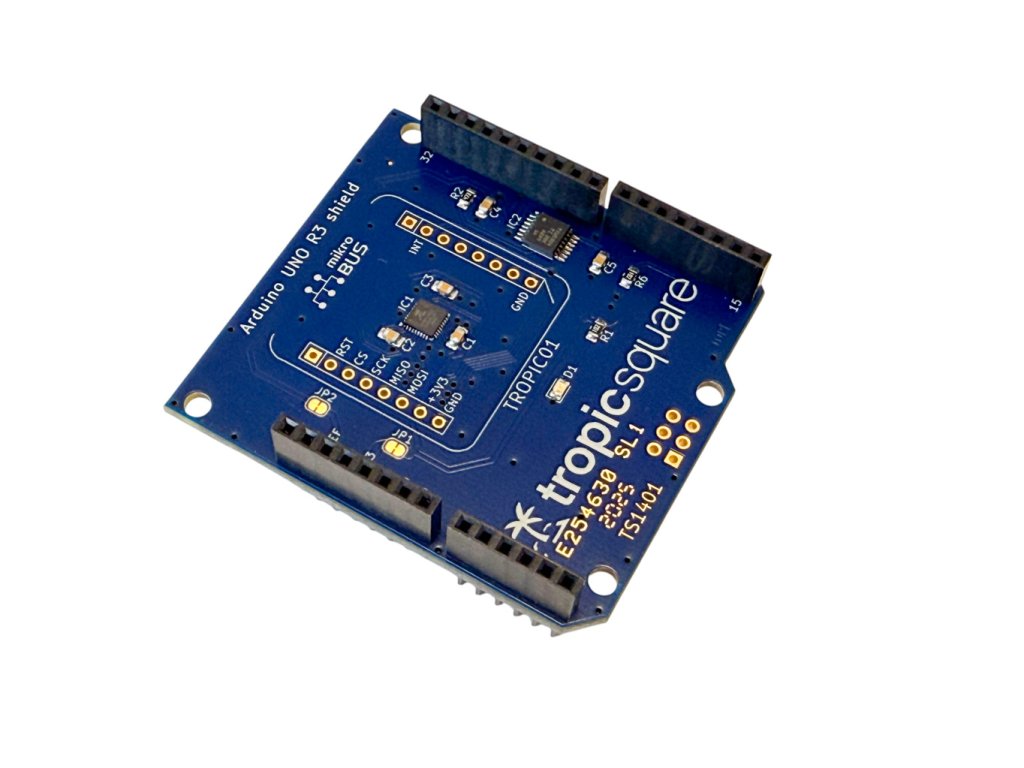

Tropic Square TS1401 Arduino Shield

Product detailed description

The Tropic Square TS1401 is an Arduino development shield designed for integration with a development board featuring the TROPIC01A chip from the Czech company Tropic Square. This shield provides easy access to the security features of the TROPIC01 chip via a standard Arduino interface and enables the development, testing, and prototyping of applications with an emphasis on secure processing of cryptographic operations.

Specifications:

• Compatibility: Arduino UNO R3
• Main chip: Tropic Square TROPIC01A (transparent security chip)
• Interface: SPI
• Security features: Cryptographic acceleration, TRNG (True Random Number Generator), secure storage
• Power supply: 3.3V from Arduino board
• Connectors: Standard Arduino headers for easy insertion into the motherboard
• Debugging options: UART debug port, LED status indication
• Development support: Available open-source library and reference firmware

Package contents:

• 1× Tropic Square TS1401 Arduino Shield

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• After mounting the shield, please check that the pins from the bottom side do not touch the component housings on the bottom plate! This could cause a short circuit and destroy the shield or even the motherboard. Goods damaged in this way are not covered by the warranty!
