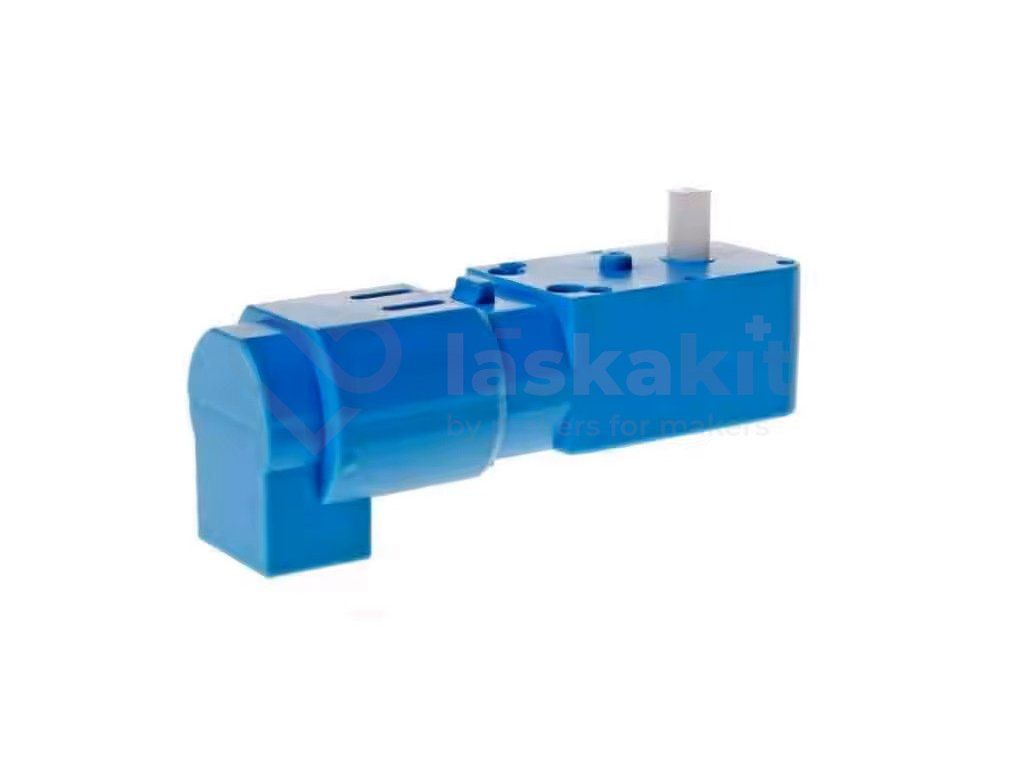

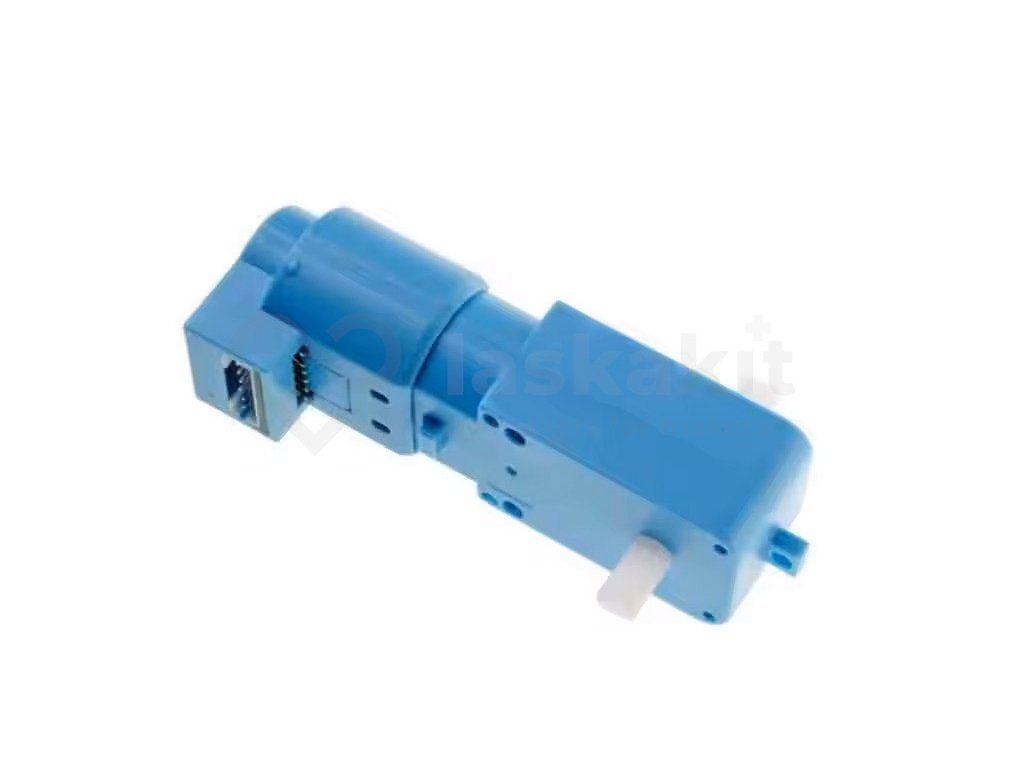

TT motor with plastic gearbox 6V 1:90, AB Encoder

Product detailed description

Motor with 90:1 gear ratio, 110 rpm, torque 2.4 kg*cm. The device features a quadrature encoder with a resolution of 8 pulses per revolution (4 from channel A and 4 from channel B, after conversion 990 pulses per revolution). The motor is ideal for use in mobile robots.

Specifications:

• Encoder voltage: 3.3V or 5V
• Motor voltage: 6V (2V - 9V)
• Gear ratio: 90:1
• Encoder: 8 pulses per revolution (after converting 990 pulses per revolution)
• Connection: JST-PH-6
• Suitable cable JST-PH-6 2mm 6pin connector with 20cm wires (not included)
• Parameters for idle operation with 6 V power supply:
  • Speed: 110 rpm
  • Current: 200mA.
• Maximum torque: 2.4 kg*cm (0.23Nm)
• Working temperature: from -10°C to 60°C
• Weight: 50g

Included in delivery:

• 1pc TT motor with plastic gearbox 6V 1:90, AB Encoder

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
