RAKwireless RAK4630 WisBlock module, nRF52840 SX1262, LoRa/BLE for LoRaWAN and Meshtastic

Product detailed description

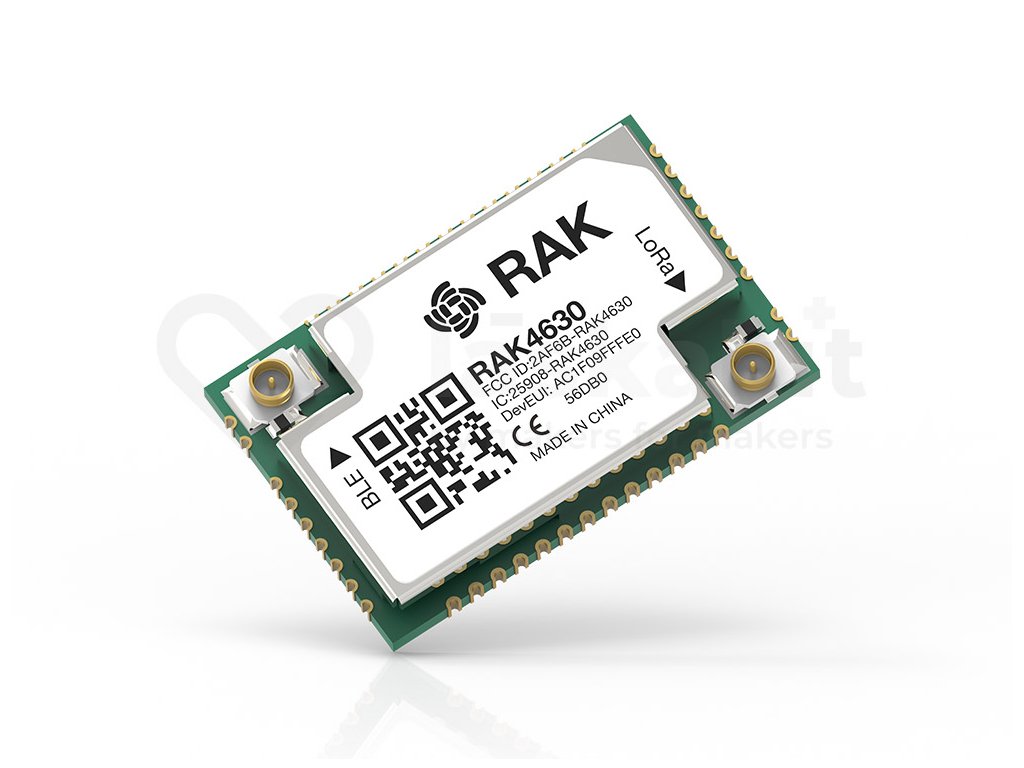

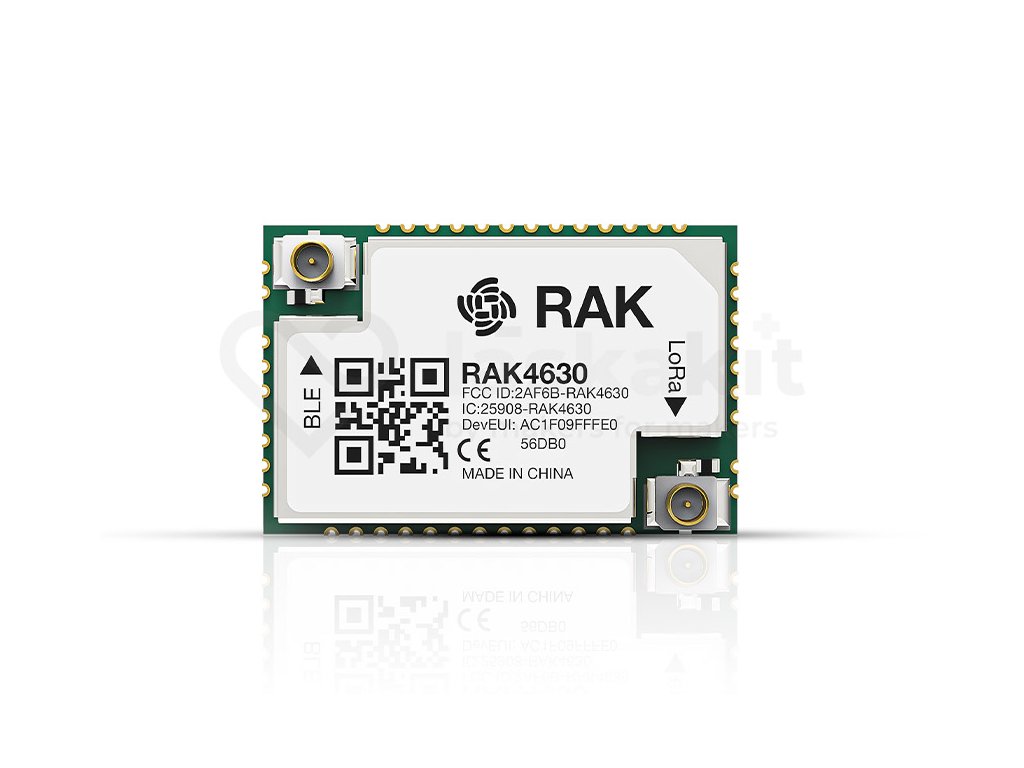

The RAK4630 is a compact wireless module that combines a Nordic nRF52840 microcontroller with Bluetooth Low Energy 5.0 and a Semtech SX1262 LoRa transceiver in a single package. It can handle long-range LoRaWAN or LoRa P2P communication and wireless configuration or data transfer via BLE simultaneously, making it a great foundation for sensor nodes, trackers, and Meshtastic network nodes. The module is certified (CE, FCC, IC), features factory-assigned DevEUI printed on the label, and is mounted directly onto your PCB using 44 castellated pads around the perimeter. Separate U.FL (IPEX1) connectors are provided for both LoRa and BLE antennas, allowing you to choose antennas based on your specific application.

Specifications:

• Microcontroller: Nordic nRF52840 (ARM Cortex-M4F, 64 MHz)
• Memory:
  • Flash: 1 MB
  • RAM: 256 kB
• LoRa transceiver: Semtech SX1262 with TCXO
• Supported LoRa modes:
  • LoRaWAN 1.0.3 – classes A, B, and C
  • LoRa Point-to-Point (P2P)
  • Meshtastic
• Frequency bands: EU868, US915, AU915, KR920, RU864, IN865, AS923-1/2/3/4, CN470 (depending on variant)
• LoRa transmit power: up to 22 dBm (PA Boost)
• Bluetooth: BLE 5.0, transmit power −20 to +4 dBm in 4 dB steps
• Supply voltage: 2.0 – 3.6 V DC
• Power consumption:
  • sleep: approx. 4.23 µA
  • idle mode: approx. 3.35 mA
  • LoRa transmission: approx. 67.8 mA
• Interfaces: USB, 2× UART, 2× I2C, SPI, GPIO, ADC, NFC, SWD
• Antenna connectors: 2× U.FL (IPEX1) – separate for LoRa and BLE
• Pins: 44 castellated pads around the module perimeter, intended for soldering to PCB
• Programming: Arduino IDE (RAK WisBlock / nRF52 BSP), RUI3 API, AT commands via UART1
• Dimensions:
  • module: 23 × 15 × 3 mm
• Operating temperature: −40 to +85 °C

Suitable accessories:

• Pigtail U.FL/IPEX1 - SMA Female, cable 1.15mm, 15cm
• NiceRF SW868-ZD115 Antenna 2.15dBi 11cm 868MHz
• Mini antenna 3dB 2.4G U.FL (IPEX) connector

Package contents:

• 1× RAK4630 module

Note:

• The RAK4630 is a component designed for soldering onto your own PCB; it is not a complete development board. If you are looking for a board for the WisBlock system, go for the WisBlock Core RAK4631 module or the WisBlock Meshtastic Starter Kit.
• Antennas are not included in the package. Purchase LoRa and BLE antennas separately with U.FL (IPEX1) connectors, or via pigtails to SMA. Never transmit with the module without a connected antenna – you may damage the final stage.
• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
