Socket AC-01 with fuse and switch 250V/6A

Product detailed description

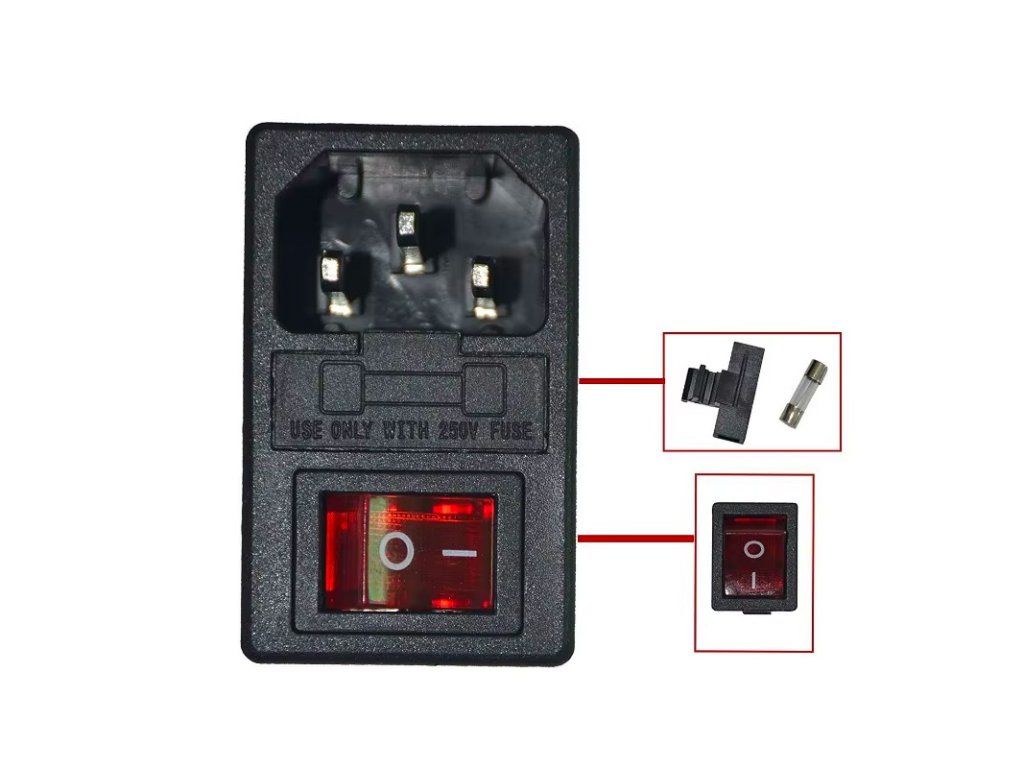

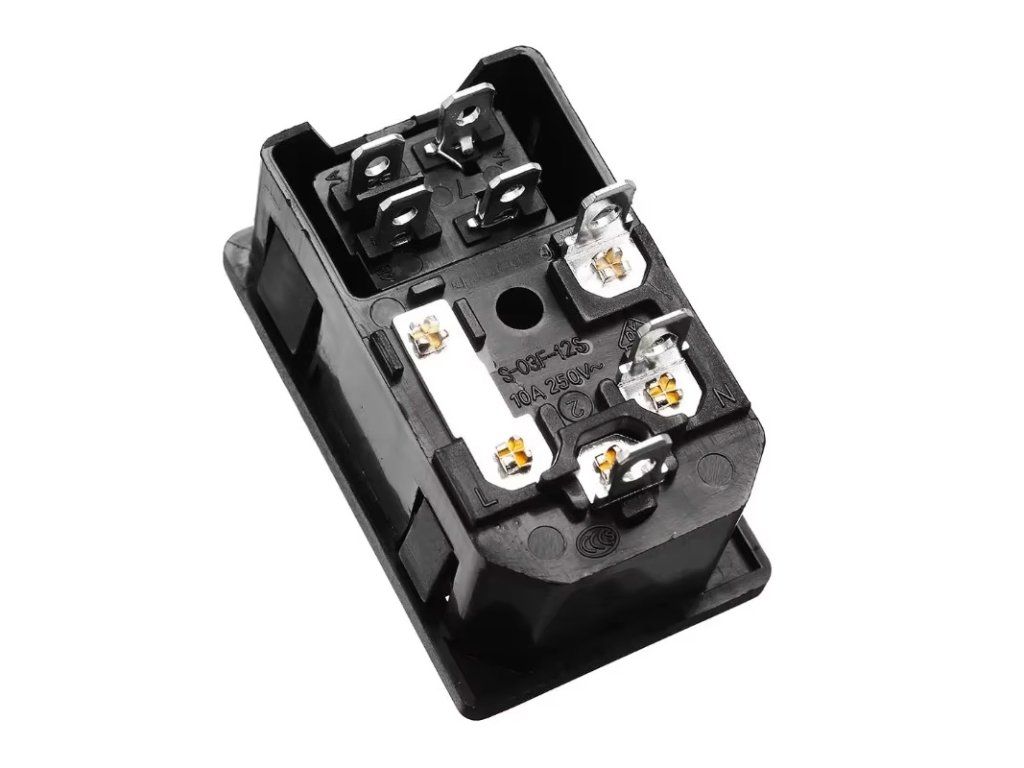

The AC-01 power socket with integrated protective fuse and illuminated switch is an ideal solution for mounting in instrument panels, power supplies, or DIY projects. The switch disconnects both conductors (phase and neutral), and the fuse protects connected devices from overload. The socket is compatible with the IEC 60320 standard and is available in two switch colour variants – black and red.

Specifications:

• Voltage: AC 250 V
• Maximum current: 6 A (250 V AC), 10 A (125 V AC)
• Standard: IEC 60320
• Fuse type: tubular 5×20 mm (included)
• Switch resistance: ≤ 0.03 Ω
• Resistance: AC 1500 V (50 Hz)/min
• Insulation resistance: ≥ 100 MΩ
• Dielectric strength: ≥ 2000 V AC/min
• Operating temperature: −40 °C to 70 °C
• Material: plastic and metal
• Dimensions: 50 × 30 × 30 mm
• Mounting hole dimensions: 47.2 × 27.5 mm
• Variants:

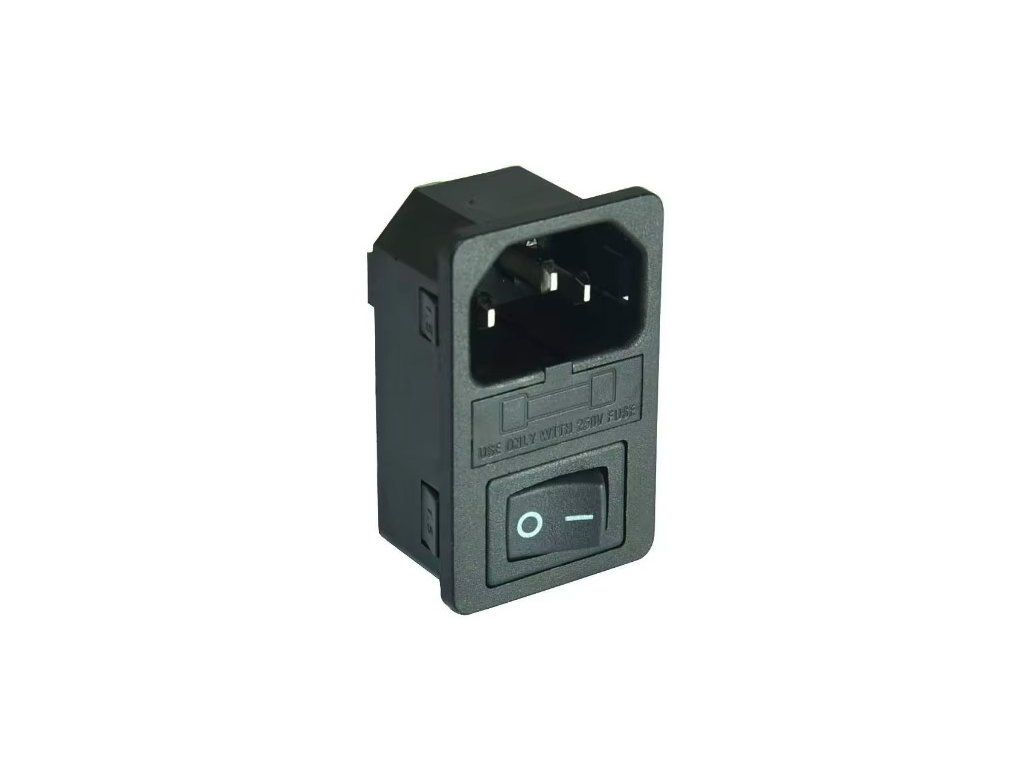

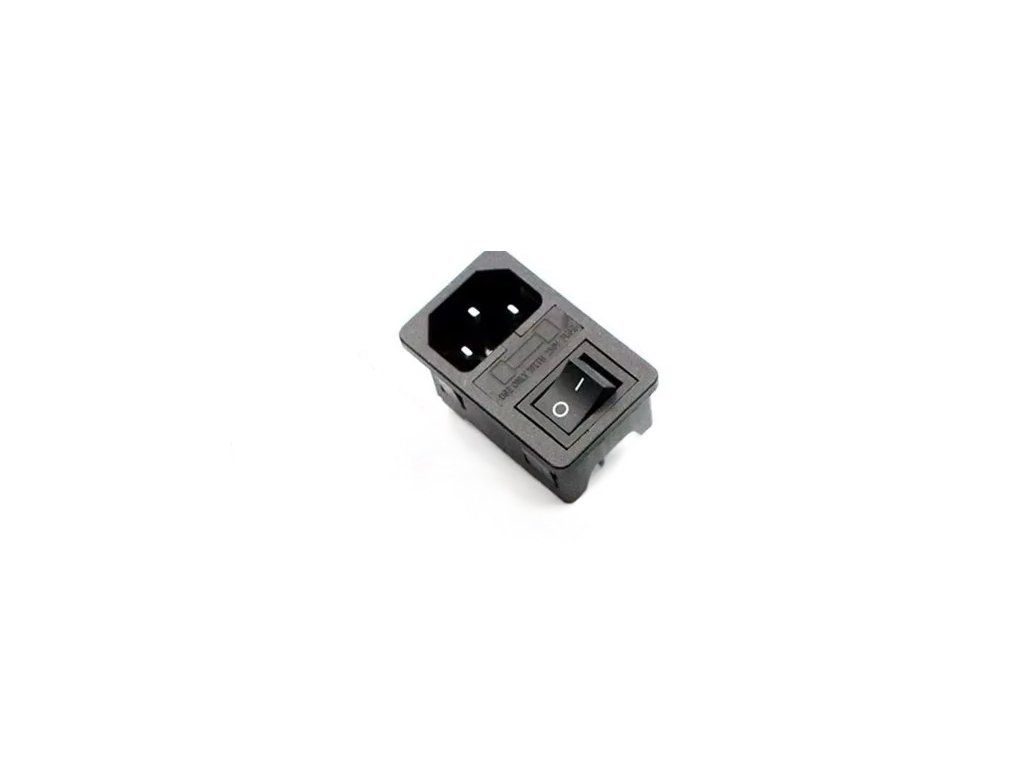

  • Black switch

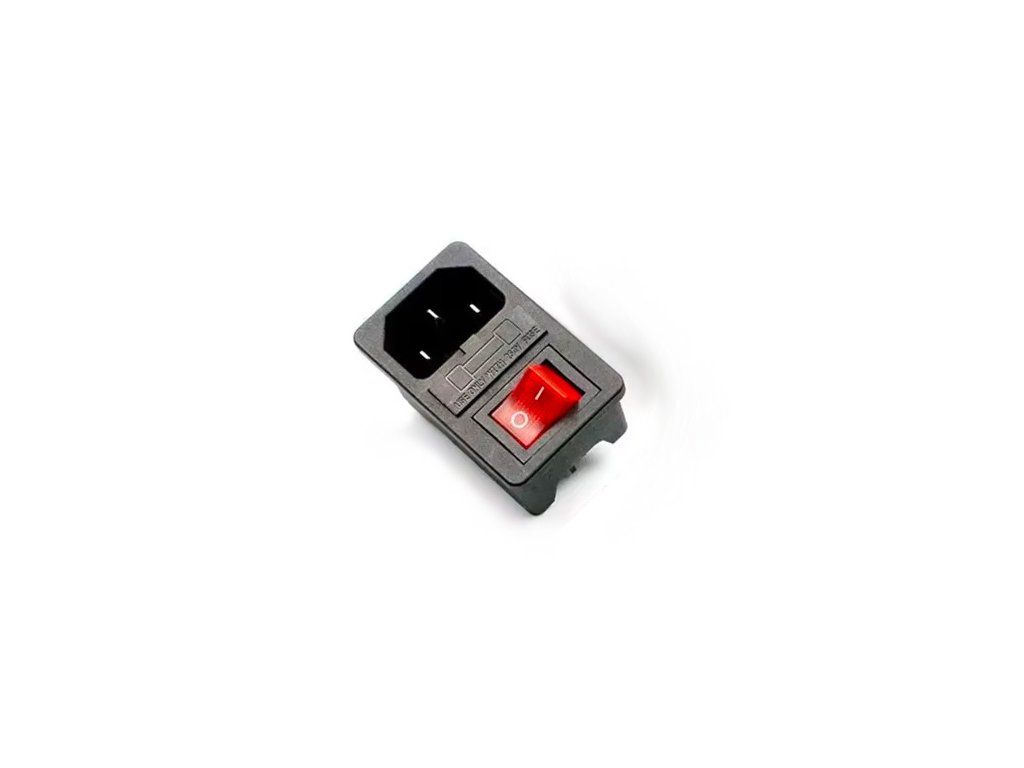

  • Red switch

Package contents:

• 1× AC-01 power socket (depending on the selected variant)

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic characteristics.
