BNC – SMA Adapter, 50 Ω, up to 4 GHz

Product detailed description

The BNC to SMA coaxial adapter is used to connect BNC-connector devices, such as oscilloscopes, generators or counters, with cables, antennas and modules with an SMA connector in the DC–4 GHz frequency range. With this adapter, you can connect an SMA cable or LoRa module to an oscilloscope or counter, or conversely, a BNC measurement cable to a NanoVNA or spectrum analyser with SMA. This is a measurement-grade adapter with a max VSWR of 1.15:1 and max insertion loss of 0.20 dB, ensuring that no significant reflections or losses are introduced into the measurement. The centre contact is made of gold-plated beryllium copper and is rated for at least 500 mating cycles.

Specifications:

• Type: straight coaxial adapter
• Connectors:
  • BNC – bayonet quick-connect (locks with a quarter-turn)
  • SMA – screw-on connector with a 1/4"-36 UNS thread
• Impedance: 50 Ω
• Frequency range: DC–4 GHz
• VSWR: max. 1.15:1
• Insertion loss: max. 0.20 dB
• Insulation resistance: ≥ 5000 MΩ
• Dielectric strength: 1000 V
• Service life: min. 500 mating cycles
• Material:
  • Inner conductor: beryllium bronze, gold-plated
  • Body: brass with ternary alloy plating
  • Insulator: PTFE
• Operating temperature: −55 °C to +165 °C

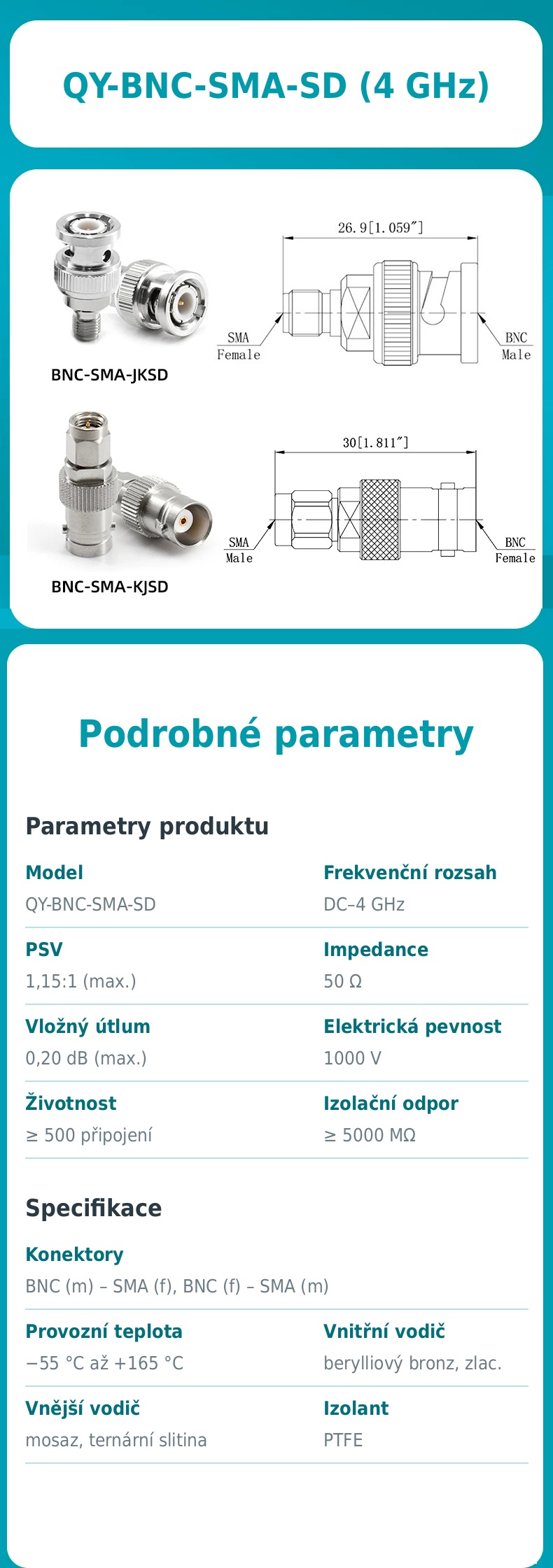

• Variants:
  • BNC (m) – SMA (f) – model QY-BNC-SMA-JKSD, length 26.9 mm
  • BNC (f) – SMA (m) – model QY-BNC-SMA-KJSD, length 30 mm
• Suitable for:
  • Hantek 2D72 Oscilloscope 2x70MHz and multimeter
  • NanoVNA 2.8" vector network analyser
  • HTOOL SA8 Spectrum Analyzer and Signal Generator
• Related:
  • Measuring cable BNC (m) – SMA (m), RG223, 6 GHz
  • BNC / Q9 panel mount socket
  • RP-SMA – SMA adapter, for Wi-Fi and LoRa antennas
  • SMA Adapter Set of 3, 18 GHz, measurement grade

Package contents:

• 1× BNC – SMA adapter (depending on the selected variant)

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
