Samwha super capacitor 500F/2.7V 35x60mm

Product detailed description

The 500 F 2.7V supercapacitor can be used to store electrical energy and as a voltage source. Practical applications: in a car instead of a battery, in consumer electronics or in your own projects as an emergency/standby power source.

For higher voltages, capacitors can be connected in series (e.g. with a balancer).

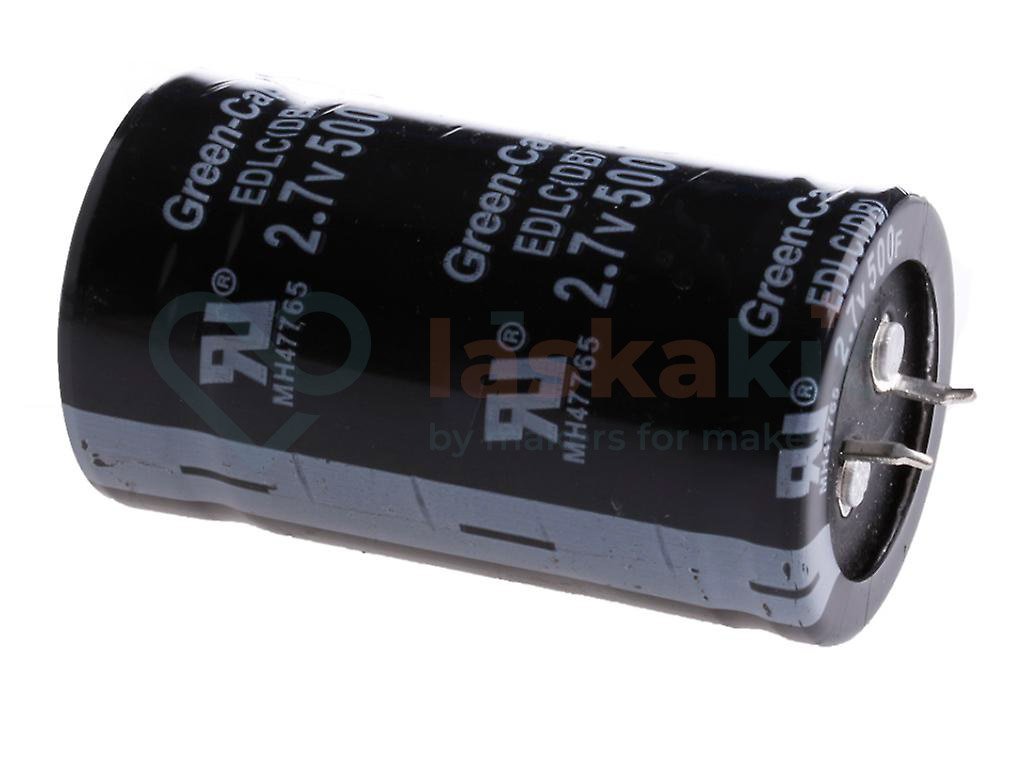

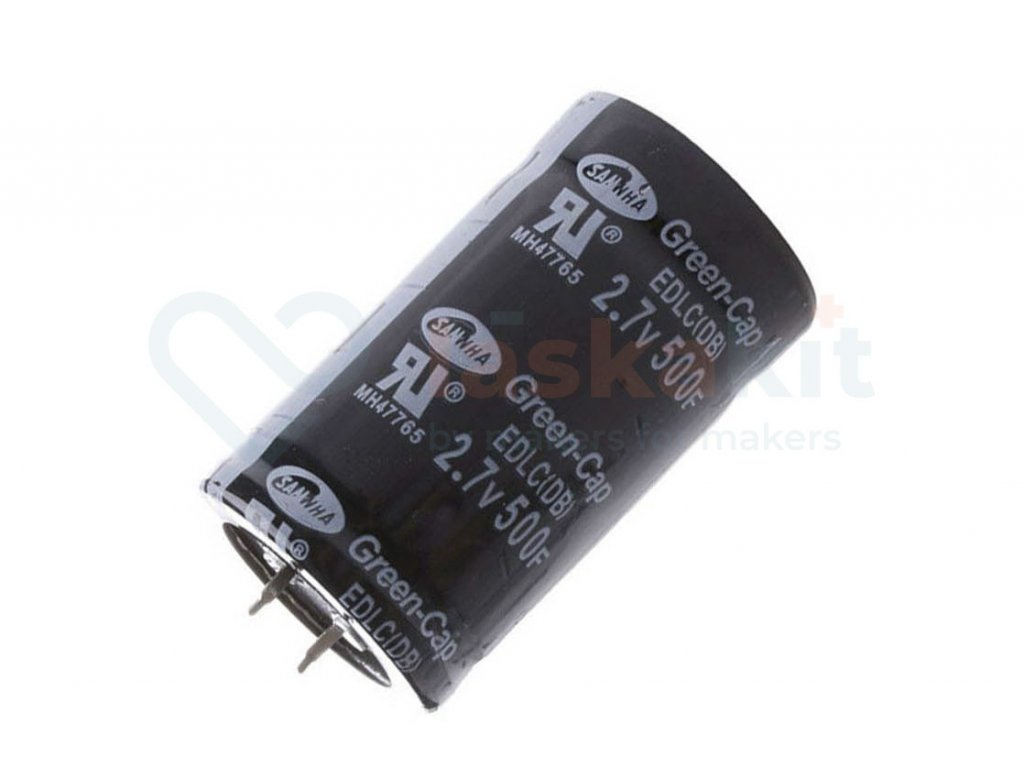

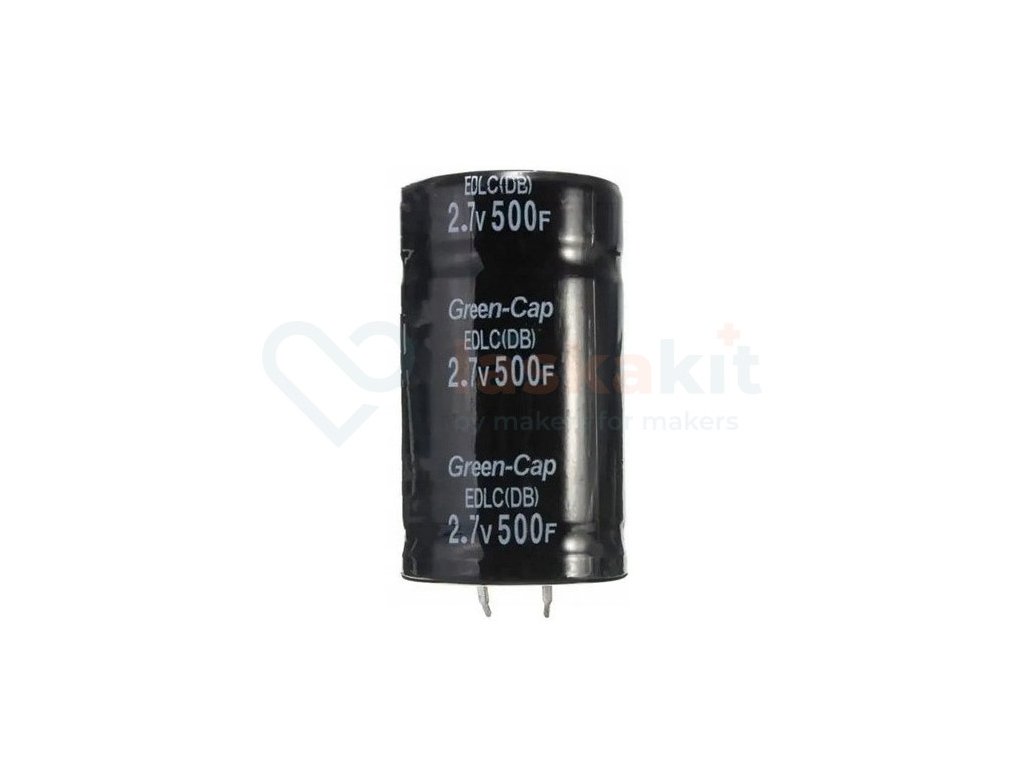

Unlike the picture, the capacitor has 4 outputs. The minus pole is marked as standard and the plus pole is opposite the minus pole, as in a standard capacitor. The other two pins on the sides of the plus contact are only for additional fixing and are not connected anywhere, not even to each other. Unfortunately, we have not been able to find a datasheet for this particular type on the manufacturer's website.

Key features:

• Capacity 500 Farads – ideal for storing large amounts of energy
• Operating voltage 2.7 V – a common standard for supercapacitors
• Long lifespan – up to 500,000 charging/discharging cycles
• Low internal resistance (ESR) – ensures high performance during rapid discharge
• Compact dimensions – only 35 × 60 mm

Specifications:

• Manufacturer: Samwha
• Model: Green-CAP EDLC (DB)
• Number of pins: 4
• Case: Radial 35x60mm
• Capacity: 500F
• Nominal voltage: 2.7V
• ESR 1 kHz: 3.2 mΩ
• Leakage current (72 hours): 0.83 mA
• Maximum current: 25 A

Delivery components:

• 1pc Samwha super capacitor 500F/2.7V 35x60mm

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• For higher voltages, capacitors can be connected in series (e.g. with a balancer).
• Follow safety instructions when handling – supercapacitors can store a significant amount of energy.
