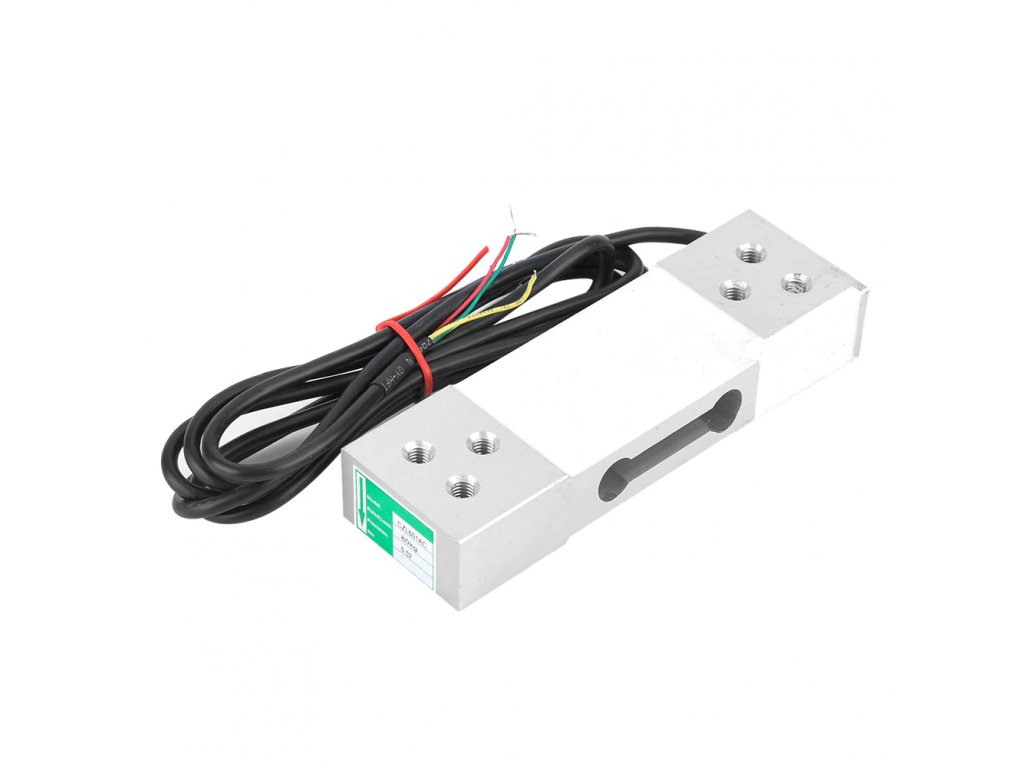

GUANG CE YZC-1B Weighing sensor 100kg

Product detailed description

The GUANG CE YZC-1B weighing sensor is a robust strain gauge force transducer designed for precise load measurement up to 100 kg. It utilises the Wheatstone bridge principle with strain gauges and is suitable for weighing applications such as electronic scales, industrial weighing systems or DIY projects with microcontrollers such as Arduino or ESP32. Thanks to the standardised mV/V output, it is easily integrated using converters such as HX711.

Specifications:

• Model: GUANG CE YZC-1B
• Weighing capacity: 100 kg
• Recommended power supply voltage range: 10–15 V DC
• Operating temperature range: -35 °C to +80 °C
• Accuracy: 0.02 %, 0.01 %
• Comprehensive error: ±0.03 % F.S
• Non-linearity: 0.02 % F.S
• Hysteresis: 0.02 % F.S
• Output: 2.0 ±0.2 mV/V
• Input impedance: 350 ±6 Ω
• Output impedance: 406 ±6 Ω
• Safe overload: 120 %
• Limit overload: 150 %
• Material: Aluminium alloy
• Dimensions: 130 × 38 × 22 mm
• Cable length: approx. 2 m
• Weight: approx. 300 g
• Conductors:
  • Red: + (power supply)
  • Black: – (power supply)
  • Green: output signal +
  • White: output signal –

Package contents:

• 1× Weighing sensor GUANG CE YZC-1B 100 kg

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
