Aluminium Heatsink for Single Phase SSR Relay, up to 40A

Product detailed description

This aluminium heatsink is designed for use with single-phase solid-state relays (SSRs), especially for variants with current up to 40 A. It helps to efficiently dissipate heat generated during SSR operation, thereby extending its lifespan and ensuring safe and reliable operation. The heatsink is suitable for mounting under relays of type SSR-10DA, SSR-25DA, SSR-40DA and similar.

Specifications:

• Material: aluminium
• Intended for: single-phase SSR relays up to 40 A
• Mounting holes: prepared for standard SSR relay spacing
• Attachment: using screws (not included)

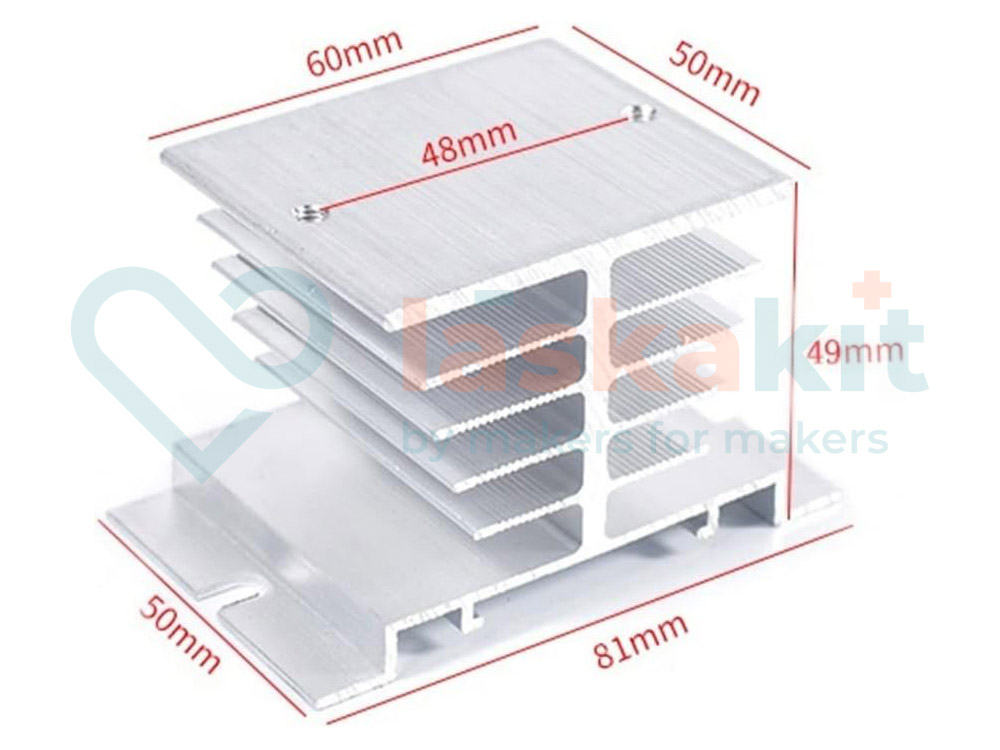

• Dimensions: approx. 81 × 50 × 49 mm
• Compatibility: SSR-10DA, SSR-25DA, SSR-40DA and others with a similar body
• Suitable Thermally Conductive Adhesive Paste

Package contents:

• 1× Aluminium heatsink for SSR relays (up to 40 A)

Comment:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic characteristics.
• For proper function, we recommend using thermally conductive paste between the SSR relay and the heatsink.
• Relay and DIN rail are not included in the package.
