LaskaKit BME688 Pressure, temperature, humidity and air quality sensor

Product detailed description

Accurate measurement of pressure, temperature and humidity - no weather station, indoor or outdoor, can do without it. The BME688 can also measure IAQ (Air Quality).

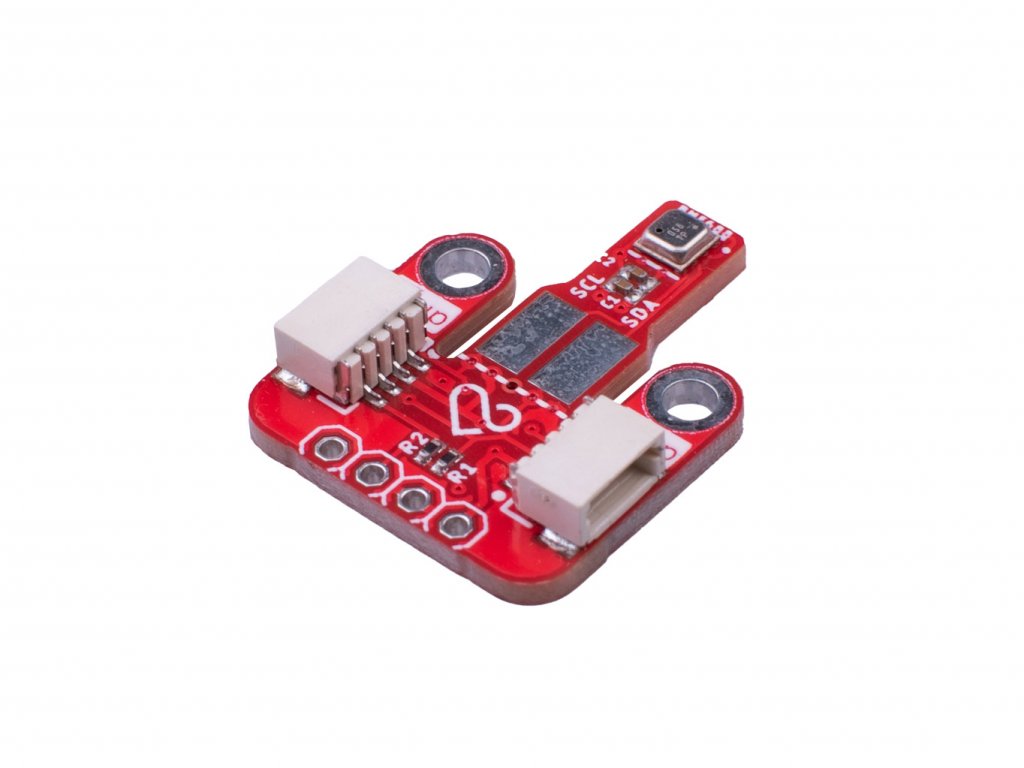

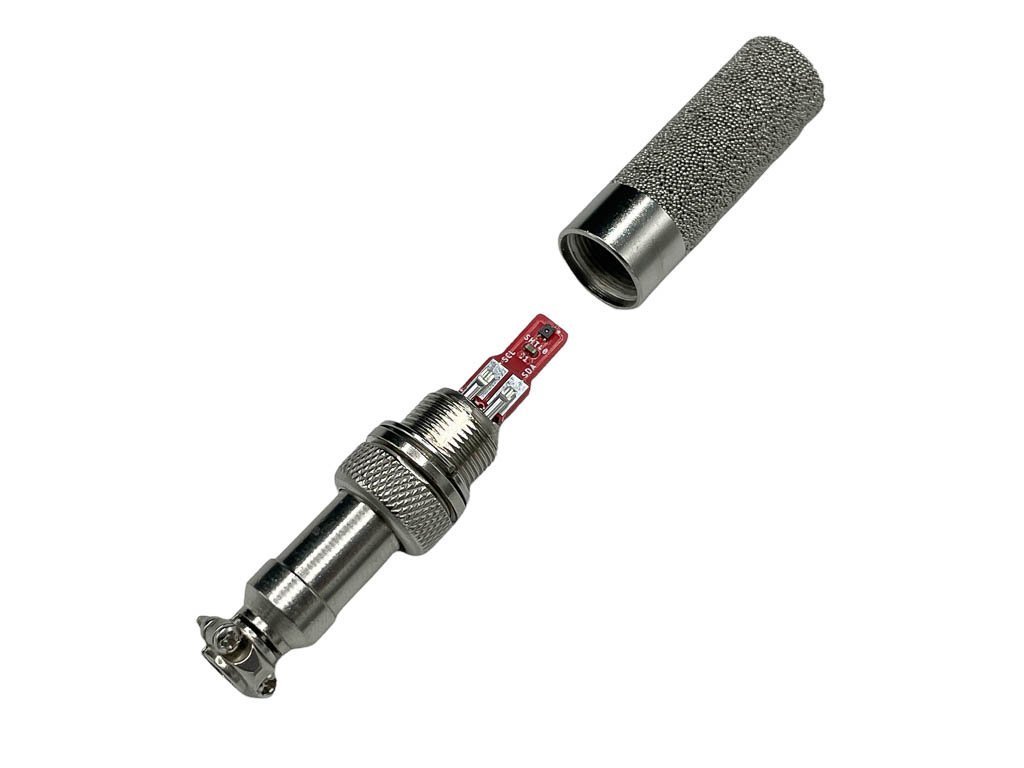

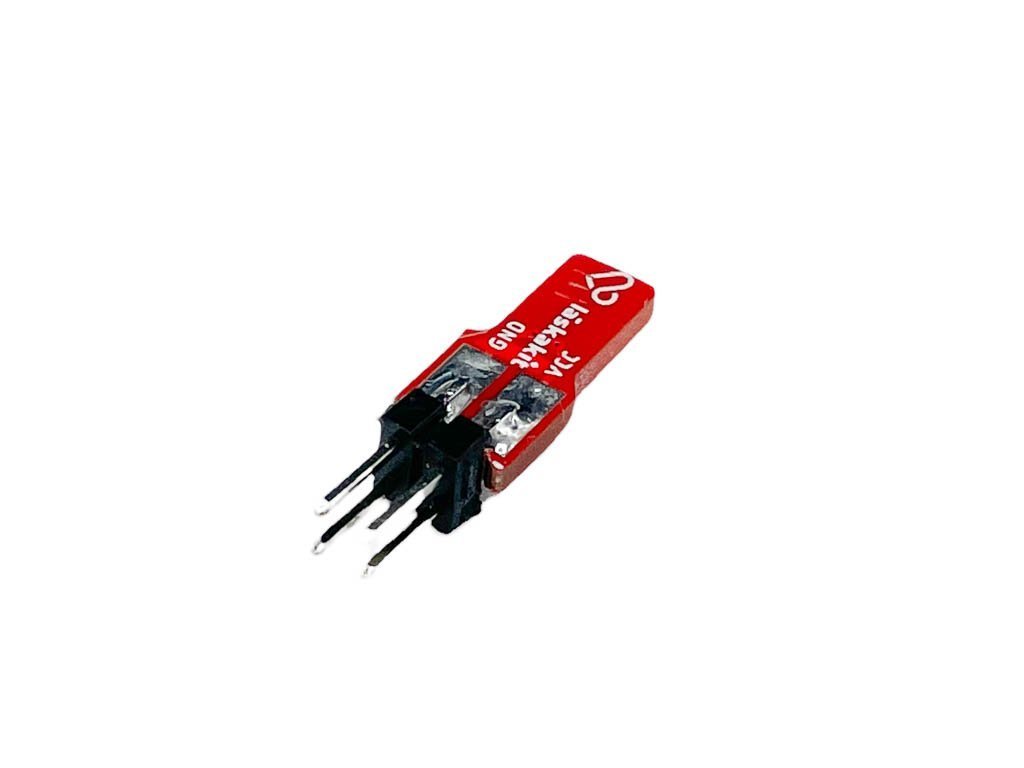

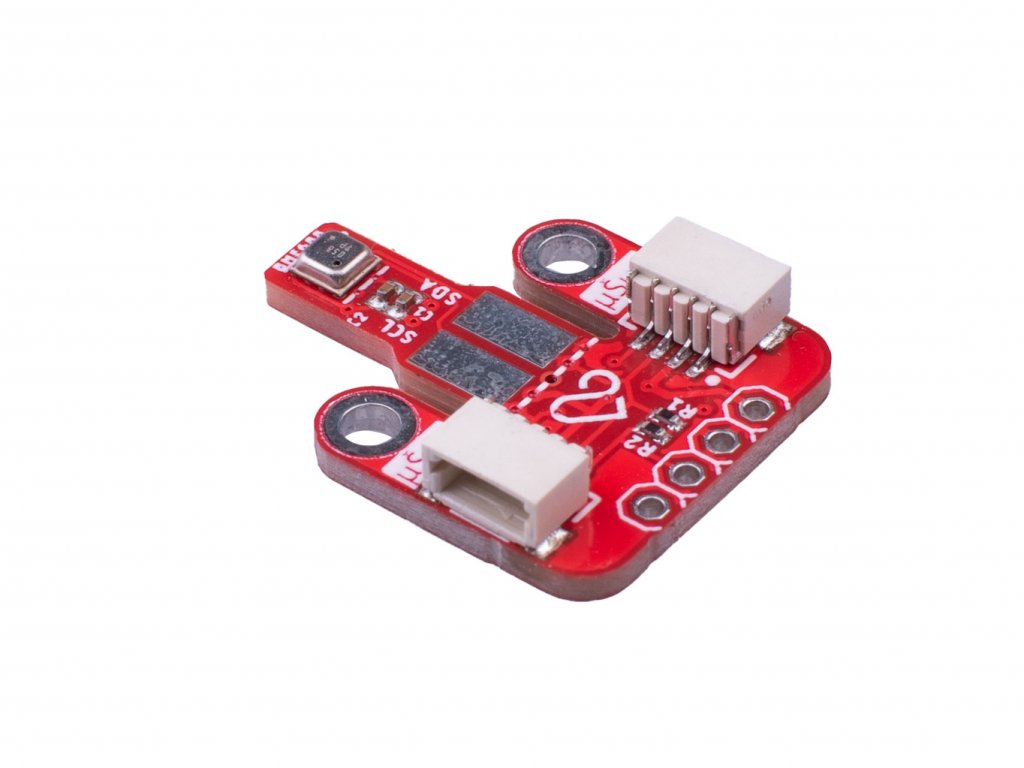

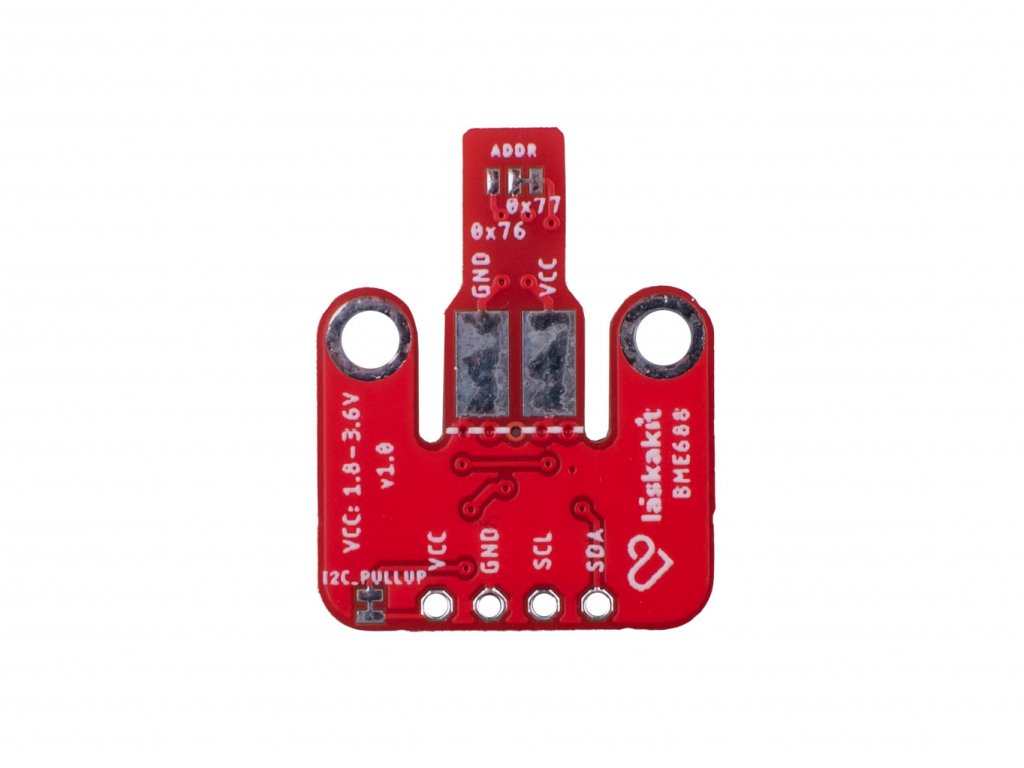

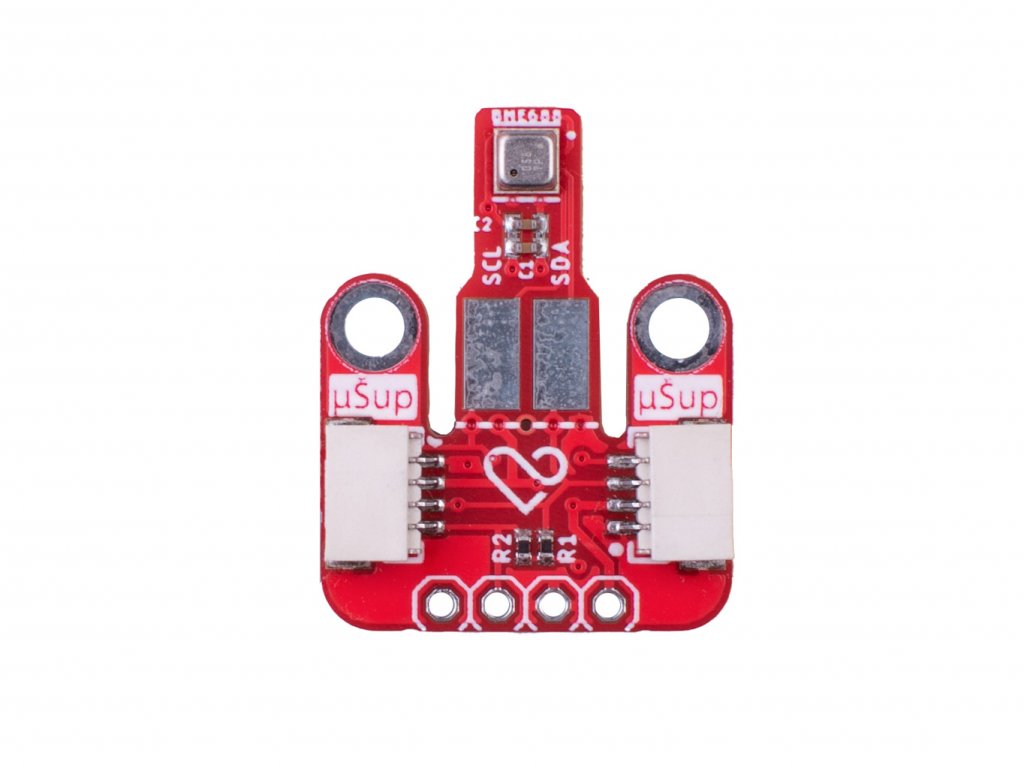

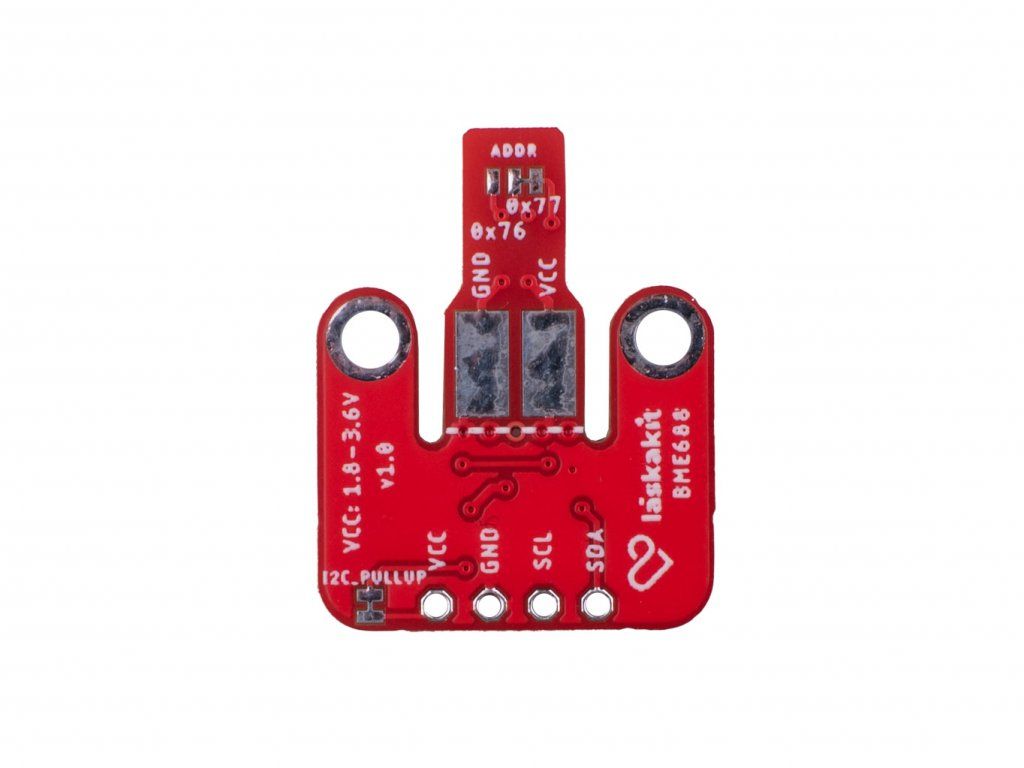

The BME688 sensor is mounted on our standard size and dimensions module, where you will find two uŠup connectory and also a place for soldering a standard 2.54mm stud. This module can be conveniently connected to other modules. After the upper part of the PCB is broken off, you can place the reduced module, for example, in such cover.

You can connect it not only to our development kits such as the universal Meteo Mini with solar panel connection, the easy-to-program ESP32-DEVKit, the very economical and small ESP32-C3 LPKit, the ESPInk with ESP32 and large 4.2" ePaper or the popular kit with ESP32 and 3.5" TFT display.

Finally, it is not necessary to use only our boards - you can use almost any Arduinosingle-board computer Rock Pi or Raspberry Pior other development kits with an I2C bus.

Specifications:

• Sensor: BME688
• Supply voltage: 1.8V to 3.6V - typically 3.3V
• Operating range:
  • Pressure: 300-1100hPa
  • Humidity: 0 to 100%
  • Temperature: -40 to +85°C
  • IAQ: 1 to 500
• Distinction:
  • Temperature: 0.01°C
  • Moisture: 0.008%
  • Pressure: 0.18Pa
  • IAQ: 1
• Accuracy:
  • Temperature: + 0.5°C
  • Humidity: + 3%
  • Pressure: ± 0.6hPa
  • IAQ: 2-5%
• Dimensions: 24x19mm

Included in delivery:

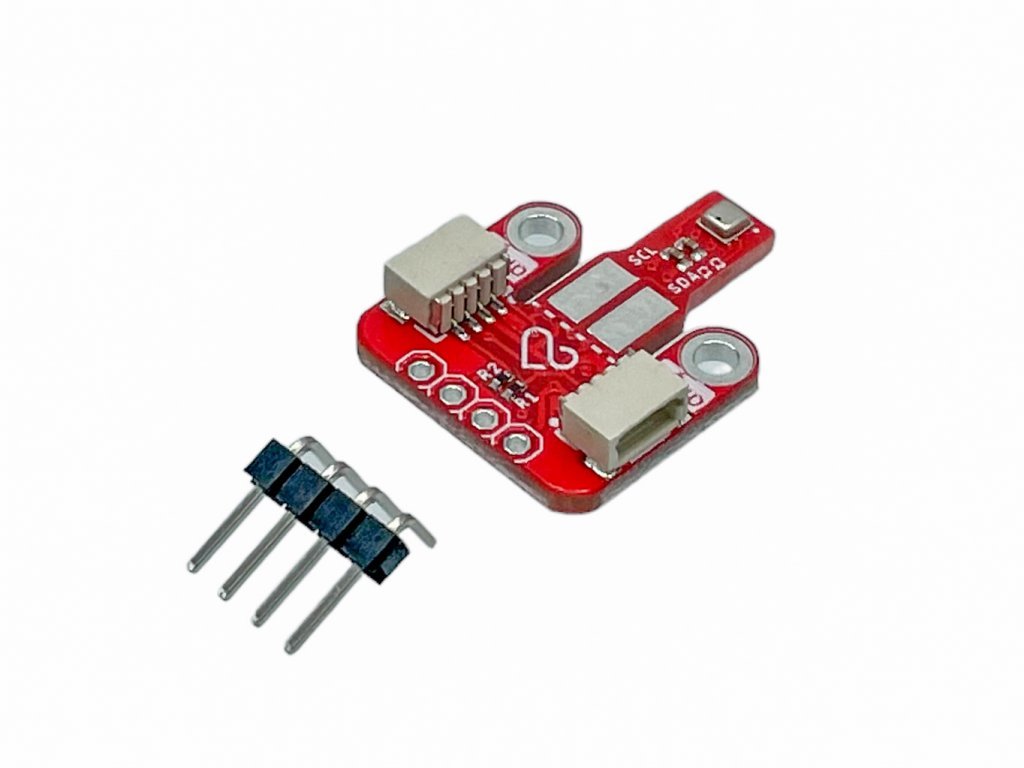

• 1pc LaskaKit BME688 Pressure, temperature, humidity and air quality sensor
• 1 pc 4 pin strip

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• Outdoor case not included
• When used outdoors, we recommend spraying with PLASTIK 70, WARNING! the varnish must not get on the sensor itself, tape it over before spraying.
