Mini servo MG90D 270˚ with metal gears

Product detailed description

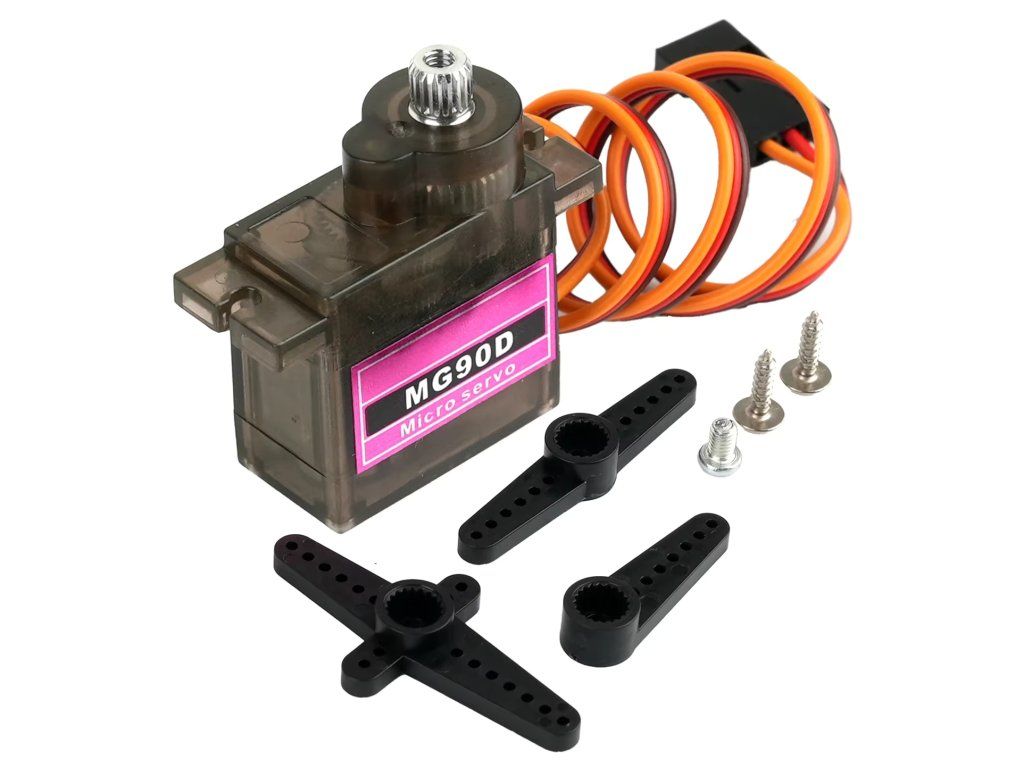

The miniature MG90D servo is a reliable micro servo with metal gears and a rotation range of up to 270°. Its compact size and high torque make it ideal for modeling and robotics projects.

This is not a TowerPro product.

Specifications:

• Rotation angle: 270°
• Supply voltage: 4.8 V - 6.0 V
• Torque:
  • 1.8 kg-cm at 4.8 V
  • 2.2 kg-cm at 6.0 V
• Speed:
  • 0.1 s/60° at 4.8 V
  • 0.08 s/60° at 6.0 V
• Temperature Range: 0 to +55°C
• Wire length: 175mm
• Dimensions: 22.8x12.2x28.5mm
• Weight: 13.4g

Included in delivery:

• 1× Mini servo MG90D 270˚ with metal gears
• Set of extensions (lever)
• Mounting screws

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
