Brass flow meter with thermistor YF-B7 1/2" 1-25L/min

Product detailed description

The YF-B7 brass flowmeter is a high-precision sensor designed to measure liquid flow in the range of 1-25 litres per minute. Its robust brass body makes it resistant to corrosion and mechanical wear, making it an ideal choice for industrial and domestic applications. Built-in thermistor allows monitoring of the liquid temperature.

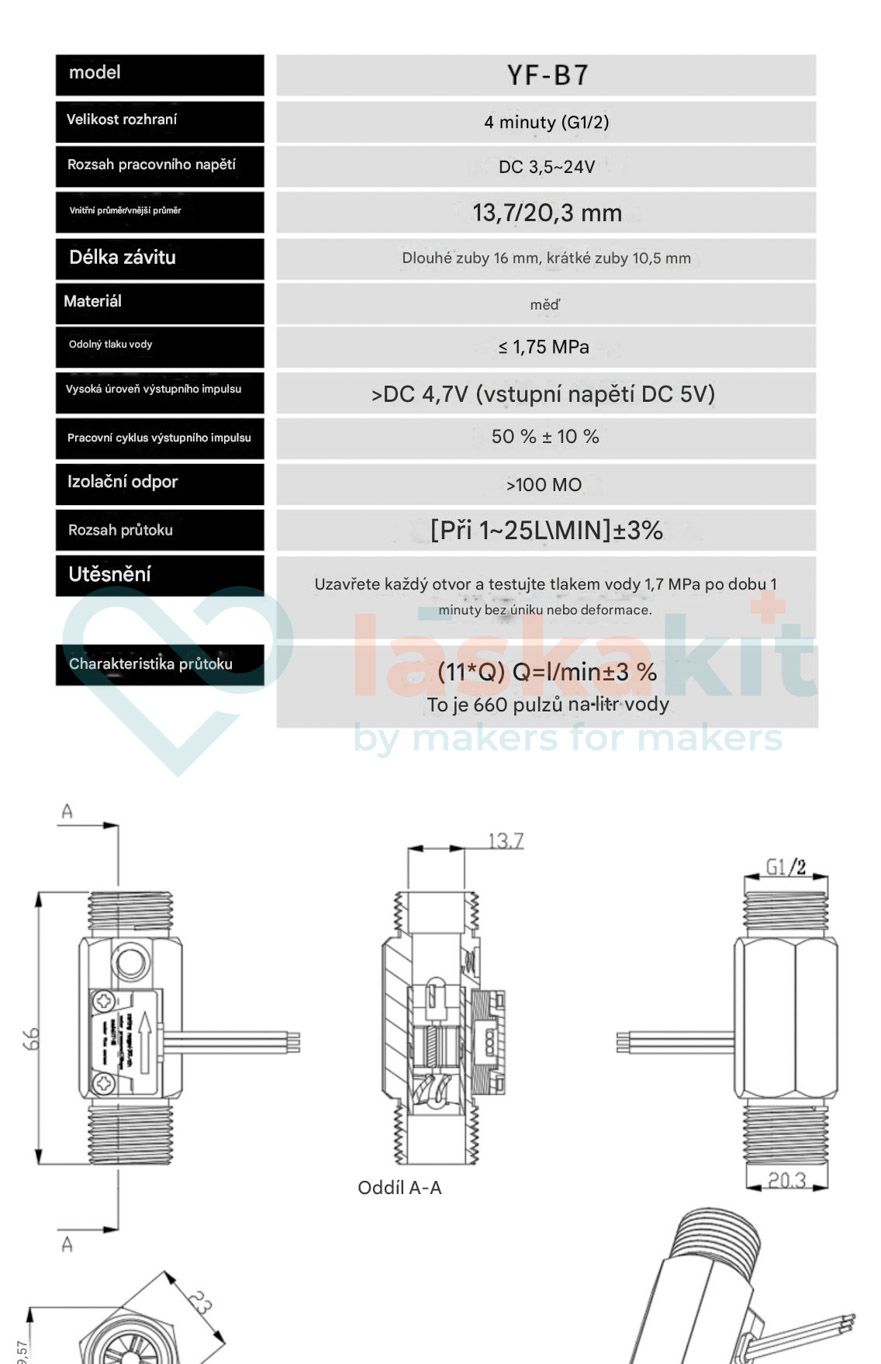

Specifications:

• Operating voltage: DC 3.5-24V
• Liquid flow: 1-25L/min
• Maximum current: 15mA (DC 5V)
• Operating temperature: - 25 ~ + 80°
• Operating humidity: 35%~90% RH
• External thread: 1/2"
• Output: 5V TTL (5V power supply)
• Pulse characteristics: 275 Hz (Q - 25 l/min), 110 Hz (Q - 10 l/min), 11 Hz (Q - 1 l/min); F = 11 * Q
• Cable length: ~ 15cm
• Thread length: 10mm
• Body length: 66mm
• Thermistor: NTC 50K
• Connector: JST-SM-3
  • Red: VCC
  • Yellow: Signal output
  • Black: GND
• Thermistor connector: JST-SM-2

Included in delivery:

• 1pc Brass flowmeter with thermistor YF-B7 1/2" 1-25L/min

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• Magnetic materials in the vicinity may affect the measurement
