Protection and balancer Li-Ion battery 5S 100A

Product detailed description

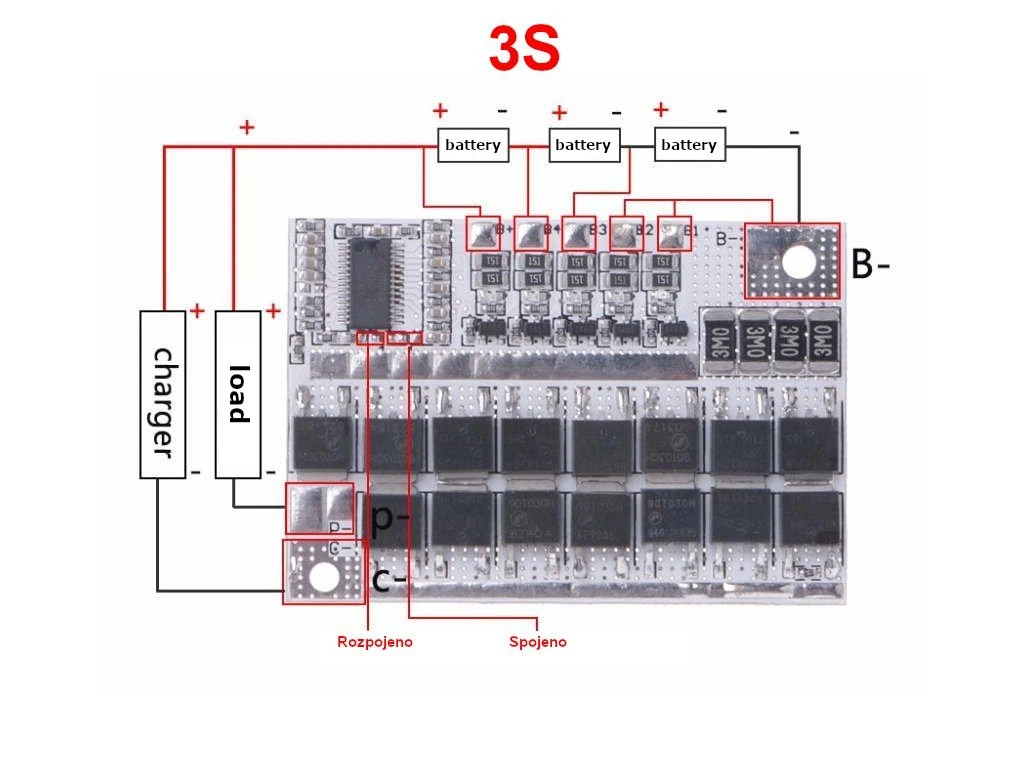

Protection and charging module for 5 Li-Ion (can be adapted to 3S and 4S see photo) articles with each article checked separately. With this module, cells can be connected in series without the risk of damaging or destroying the cells. During charging, all cells are balanced according to their state and degree of charge.

Specifications:

• Protections:
  • Short circuit protection
  • Overload protection: 100A
  • Overload protection: 4.24V
  • Deep discharge protection: 2.88V
  • Overcurrent protection
• Charge resumption at: 4.14 - 4.12V
• Discharge recovery at: 2.9 - 3.1V
• Delay in activation and deactivation of protection: 1.5-2.5s
• Continuous discharge current: <80A
• Short circuit protection: 100-600uS
• Charging current: max. 60A
• Cell balancing during charging: 50mA
• Operating temperature: -40°C to 50°C
• Dimensions: 60 x42x4mm

Included in delivery:

• 1pc Li-Ion battery protection and balancer 5S 100A

Notes:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
