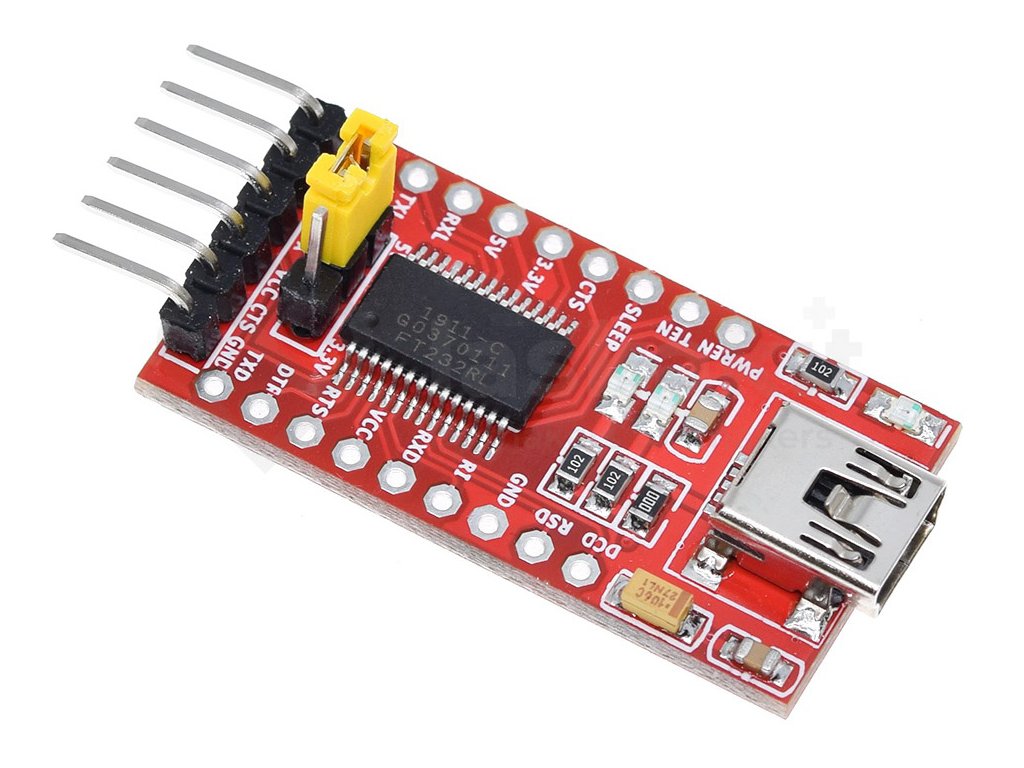

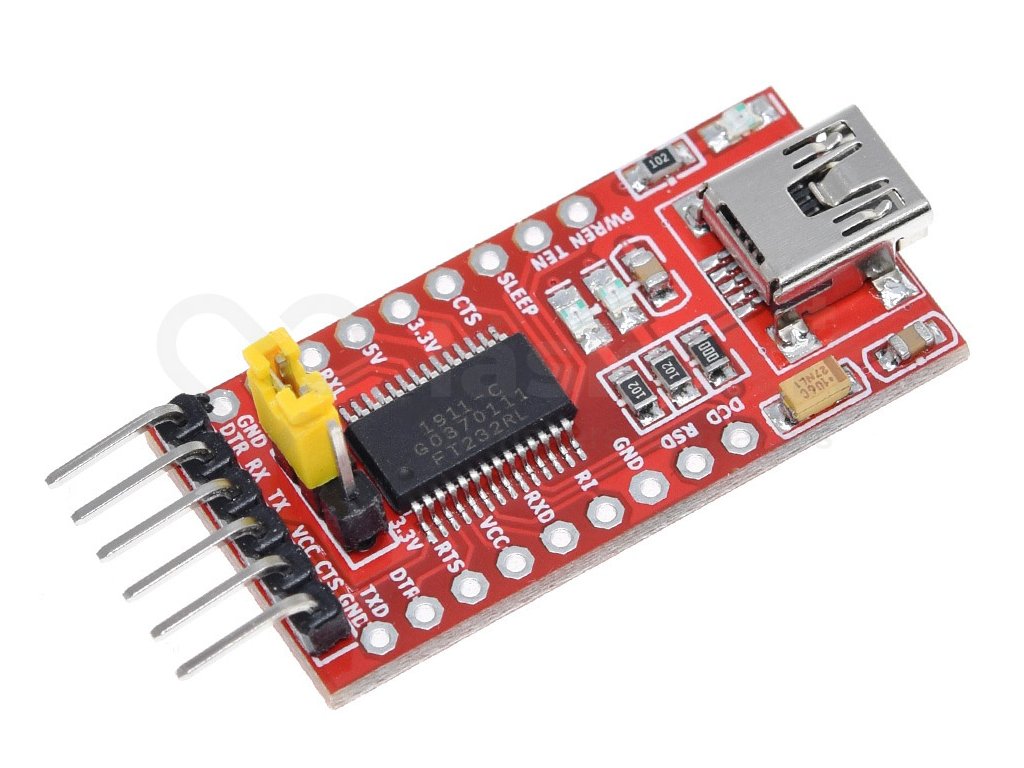

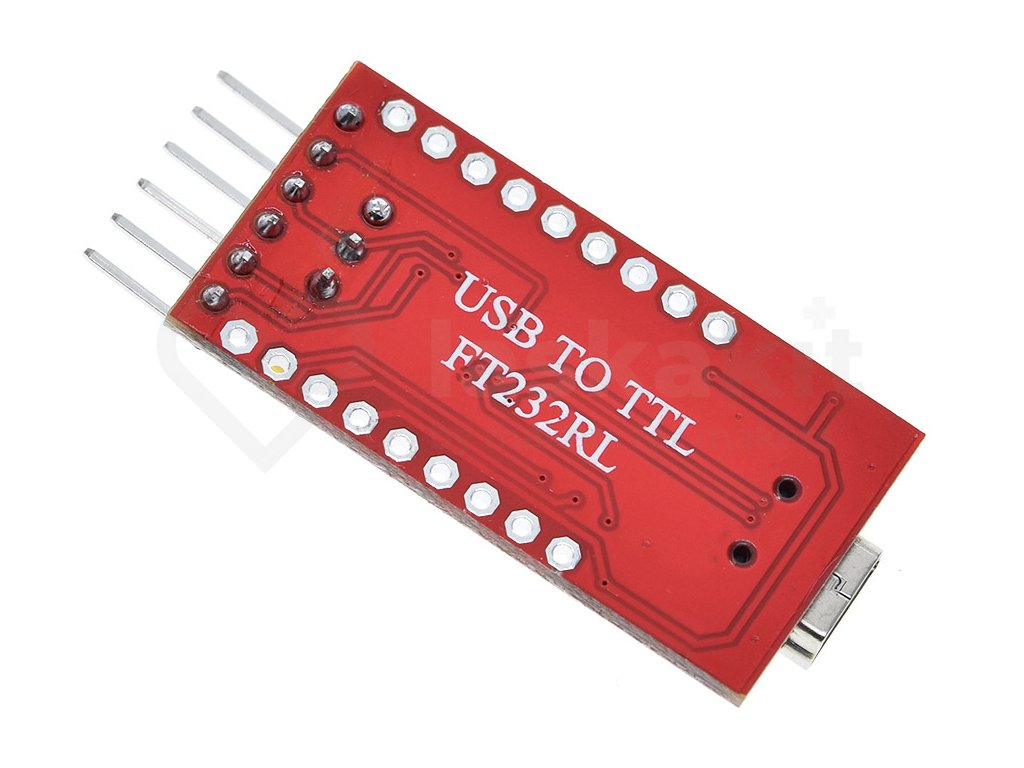

    USB TTL UART converter, FT232RL, DTR pin

    Code: LA161072
    Not rated
    USB TTL UART converter, FT232RL, DTR pin
    €3,39 €2,80 excl. VAT
    In stock (50 pcs)
    Delivery to:
    09/12/2025

    USB TTL UART converter, FT232RL, DTR pin

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Product detailed description

    The level converter is used for communication between the PC and the UART device. You can use it, for example, to program Arduino without a USB port.

    Specifications:

    • Chip: FT232RL

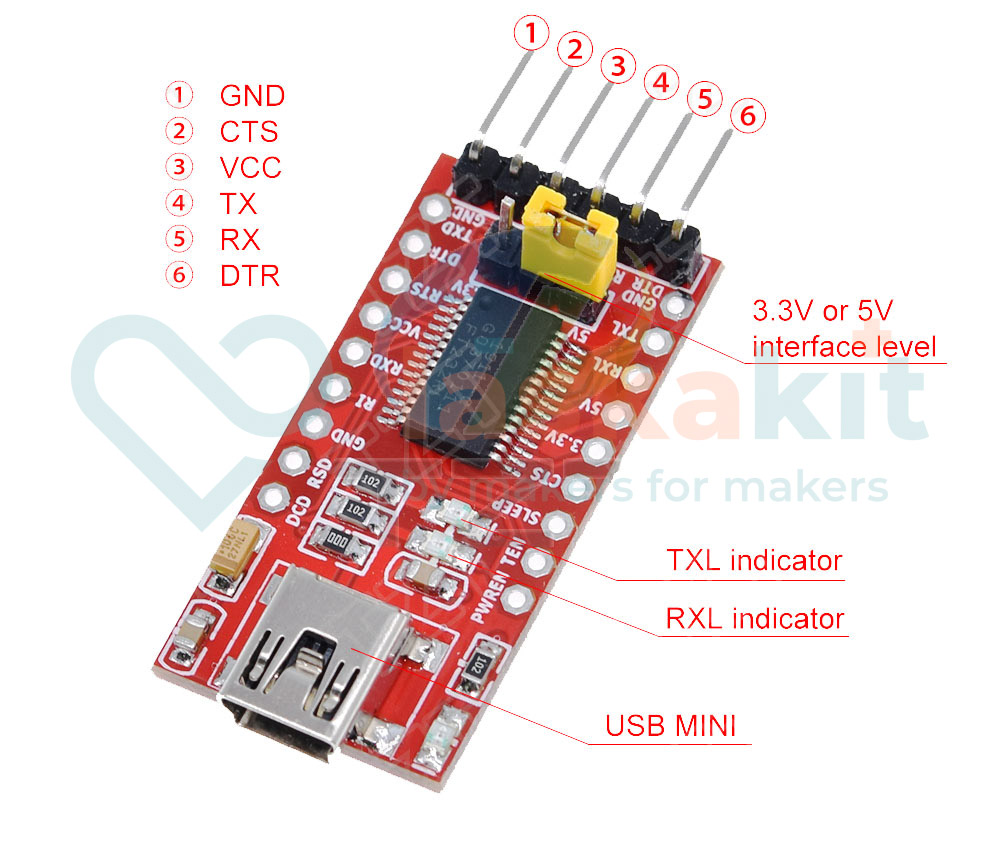

    • Pin definition: DTR, RXD, TX, VCC, CTS, GND
    • Support: USB 1.0 and 2.0
    • Interface: 3.3 and 5V
    • Dimensions: 36x19mm
    • Interface: Mini USB

    FT232RL_desc

    Delivery components:

    • 1pc USB TTL UART converter, FT232RL, DTR pin

    Remark:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: Converters & Programmers
    Warranty: 2 years
    Weight: 0.005 kg
    Převodník TTL na RS232, MAX3232
    TTL to RS232, MAX3232 converter
    In stock (50 pcs)
    €1,30 excl. VAT
    €1,57

    TTL to RS232 bus converter with MAX3232 chip

    LA161034
    LaskaKit logic level converter I2C 5V to µShup 3.3V
    LaskaKit logic level converter I2C 5V to µShup 3.3V
    In stock (226 pcs)
    €0,96 excl. VAT
    €1,16

    I2C 5V to 3V level converter

    LA161077
    4838 1 programator debugger pro lilygo ttgo t internet poe ch340
    Programmer, debugger for LILYGO TTGO T-Internet-POE, CH340
    Retrieved from
    €3,01 excl. VAT
    €3,64

    Programmer and debugger for development board LILYGO TTGO T-Internet-POE ESP32-WROOM LAN8720A.

    LA161048
    Show all alternative products

    Be the first who will post an article to this item!

    Do not fill out this field:
    Do not fill out this field:

    List of discussions

    H Avatar of author Unikátní ID 07/08/2025 21:56
    Dobrý den, mají tyto převodníky opravdu unikátní ID?
    VH Avatar of author Unikátní ID 11/08/2025 08:49
    Dobrý den, každý z těchto převodníků má v sobě svoje na pevno dané unikární sériové číslo. Podle USB specifikace tak by měl také mít svoje unikátní USB ID
    M Avatar of author 10/09/2024 08:09
    Dobrý den, chtěl bych se zeptat, zda jumper přepíná i napětí na VCC pinu, nebo tam je stále 5V. Děkuji
    MF Avatar of author 10/09/2024 10:52
    Dobrý den, přepnutím propojky se mění napětí i na pinu VCC.
    RK Avatar of author arduino pro mini? 09/07/2024 16:51
    dobrý den. Dá se tímto programovat arduino pro mini 3.3v? Děkuji.
    KL Avatar of author arduino pro mini? 10/07/2024 07:12
    Zdravím, ano.
