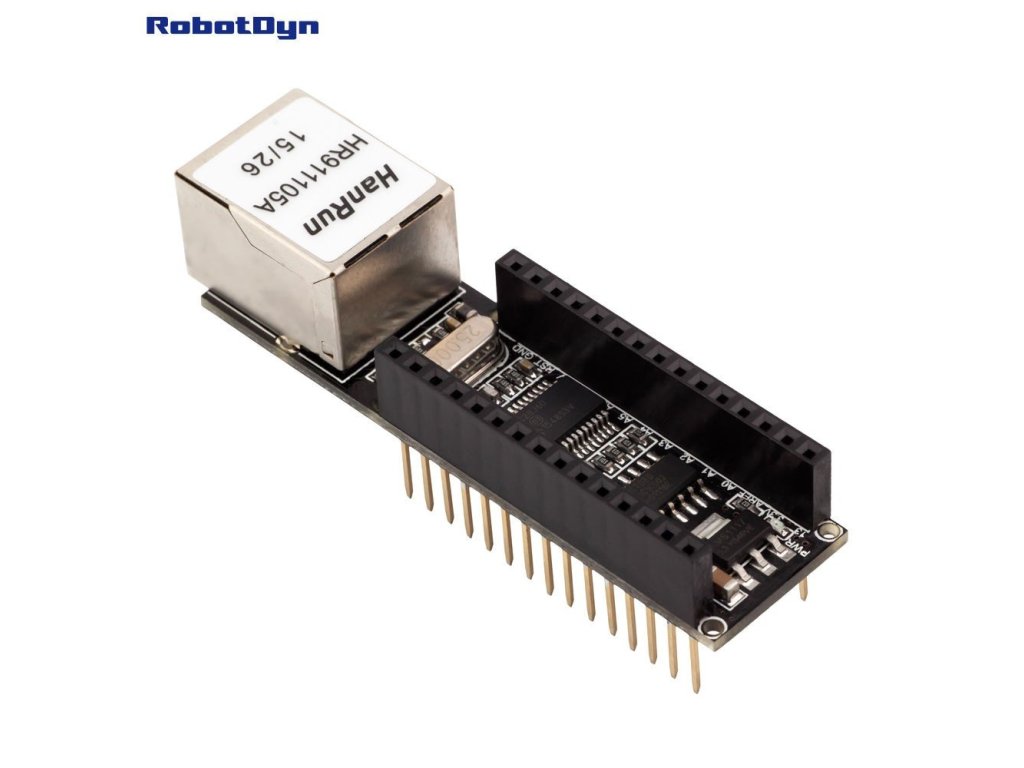

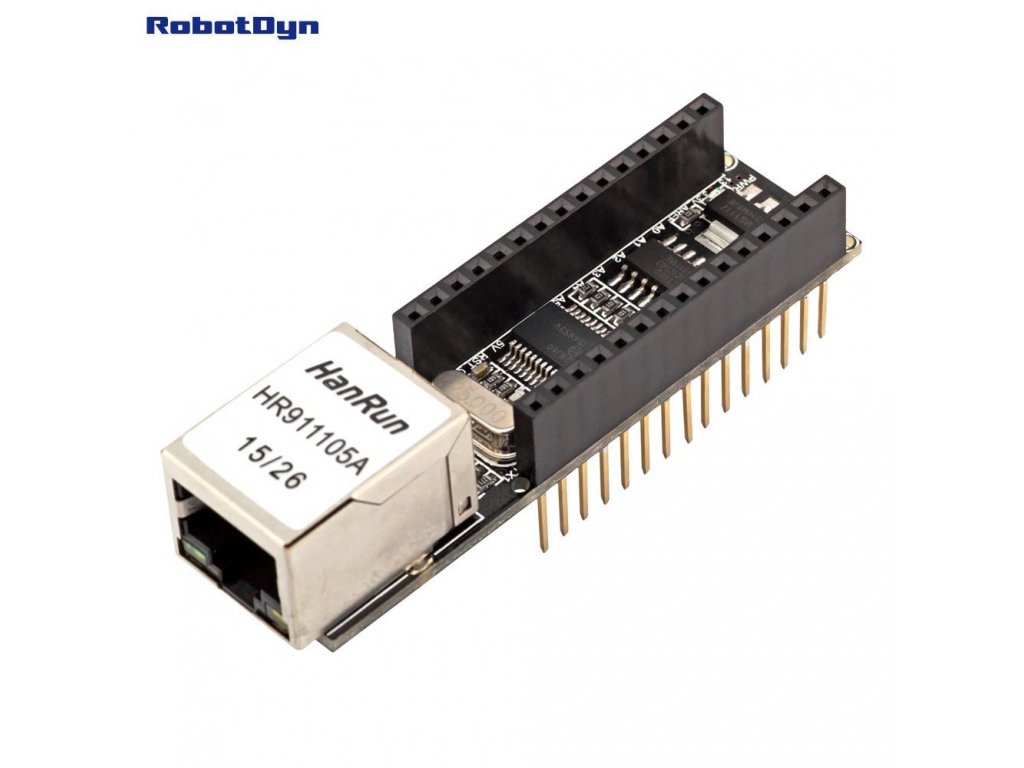

RobotDyn Arduino Nano Ethernet ENC28J60 shield

Product detailed description

RobotDyn Arduino Nano Ethernet ENC28J60 shield

The ENC28J60 is a standalone 10BASE-T Ethernet module with MAC and PHY, 8 Kbytes of RAM, and an SPI serial interface for 3.3V and 5V logic. The target applications are VoIP, Industrial Automation, Building Automation, Home Control and Security.

It's a Shield that you put directly on the Arduino Nano,

* On the bottom of the board there is a label for connecting the module.

Specifications:

• ENC28J60 chip
• Ethernet Bandwidth: 10Base-T
• MAC: Yes
• PHY: Yes
• TX/RX RAM Buffer: 8Kb
• Power supply: 5V (from Arduino Nano)
• Logic: 3.3/5V
• Ethernet protocol: TCP/IP
• LAN connector: RJ-45

Included in delivery:

• 1pc RobotDyn Arduino Nano Ethernet ENC28J60 shield

Sources:

ENC28J60 Datasheet Dimensions

Remark:

This product is not a standalone functional unit and may require professional installation.
