Metal Latching Switch - Power, Silver 16mm 3-6V

Product detailed description

Metal latching switch designed for mounting in a panel with a 16 mm diameter hole. The front part is equipped with a ring-shaped backlight, available in blue, red, white, yellow and green. The backlight operates with a 3–6 V DC power supply. Thanks to its durable metal body and simple mounting, it is suitable for DIY projects, control panels or industrial applications. Latching means that after pressing, the switch remains in that position until you press it again.

Specifications:

• Type: Metal Latching Switch
• Backlight: Power Symbol
• Backlight colour options: Blue, red, white, yellow, green
• Material: Metal
• Body colour: Silver
• Mounting hole: 16 mm
• Thread diameter: M16×1
• Backlight power supply: 3–6 V DC
• Contact type: 1× NO + 1× NC
• Rated current/contact: 3 A / 250 V AC
• Electrical life: ≥ 50 000 cycles
• Mechanical life: ≥ 500 000 cycles
• Operating temperature: –25 °C to +55 °C
• Protection: IP65 (front panel)

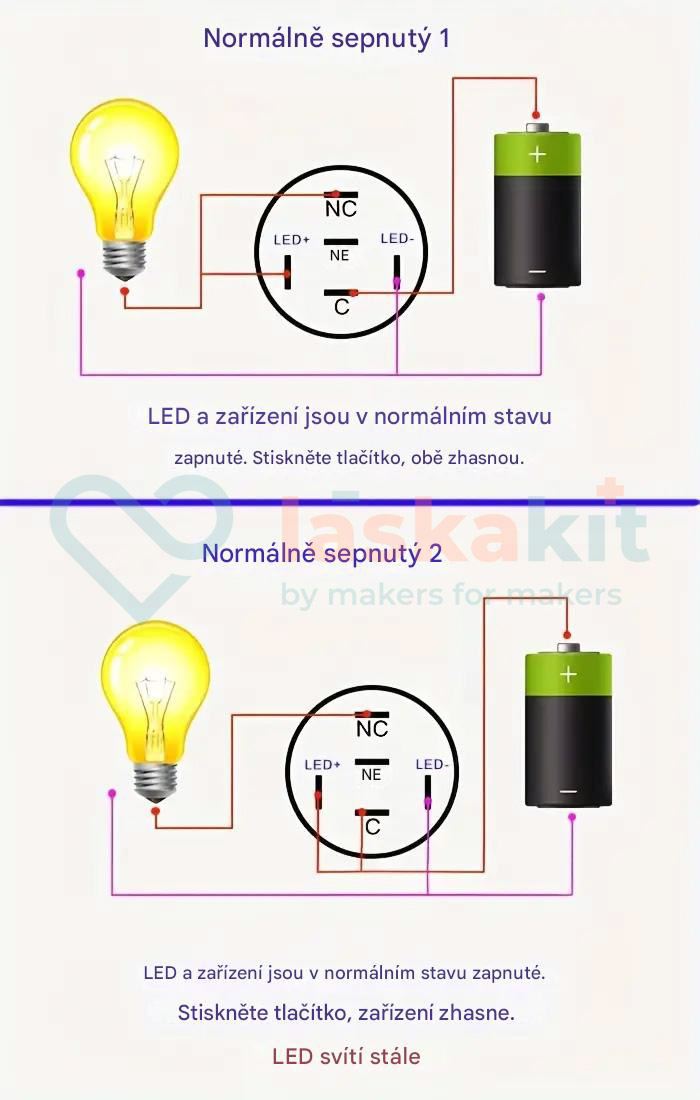

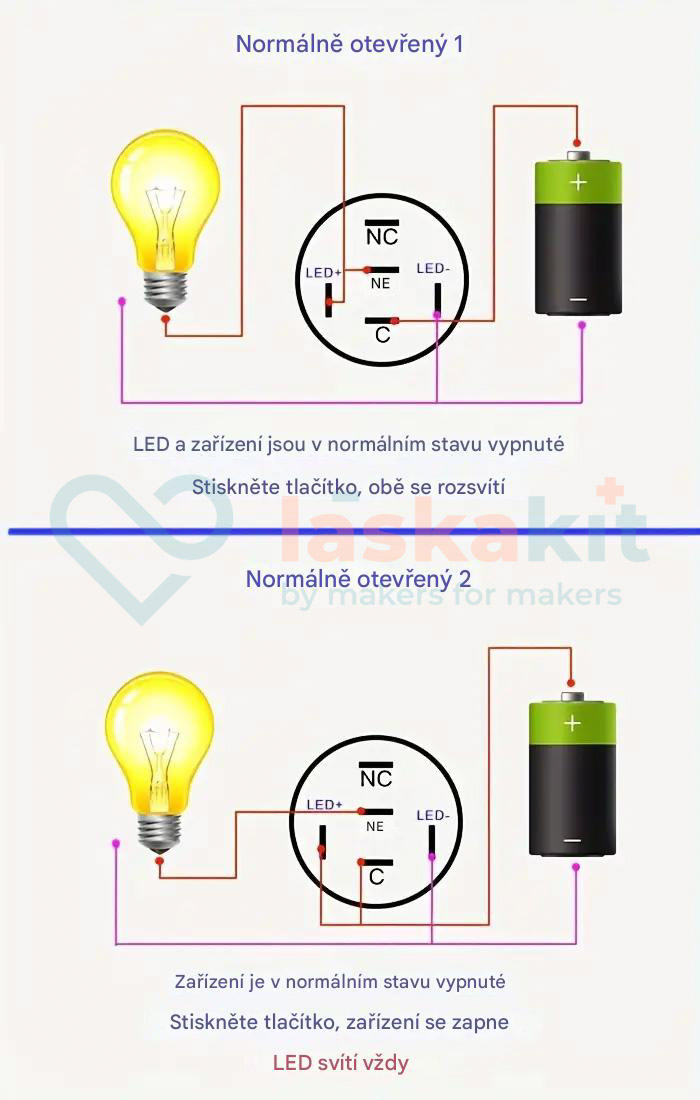

Wiring diagram:

• Switch contacts:
  • COM – common contact
  • NO – Normally Open (closes when pressed/latched)
  • NC – Normally Closed (opens when pressed/latched)
• Backlight (ring):
  • LED + – anode (+) for 3–6 V DC
  • LED − – cathode (−)
  • Available colours: Blue, Red, White, Yellow, Green

Package contents:

• 1× Metal latching switch, Power backlight, silver, 16 mm, 3–6 V

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product photos correspond to the real product, but in exceptional cases may differ, for example in colour.
• Illumination is designed for 3–6 V DC. Do not connect directly to 12 V/24 V without proper current limiting.
