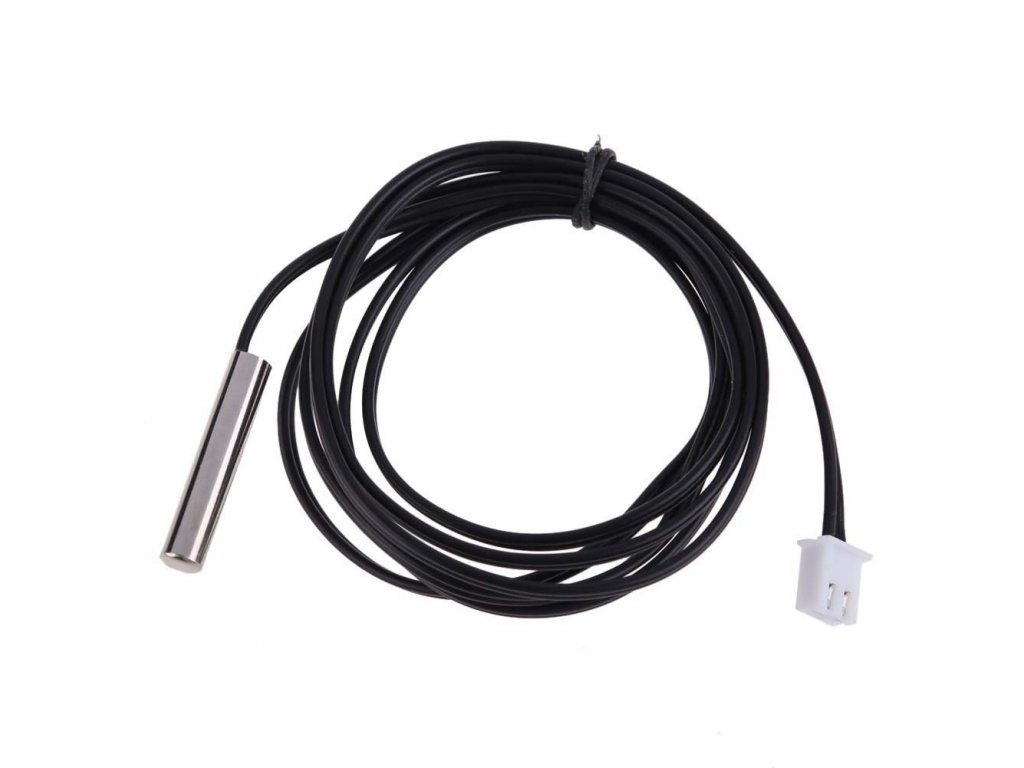

Waterproof NTC Temperature Sensor Thermistor 10K 1% 3950

Product detailed description

This waterproof temperature sensor with an NTC thermistor is the ideal choice for measuring the temperature of liquids, surfaces, or outdoor environments. The probe features a durable enclosure that withstands continuous contact with water, and depending on the chosen variant, the 1, 2, or 3 metre cable allows you to place it exactly where needed. The sensor serves as both a replacement and an expansion probe for W1209 and W1401 series digital thermostats, or can be connected to Arduino, ESP32, or any other platform with an analogue input using a simple voltage divider with a 10 kΩ resistor. The cable is terminated with a JST-XH 2P connector, making the connection a matter of seconds.

Specifications:

• Sensor type: NTC thermistor (resistance decreases as temperature rises)
• Nominal resistance: 10 kΩ at 25 °C
• Resistance tolerance: ±1 %
• B-constant (Beta): 3950 K ±1 % (standard 10K 3950)
• Measuring range: -20 °C to +105 °C
• Dissipation coefficient: approx. 5 mW/°C
• Probe insulation resistance: > 100 MΩ
• Probe protection: waterproof enclosure
• Dimensions:
  • Probe: 5 × 25 mm
• Connector: JST-XH 2P
• Suitable for:
  • Digital thermostat W1401, -9 to 99 °C
  • Digital thermostat W1209 24V, -50 to 110 °C
  • Digital Thermostat W1209 12V - -50 to 110 °C
• Compatibility: Arduino, ESP32, ESP8266, Raspberry Pi Pico and other platforms with an analogue input (ADC)
• Variants (cable length):
  • 1 m
  • 2 m
  • 3 m

Package contents:

• 1× waterproof temperature sensor NTC Thermistor 10K 1% 3950 (according to the chosen variant)

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
