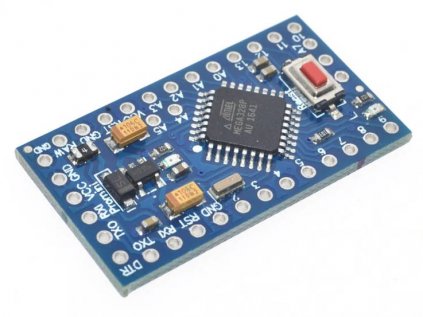

Arduino Pro Mini, ATmega328PB TQFP 5V 16MHz

Code: LA100054B
€3,98 €3,29 excl. VAT
In stock (86 pcs)
Delivery to:
18/07/2025

A clone of the Arduino Pro Mini, one of the smallest development boards with the perfect dimensions and pin layout for various electronic designs.

Detailed information

Free Shipping
Free Shipping
From 100 EUR
30 Days to Return
30 Days to Return
For Registered
30 Days to Return
30 Days to Return
For Registered Customers
Free Shipping
Free Shipping
For orders from 100 EUR
It Doesn't End With Shipping
Customer Care
We handle complaints within 5 days
Quick dispatch
Quick dispatch
Within 24 hours

Product detailed description

A clone of the Arduino Pro Mini, one of the smallest development boards with the perfect dimensions and pin layout for various electronic designs.

The board does not include an integrated programmer and a USB to UART converter is required for programming. On the software side, the board is programmed via the integrated development environment Arduino IDE (don't forget to choose the processor "ATmega328P (5V, 16 MHz)" ), which offers a simple and clear WIRING programming language. ATmega328PB datasheet is available in the "Related files" tab.

This board is suitable for both beginners and advanced students and its versatility makes it suitable for almost any project.

Specifications:

Microcontroller ATmega328PB
CPU frequency 8MHz
Digital I/O 14 (6 of which are PWM)
Analog I/O 8
Buses 1x USART, 1x SPI, 1x I2C
Low power modes Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby
  • 2x 8-bit timer - separate Prescaler + Compare Mode
  • 1x 16-bit timer - separate Prescaler + Compare Mode + Capture Mode
  • 1x programmable Watchdog timer with separate integrated oscillatos
  • 1x analog comparator
  • 1x real time circuit - RTC with separate oscillator
  • Interrupt and Wake-up when changing the level on a pin
  • FLASH 32KB
  • EEPROM 1KB
  • SRAM 2KB
Oscillators, reset and power management
  • Power supply 1.8 - 5.5V
  • Power-on Reset and Programmable Low Voltage Detector (Brown-out)
  • External up to 20MHz oscillator for CPU
  • Internal 8MHz oscillator for CPU
  • Internal oscillator for RTC

Development Board:

  • Reset button
  • Board dimensions: 34mm x 18,5mm
  • Pin spacing: Corresponds to standard 24pin DIP housing - breadboard friendly
  • Input voltage:  5 - 12V or 3.3V (The board is powered via power pins or from the connected USB - UART converter)
  • Output voltage: 3,3V - maximum current output 100mA
  • Crystal: 8MHz
  • Integrated LEDs: Power, (L program controlled)
  • Weight: 11g


Package Contents:

  • 1x Arduino Pro Mini, ATmega328PB TQFP 3.3V 8MHz
  • 1x Set of pin strips

Notes:

  • This product is not a standalone functional unit and may require professional installation.
  • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

Additional parameters

Category: Arduino development boards
Warranty: 2 years
Weight: 0.006 kg
Type: AVR
Logical levels: 5V
I/O pins: 14
PWM pins: 6
ADC pins: 8
Frequency: 16MHz
Flash memory: 32kB
SRAM memory: 2kB
EEPROM memory: 1kB
Connector with battery charger: No
Microcontroller: ATmega328
Converter: No
Bluetooth: No
WiFi: No
5
7x
4
0x
3
0x
2
0x
1
0x
Do not fill out this field:
5
JB Avatar of author | 30/04/2024
Chodí bez problémů.
5
JN Avatar of author | 06/05/2022
Naprostá spokojenost s výrobkem,napřed jsem nevěděl jak desku naprogramovat ale po přečtení ptřebné litaratury jsem ardunio naprogramoval.Všechno funguje jak má a to za dobrou cenu.
5
FV Avatar of author | 19/12/2021
Skvělý poměr cena/výkon.
5
IB Avatar of author | 14/04/2021
Skvělá destička Arduino. Trošku jsem tápal jaký převodník mám pro programování použít, byl mi doporučen převodník 6Pin microUSB TTL UART, CP2102, DTR pin, v tom jsem tápal, po telefonické konzultaci mi bylo vysvětleno. Naprogramování a blikání diody fungovalo okamžitě na první připojení, druhé naprogramování se mi nedařilo a nedařilo. Zjistil jsem že musím spustit programování, přitom držet reset na destičce Arduina a pustit jej až po stuštění programování. Tímto způsobem jsem naprogramoval Arduino pokaždé, malá komplikace za tuto super cenu. Třeba někomu tato informace pomůže. Skvělý produkt za super cenu, nakoupím postupně další.
5
Z Avatar of author | 21/06/2020
Všechny fungují OK.
5
VK Avatar of author | 07/06/2020
Funguje jak má co si víc přát.
5
TH Avatar of author | 08/10/2019
Super
Do not fill out this field:
RK Avatar of author programování-čím? 25/06/2024 18:21
Dobrý den. Máte nějaký převodník přes který by se to dalo programovat? Děkuji.
Reply
KL Avatar of author 25/06/2024 20:08
Zdravím. například https://www.laskakit.cz/laskakit-ch9102-programmer-usb-c--microusb--uart/ nebo https://www.laskakit.cz/prevodnik-6pin-microusb-ttl-uart--cp2102--dtr-pin/
MK Avatar of author Programování 27/03/2024 16:15
Dva dny jsem se pokoušel o naprogramování a nedařilo se. Poté jsem zkusil další dva kusy a z nich se povedl jen jeden. Vyzkoušel jsem 3,3V desku a v pohodě. Pak jsem zkusil znovu desku 5V, ale převodník mi zůstal nastavený na 3,3V a fungovalo to, obě desky.
Reply
JM Avatar of author Stejný problém 12/05/2024 21:29
Děkuju! Dlouho jsem tápal proč mi selhává programování, stačilo přepnout USB převodník na 3,3V a funguje spolehlivě.
JK Avatar of author programování 19/10/2023 00:17
Pozor! Toto Arduino má jiný Signature bytes address než MINI PRO s 328P. Při programování přes ICSP (možná i jiném) je nutno v Arduino IDE v Boards Manager doinstalovat MiniCore a pak vybrat procesor 328PB.
Reply
