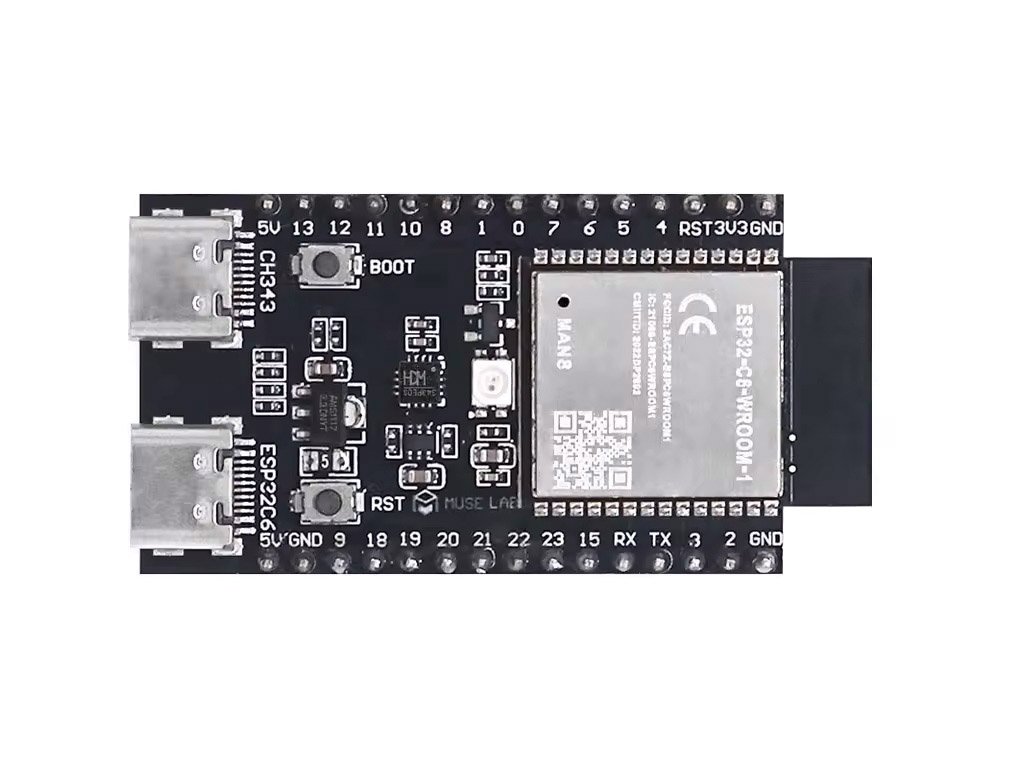

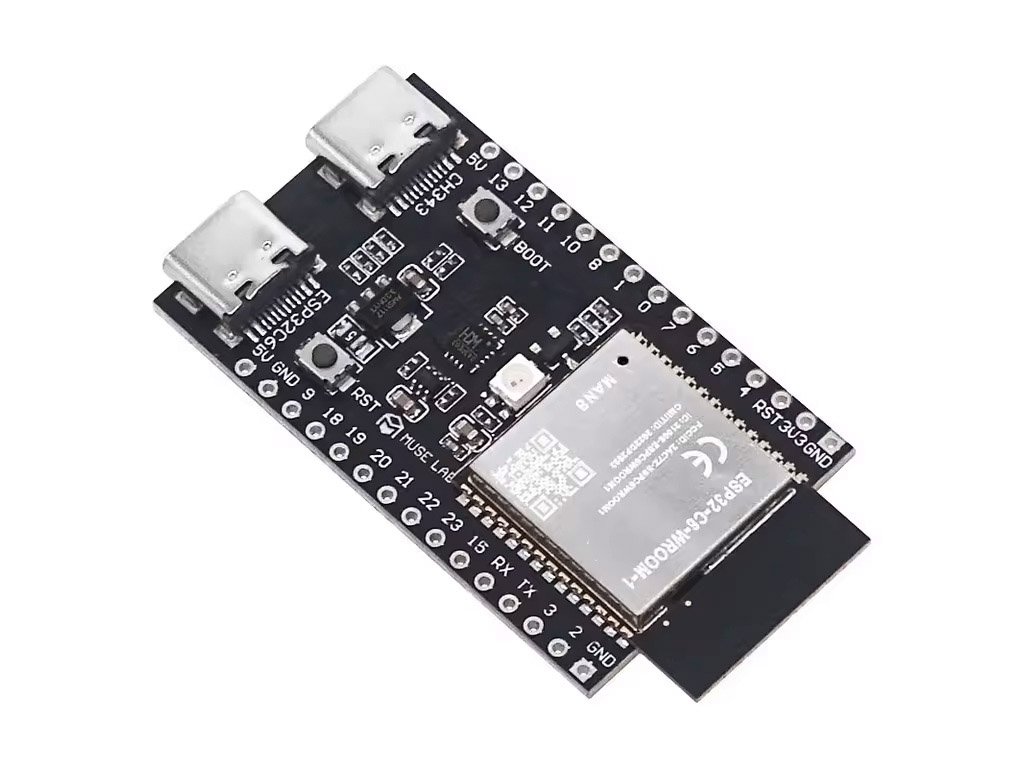

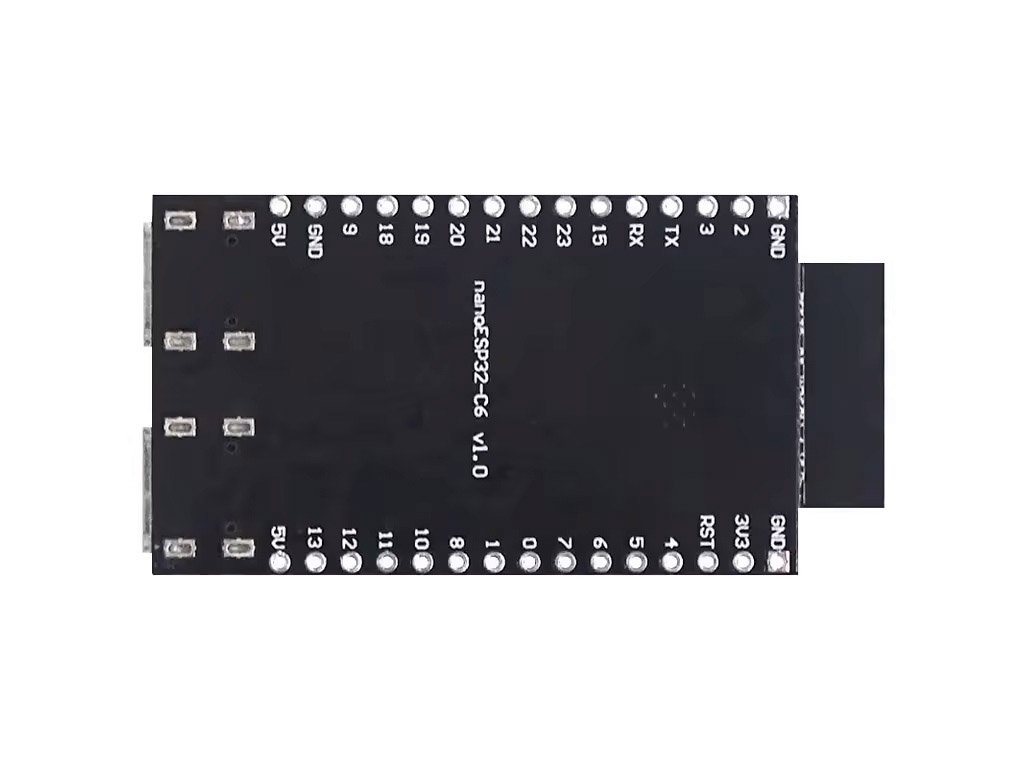

ESP32-C6 16MB Flash WiFi Bluetooth IoT Module

The ESP32-C6 is a powerful and modern wireless IoT module from Espressif, and the first in their range to combine support for Wi-Fi 6 (802.11ax), Bluetooth 5.0 LE and Zigbee / Thread (802.15.4). This particular model with 16MB Flash memory offers higher capacity for more complex applications, such as security systems, smart homes or multi-protocol devices. The RISC-V core architecture ensures efficient operation with low power consumption. Thanks to its small size, it is ideal for use in compact embedded systems.

Specifications:

• Model: ESP32-C6 WiFi Bluetooth IoT Module
• Chip: Espressif ESP32-C6
• Architecture: 32bit RISC-V, up to 160 MHz
• Flash: 16MB
• RAM: 320 kB internal SRAM + 256 kB ROM
• Wi-Fi: IEEE 802.11 b/g/n/ax (Wi-Fi 6, 2.4 GHz only)
• Bluetooth: BLE 5.0
• Zigbee / Thread: 802.15.4 (Zigbee 3.0 and Matter compatible)
• GPIO: Up to 23 available pins (functions: SPI, I2C, UART, PWM, ADC, etc.)
• Power supply: 5-9V DC
• Antenna: Integrated PCB antenna
• Development support: ESP-IDF, Arduino, PlatformIO, Matter SDK
• Dimensions: 52 × 28 mm

Package contents:

• 1× ESP32-C6 WiFi Bluetooth IoT Module with 16MB Flash

Comment:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic characteristics.
• For development, we recommend using official Espressif tools (ESP-IDF, Matter SDK) for full Wi-Fi 6 and Zigbee functionality.
