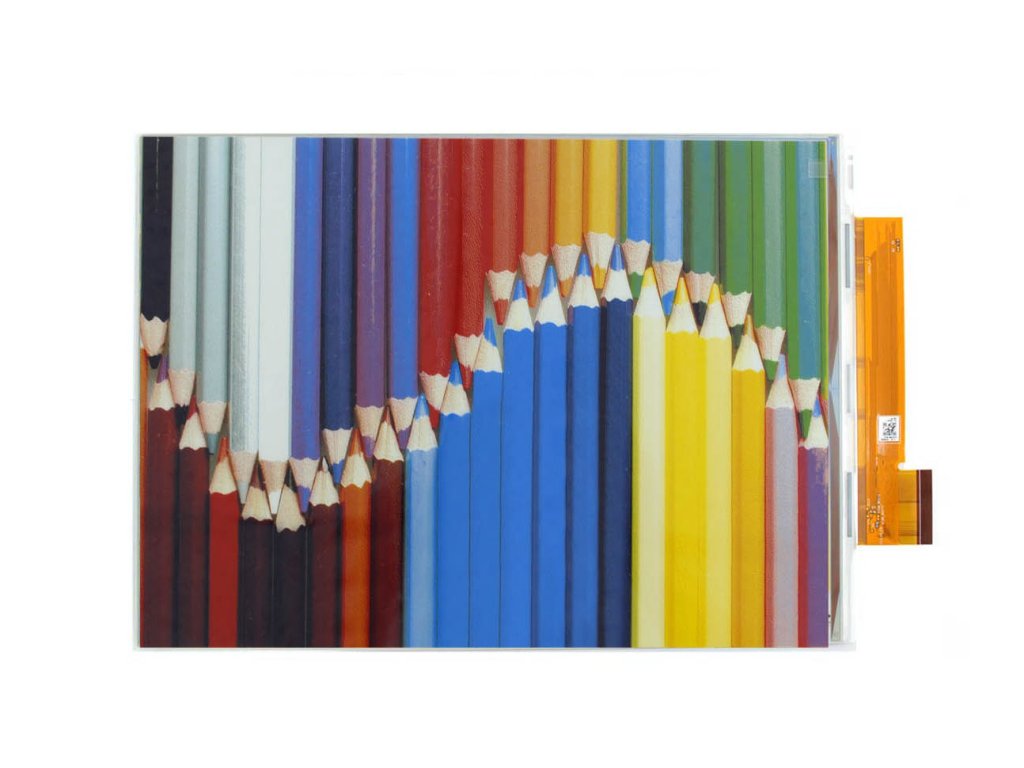

Good Display GDEP133C02 13.3" 1600x1200 QSPI ePaper Colour Display

Product detailed description

The Good Display GDEP133C02 electronic paper display features a 13.3" diagonal, a resolution of 1600×1200 pixels, a QSPI interface and E Ink Spectra 6 technology, which displays six colours – black, white, red, yellow, green and blue. Thanks to its large area, 150 PPI density and a viewing angle of nearly 180°, it is suitable for digital signage and photo frames, information and advertising boards, or meeting room labels. The matte surface reduces glare, ensuring the image remains clearly legible even in direct light. The displayed image lasts indefinitely without power – the display consumes energy only during refreshing, making it ideal for battery-powered devices or solar panels.

To connect via QSPI, you will need the Good Display ESP32-133C02 development board (not included).

E-Ink (or E-Paper) is a so-called electrophoretic display, i.e., a display containing coloured particles in microcapsules dispersed in a thin layer of viscous solution. By applying short pulses, the particles move to the front of the display and the pixel changes colour. The high viscosity of the solution causes the particles to remain in their position practically permanently.

Specifications:

• Model: Good Display GDEP133C02
• Type: ePaper (E Ink Spectra 6), dot matrix
• Diagonal: 13.3"
• Resolution: 1600×1200 pixels (150 PPI)
• Colours: black, white, red, yellow, green, blue
• Interface: QSPI

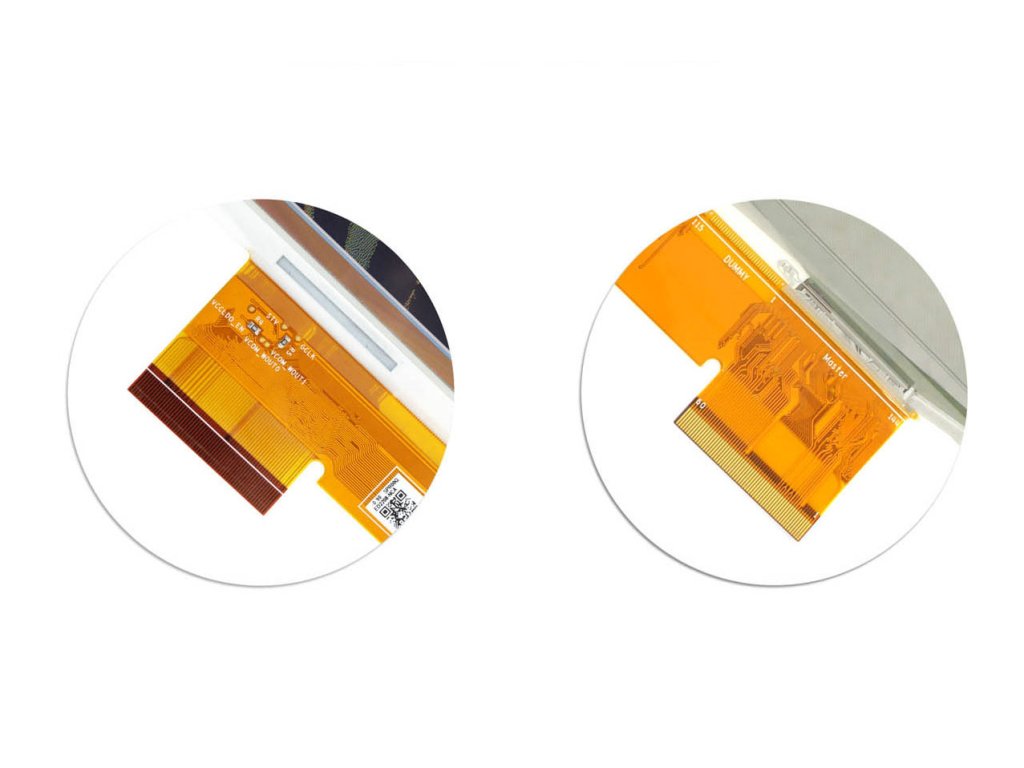

• Connector: 60-pin FPC
• Viewing angle: nearly 180°
• Surface: matte, anti-reflective
• Operating temperature: 0 to 50 °C
• Storage temperature: −25 to 50 °C
• Dimensions:
  • External dimensions: 208.8 × 284.7 × 0.85 mm
  • Active area: 202.8 × 270.4 mm
  • Pixel pitch: 0.169 × 0.169 mm

Package contents:

• 1× Good Display GDEP133C02 13.3" 1600×1200 QSPI ePaper Colour Display

Note:

• If the display is not refreshed at least once every 24 hours, a phenomenon known as "ghosting" (image burn-in) may occur. Therefore, we recommend refreshing the display at least every 24 hours.
• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic characteristics.
