Good Display GDP1248RW1 12.48" 1304x984 ePaper red display WiFi

Product detailed description

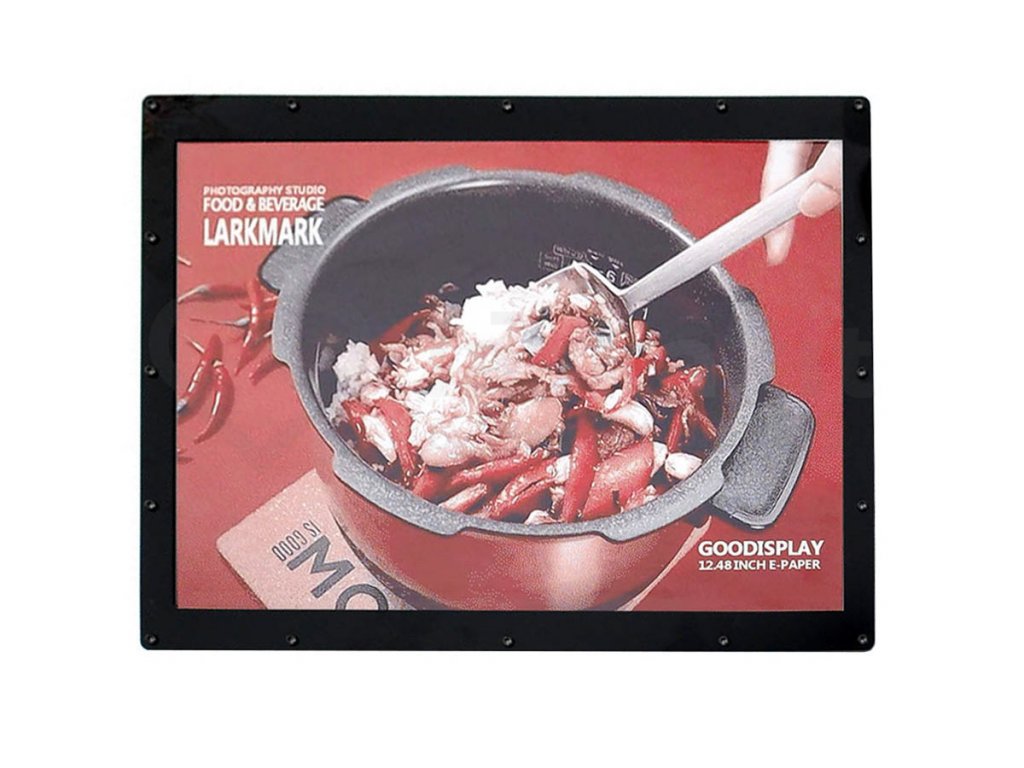

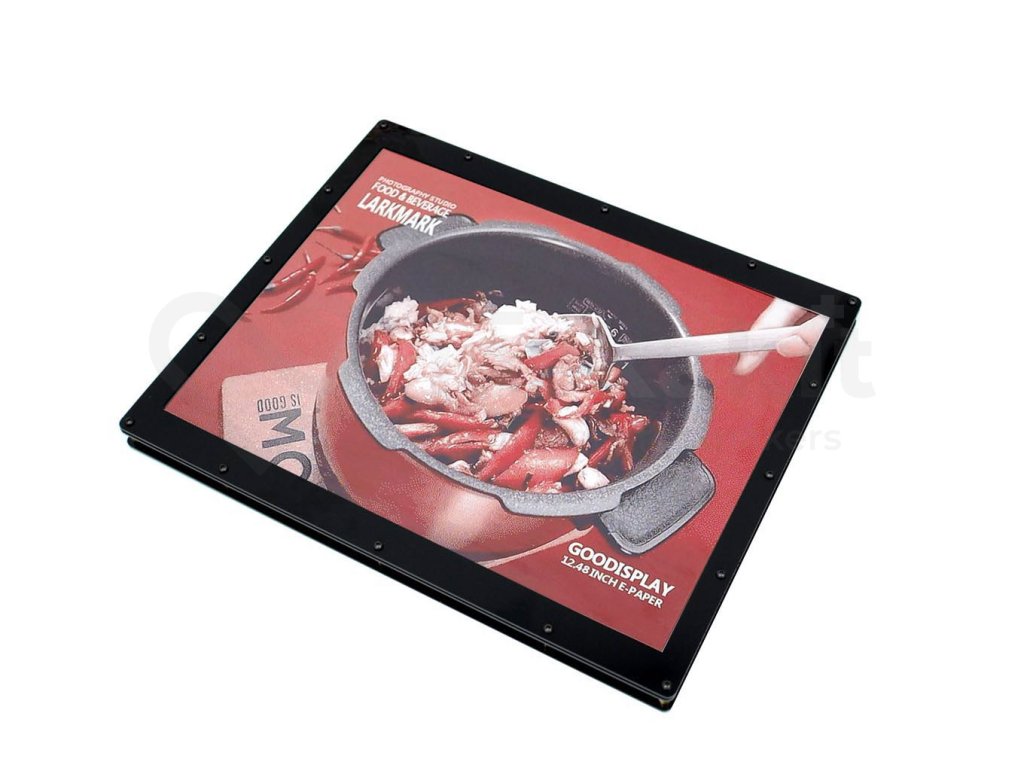

This is a 12.48 inch electronic paper display with 1304x984 resolution with WiFi and the ability to display black and white red images, logos, icons.

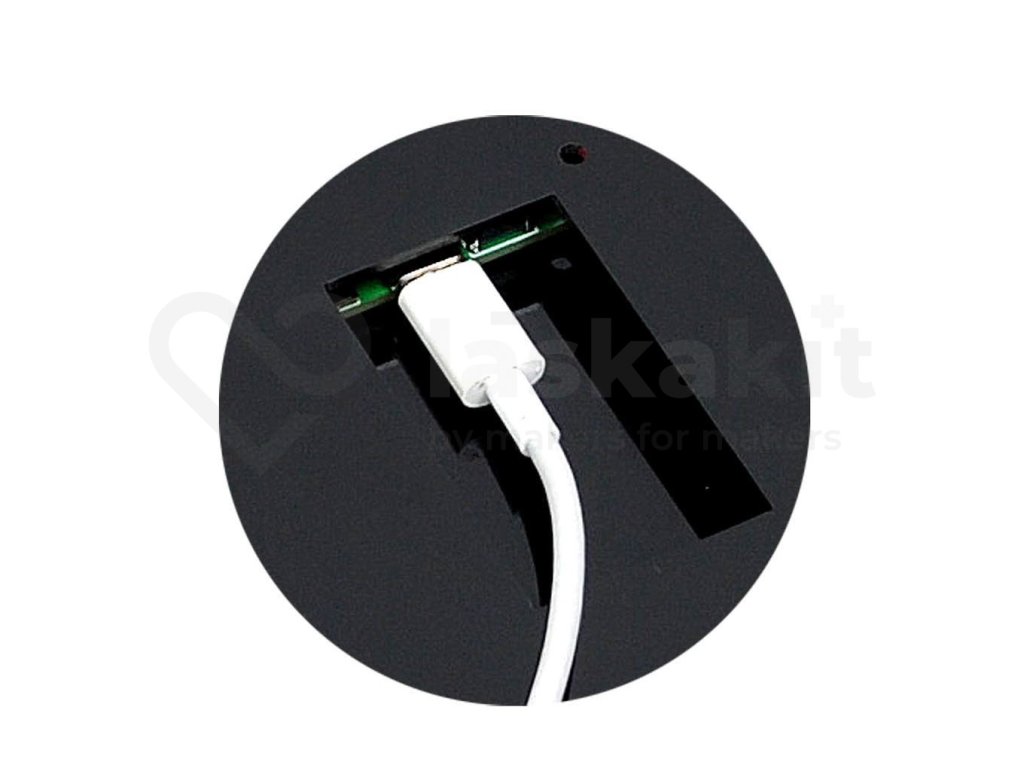

To ensure a better user experience for 12.48 inch E-Paper, Good Display specially launched this GDP1248RW1 module, which is powered by USB-C port and supports firmware updates. Through the ImageToWiFi software, the display screen can be remotely controlled and the online status of the module can be monitored in real time. The module supports one-click updating of displayed data and can be widely used in billboards, price tags, visitor welcome signs and other areas.

E-Ink (or E-Paper) is a so-called electrophoretic display, i.e. a display containing white particles in microcapsules dispersed in a thin layer of dark viscous solution. By applying a short impulse, these white particles will move, possibly tilting towards the front side of the display, which causes the given pixel to appear white. By applying an impulse of opposite polarity, the given pixel appears black. High viscosity of the solution causes micro-particles to remain in their position without change practically permanently.

If the display does not refresh every 24 hours, it may lead to a phenomenon known as "Ghosting" or "Image Sticking". In case of use, it is recommended to refresh the display every 24 hours.

Specifications:

Pinout of used boards:

• SCK: 0
• MOSI: 4
• CS_M1: 15
• CS_S1:32
• CS_M2: 33
• CS_S2: 2
• DC1: 27
• DC2: 14
• RST1: 12
• RST2: 13
• BUSY_M1: 39
• BUSY_S1: 35
• BUSY_M2: 4
• BUSY_S2: 34

Included in delivery:

• 1pc Good Display GDP1248RW1 12.48" 1304x984 ePaper red display WiFi

Remark:

• The display bezel may be scuffed, it is not a defective item.
• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
