GUITION JC8012P4A1C ESP32-P4 + C6 Development module with 10.1" 800x1280 display

Product detailed description

GUITION JC8012P4A1C is a 10.1" development panel built on a pair of ESP32-P4 and ESP32-C6 chips. It combines a powerful dual-core RISC-V processor, Wi-Fi 6 with Bluetooth 5, a large 800×1280 IPS display with capacitive touch, a camera, an audio section with two microphones, and an extensive array of connectors into a single all-in-one module. Thanks to its large display area, it is suitable for wall-mounted HMI panels, smart home controllers, industrial terminals, and graphical applications using the LVGL library.

The panel comes pre-programmed with a demo application from the factory – simply connect the power supply and it is ready to run. Press the button once to power it on, and hold it for 15 seconds to power it off. Ready-to-use libraries and example programs are available for both Arduino IDE and ESP-IDF, allowing you to launch even complex projects surprisingly quickly.

Specifications:

• Model: GUITION JC8012P4A1C (Board JC8012P4A1)
• MCU – Main Unit: ESP32-P4, Dual-Core RISC-V, clock frequency up to 400 MHz, FPU and AI instruction extensions
• Wireless Connectivity: ESP32-C6 connected via ESP-Hosted – 2.4GHz Wi-Fi 6, Bluetooth 5 (LE), 802.15.4 (Thread), connector for external antenna
• Memory:
  • PSRAM: 32 MB
  • Flash: 16 MB
  • Internal memory: 768 kB HP L2 RAM + 32 kB LP SRAM + 128 kB HP ROM
  • External storage: TF card slot (microSD)
• Display:
  • Diagonal: 10.1" TFT
  • Type: IPS
  • Resolution: 800 × 1280 px (portrait)
  • Color depth: 24bit RGB, 16.7 million colors
  • Display Driver: JD9365
  • Touch: capacitive
  • Active area: 216.58 × 135.36 mm
• Camera: video camera module on camera interface (FPC)
• Multimedia: hardware H.264 encoding and JPEG decoding
• Audio: two integrated microphones, speaker connector
• Power Supply:
  • Supply Voltage: 5 V DC (via USB-C)
  • Current consumption: approx. 700 mA
  • Battery: connector for Li-ion cell
  • RTC Backup: coin cell battery holder for real-time clock retention
  • Power Button: single press to power on, hold for 15 s to power off

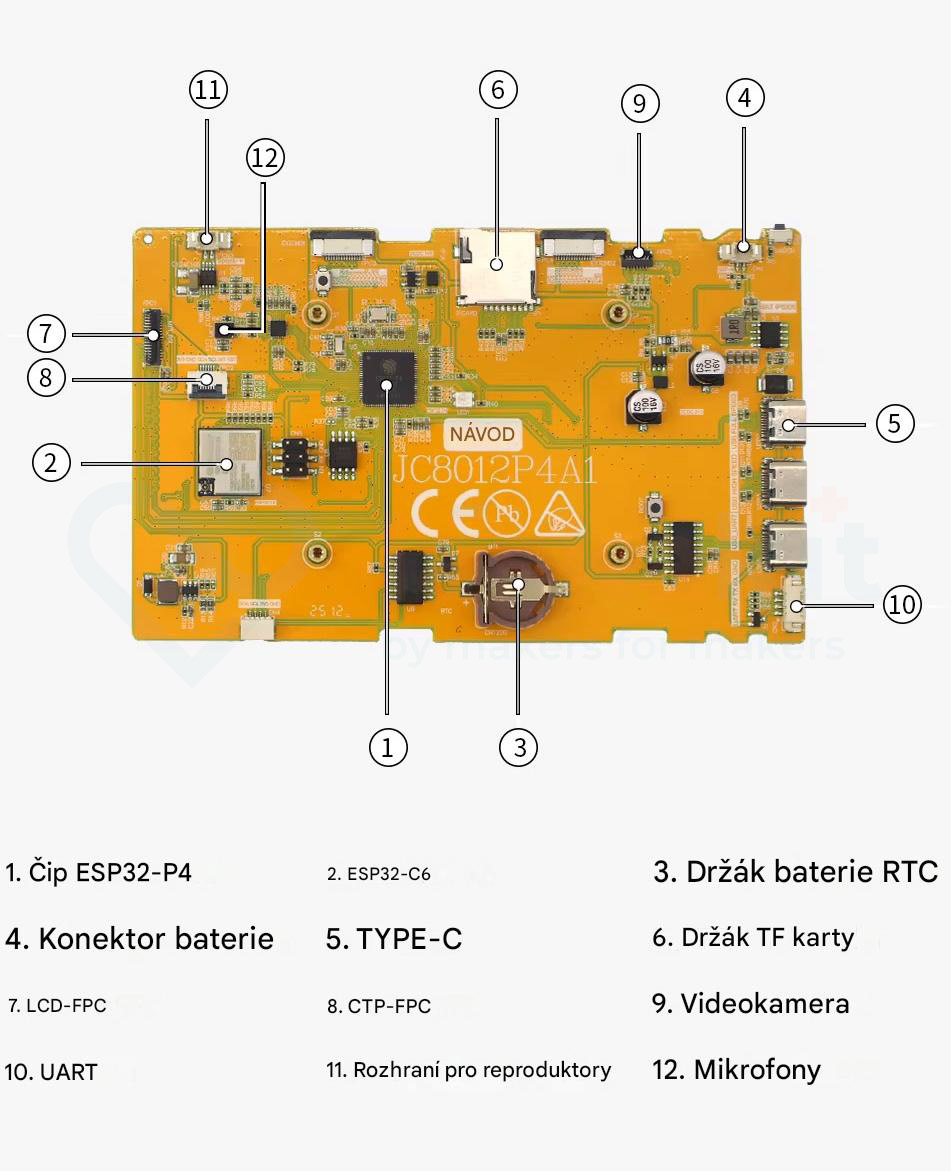

• Connectors and Interfaces:
  • USB-C: power supply, programming, and serial output
  • UART: connector for serial communication
  • TF Card Slot: microSD
  • Battery connector: for Li-ion cell
  • Speaker connector
  • Camera Interface: FPC connector
  • LCD-FPC and CTP-FPC: display and touch layer connection
• Dimensions:
  • Module: 242.8 × 158.7 mm
• Weight: approx. 550 g
• Operating Temperature: -20 °C to +70 °C
• Storage temperature: -30 °C to +80 °C
• Supported development environments: Arduino IDE, ESP-IDF, MicroPython, Guition
• GUI Support: LVGL library (version 8.3 or higher recommended), SquareLine Studio
• Pre-loaded firmware: built-in demonstration programs

Package contents:

• 1× GUITION JC8012P4A1C ESP32-P4 + C6 Development Module with 10.1" 800x1280 Display

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
